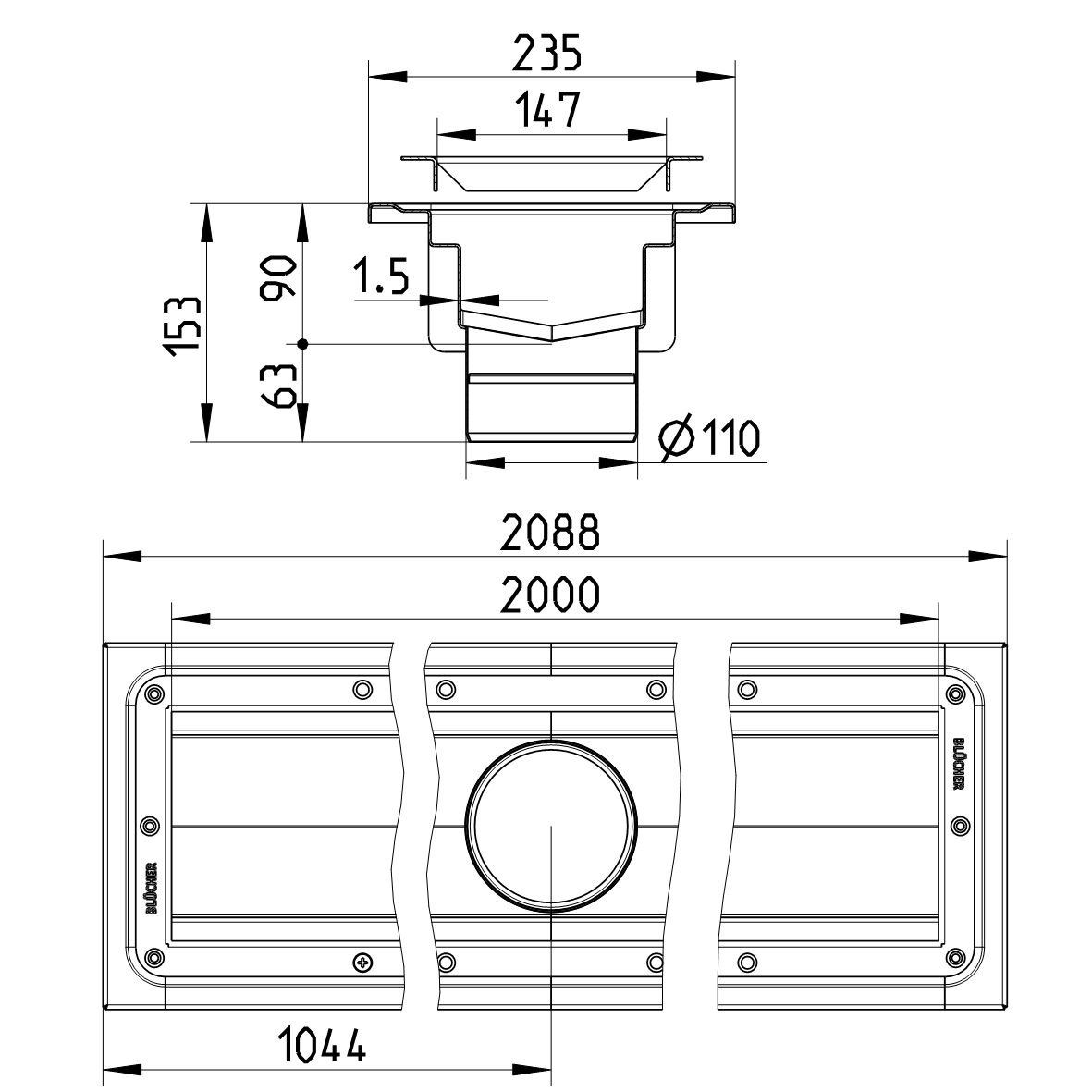

CHANNEL 150x2000 CENTER OUTLET - (672CH020-10BA)
Part Of the Series: Channel-Vinyl
Type no.: 672CH020-10BA
EAN no.: 5705499130164
NRF no.: 3397095
Size: 150x2000
CHANNEL 150x2000 CENTER OUTLET
-Floor: vinyl
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Vinyl |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 152 |
Outlet Box | No |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |
Size (Inch) | 5⅞x78¾ |
Size (mm) | 150x2000 |
Weight (kg) | 12,76 |
Weight (lbs) | 28,13 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia NO - PS3079-21 US - NSF DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products US - NSF/ANSI/3-A 14159-1-Meat and Poultry Lloyds Register LR22419510TA RU - 0212321 Drains-21 ABS - 23-2329630-PDA
