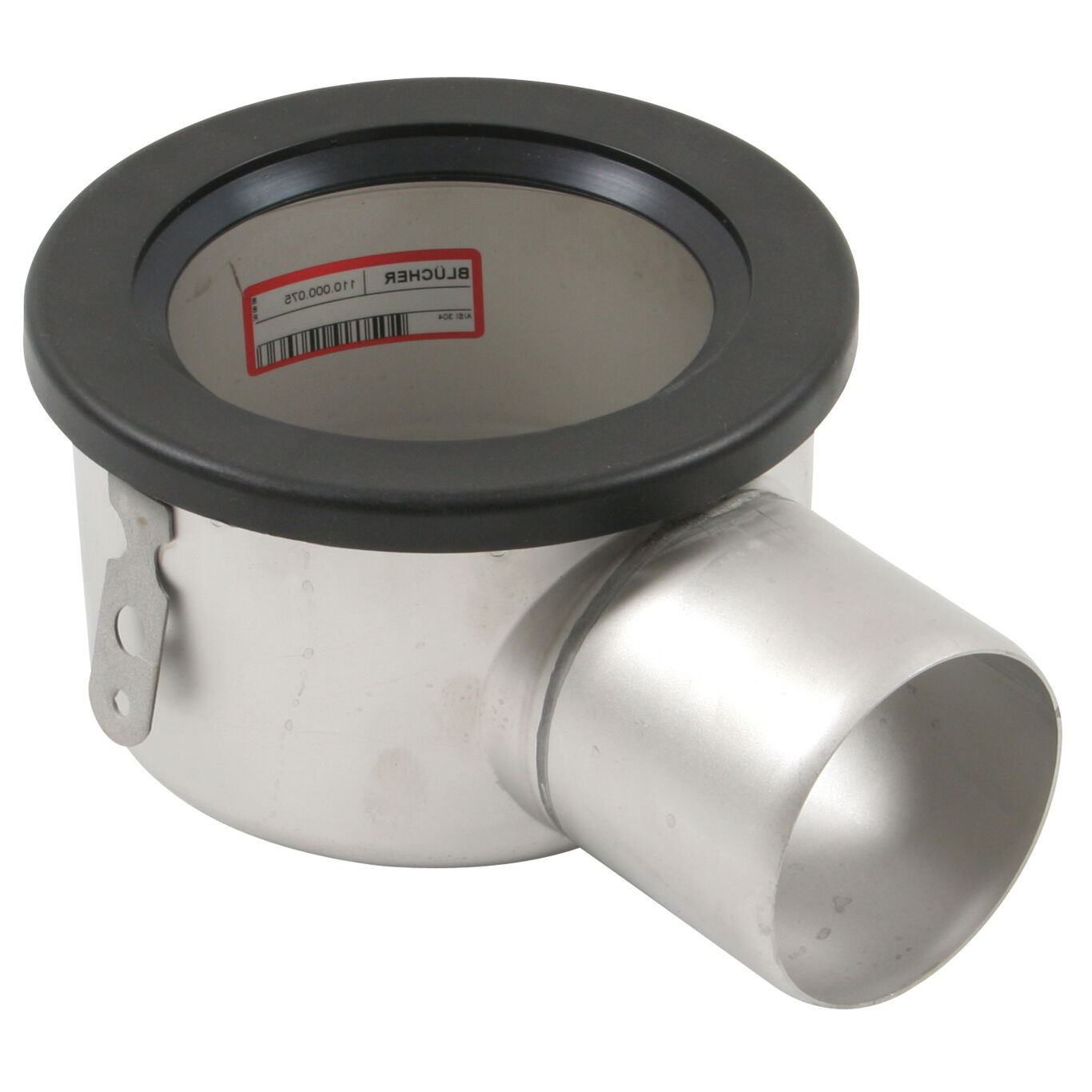

LOWER PART - (110.000.075)
×
![]()
Part Of the Series: Lower part-110
Type no.: 110.000.075
EAN no.: 5705499107036
RSK no.: 7121867
NRF no.: 3396344
LVI no.: 3303751

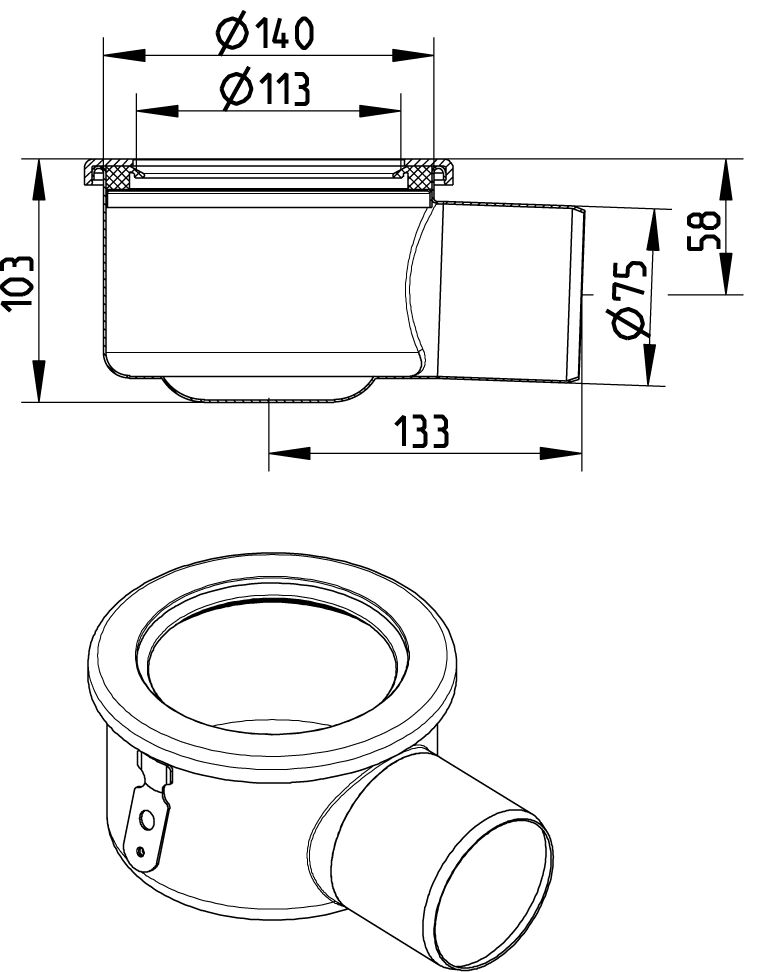

LOWER PART
-No membrane flange
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic|Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 103 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Weight (kg) | 1,12 |
| Weight (lbs) | 2,47 |
-
Downloads
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Channels
- Installation heights - Lower parts combined with Upper Parts with Rectangular Top - Kitchen Channels
- Installation heights - Lower parts combined with Upper Parts with Square or Circular Top with 200-300mm Frame size
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
