UPPER PART CIRCLE - (250.300.000)
×
![]()
Part Of the Series: Upper part-Vinyl-155
Type no.: 250.300.000
EAN no.: 5705499107012
VVS no.: 153612710
RSK no.: 7122074
Size: Ø155

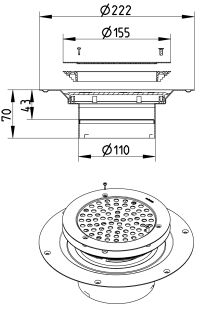

UPPER PART CIRCLE
-With supporting ring for water trap
-Floor: vinyl
-Grating: Ø155mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 70 |
| Number of Screw Holes | 3 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Shape | Round |
| Size (Inch) | Ø6⅛ |
| Size (mm) | Ø155 |
| Weight (kg) | 0,55 |
| Weight (lbs) | 1,21 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
