INTERMEDIATE SECTION - (145.300.110)
×
![]()
Part Of the Series: Intermediate section
Type no.: 145.300.110
EAN no.: 5705499107197

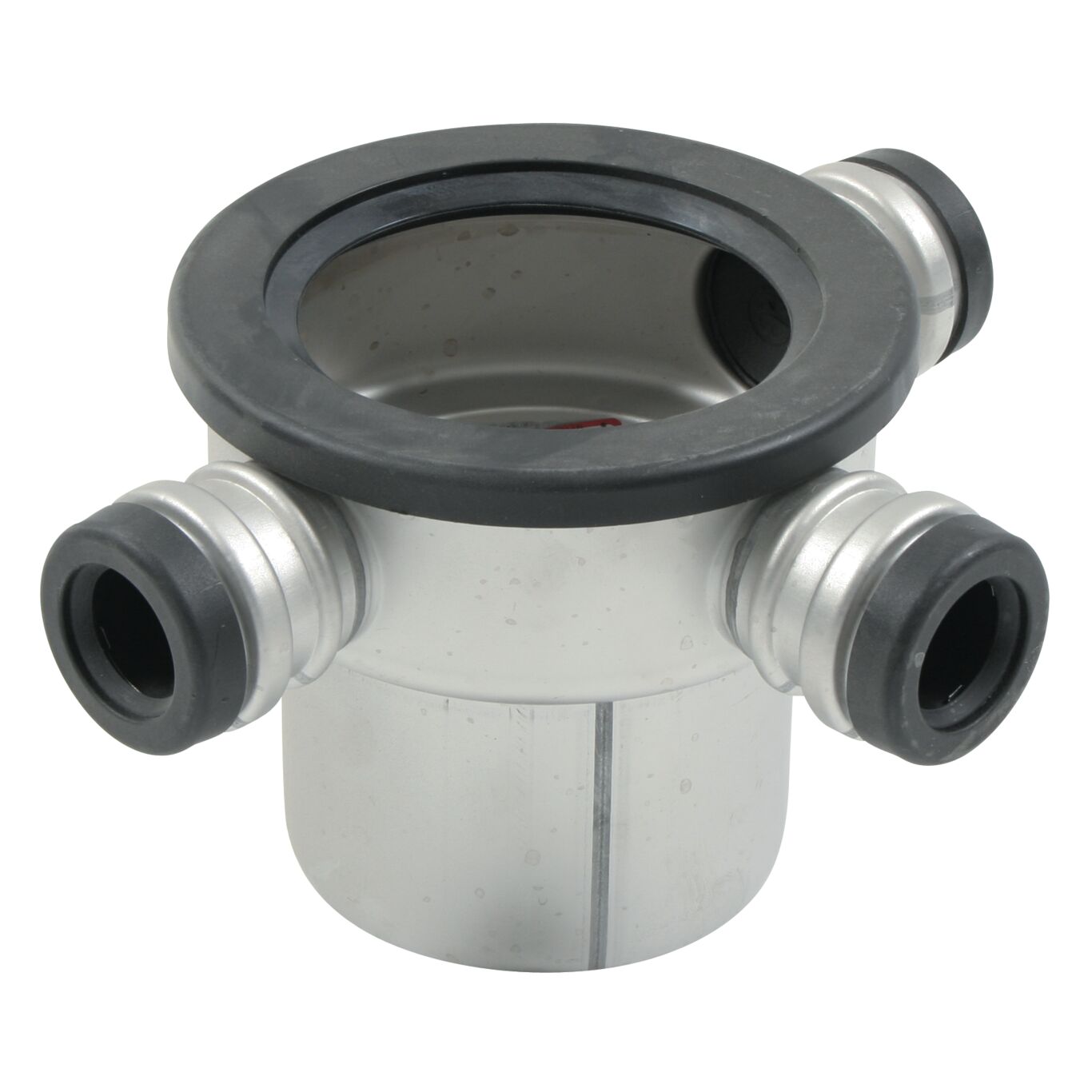

INTERMEDIATE SECTION
-With side inlets
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |

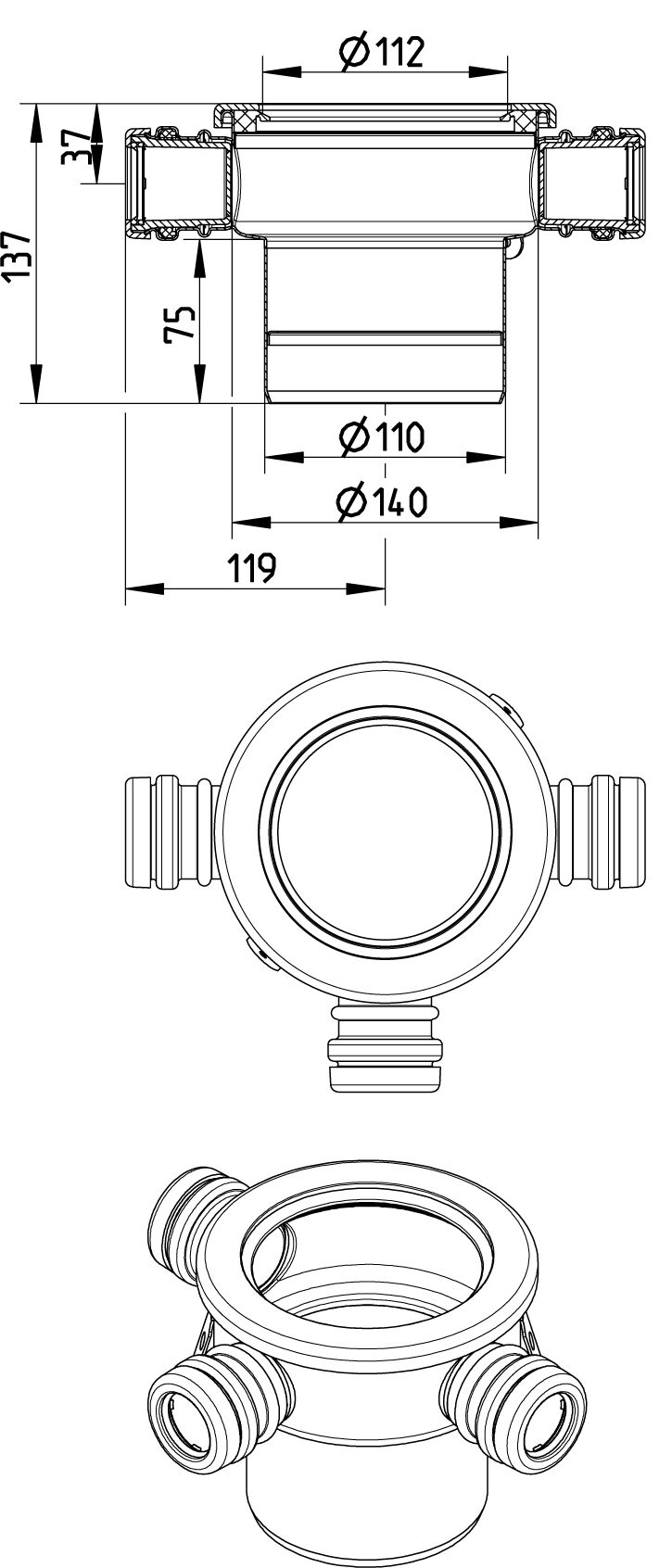

| Minimum Height (mm) | 137 |
| Number of Inlets | 3 (Ø32/40mm) |
| Number of inlets (Inch) | 3 (Ø1¼"/1½") |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Weight (kg) | 1,00 |
| Weight (lbs) | 2,2 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
