REMOVABLE WATER TRAP - (502.052.110)
×
![]()
Part Of the Series: Water trap-110
Type no.: 502.052.110
EAN no.: 5705499105582
VVS no.: 153415526
RSK no.: 7119277
NRF no.: 3394756
LVI no.: 3304013

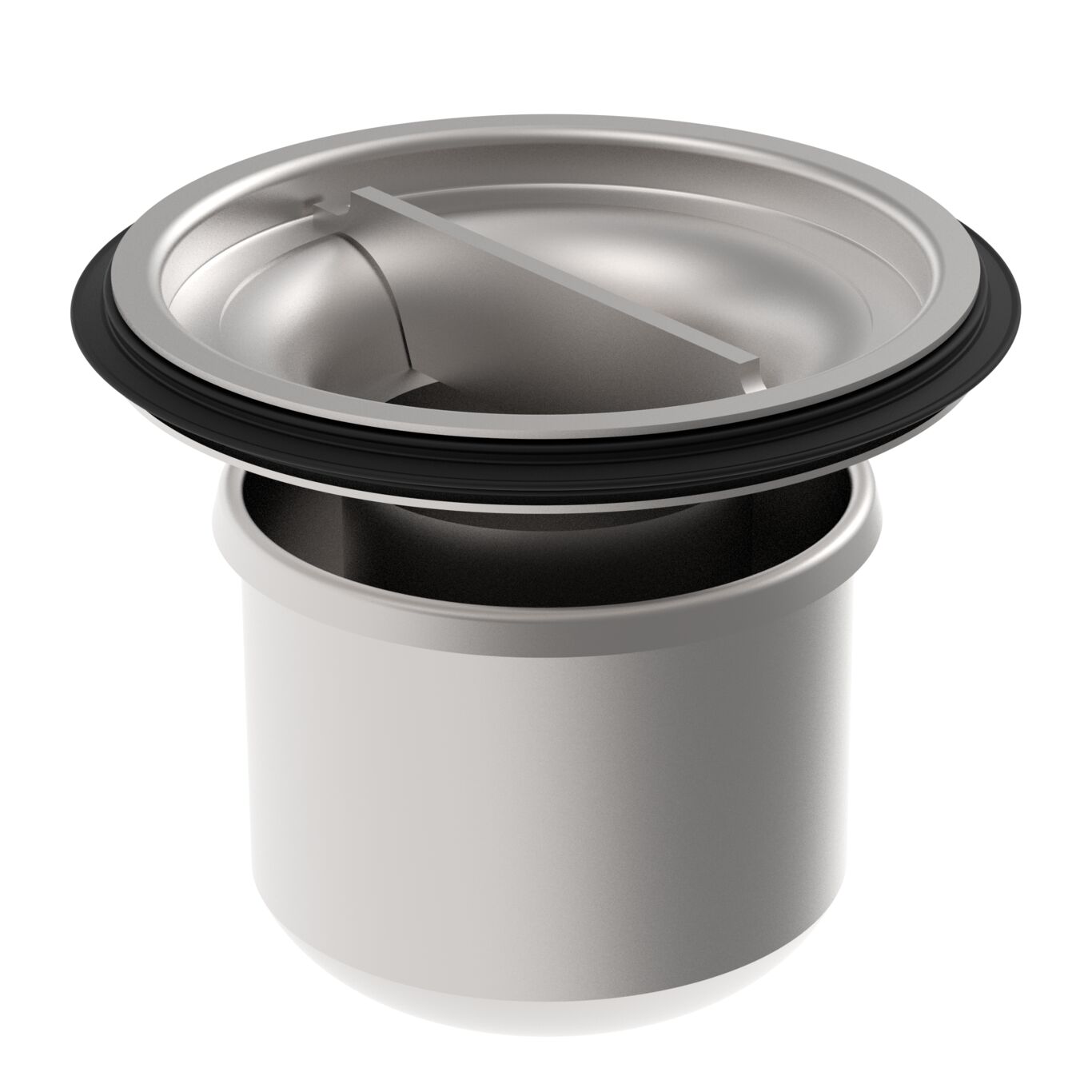

REMOVABLE WATER TRAP

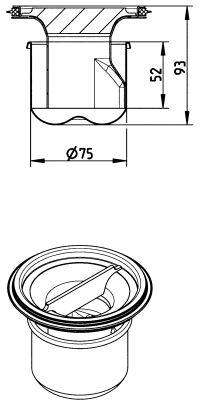

-Water seal height = 52mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic|Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 1.3 |
| Minimum Height (mm) | 93 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 108 |
| Water Seal Height (mm) | 52 |
| Weight (kg) | 0,33 |
| Weight (lbs) | 0,73 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe
TÜRK LOYDU - 25041616077231247 RINA -MAC320524XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products DE - TÜV Rheinland - R 60178467 0001
