LINEA GRATING CHANNEL - (697.671.150.99 S)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.671.150.99 S
EAN no.: 5705499001792
VVS no.: 221812805
Size: 150x1000

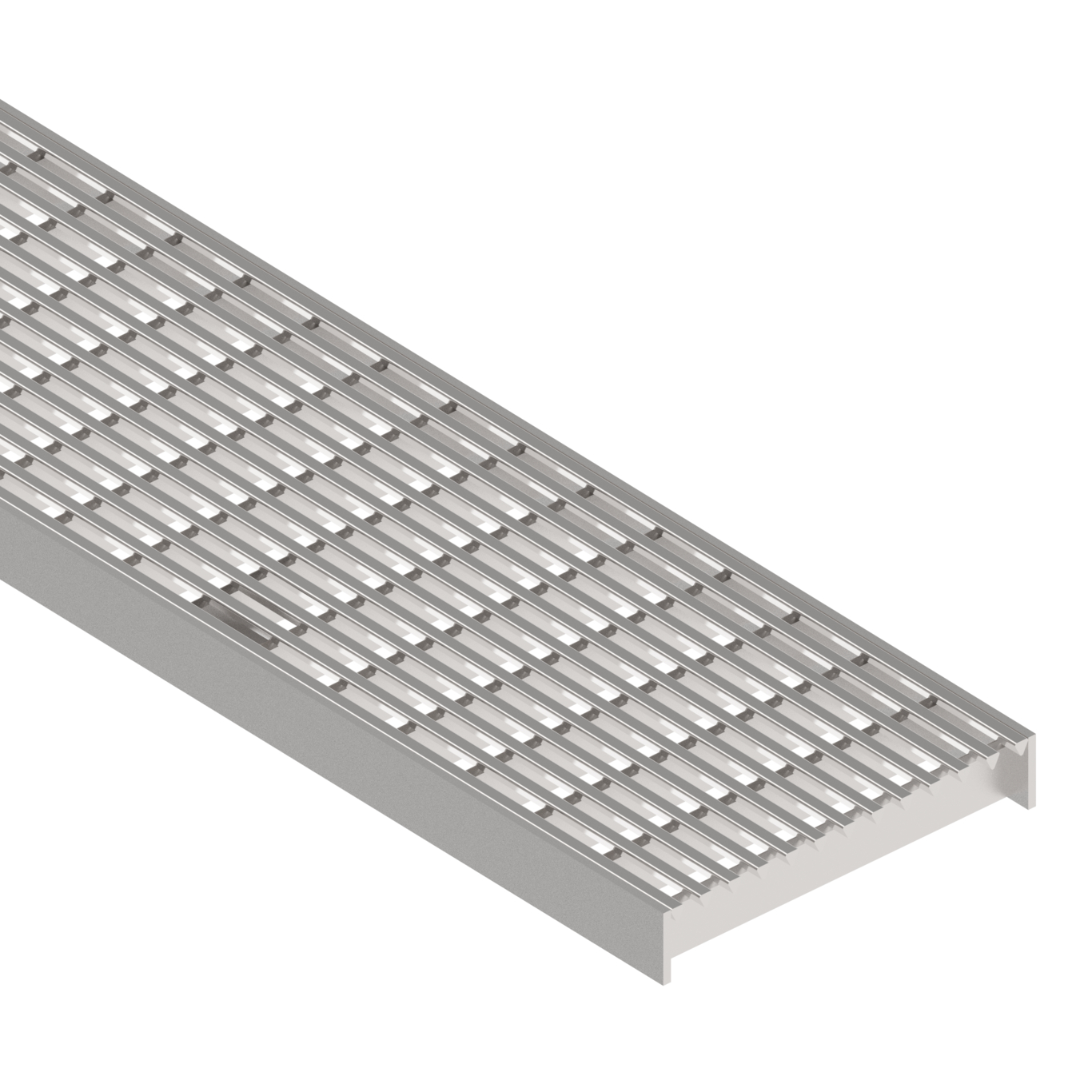

LINEA GRATING CHANNEL
-With screw lock

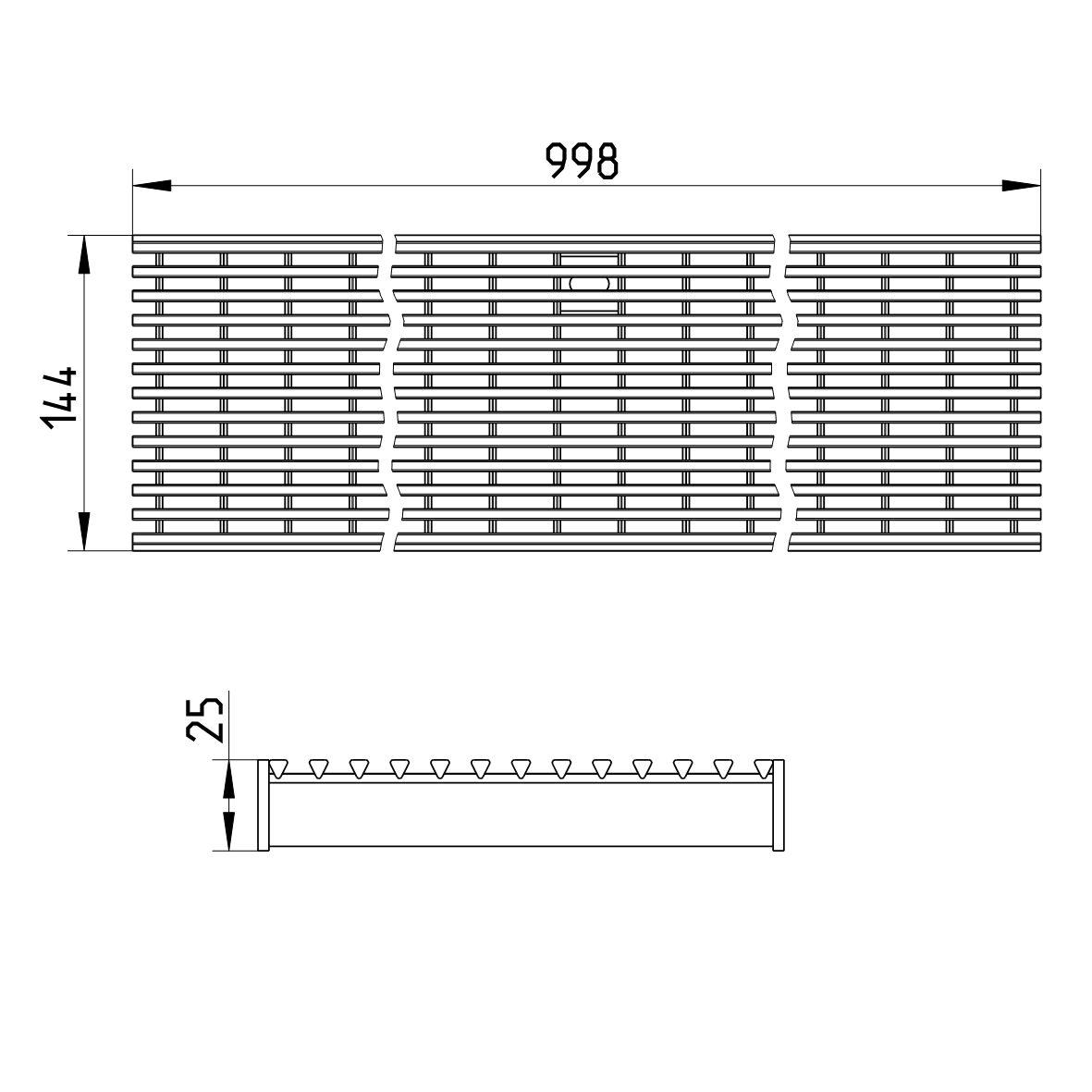

-Grating: 144x998mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | R50 |
| Load Class EN1433 | B125 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 25 |
| ProductFamily | LINEA |
| Shape | Rectangular |
| Size (mm) | 150x1000 |
| Weight (kg) | 5,05 |
| Weight (lbs) | 2.2 |
-
