SHOWER GRATING CHANNEL - (697.015.150.99)
×
![]()
Part Of the Series: Grating-Channel-150
Type no.: 697.015.150.99
EAN no.: 5705499117394
RSK no.: 7122091
NRF no.: 3397155
LVI no.: 3304962
Size: 150x1000
SHOWER GRATING CHANNEL

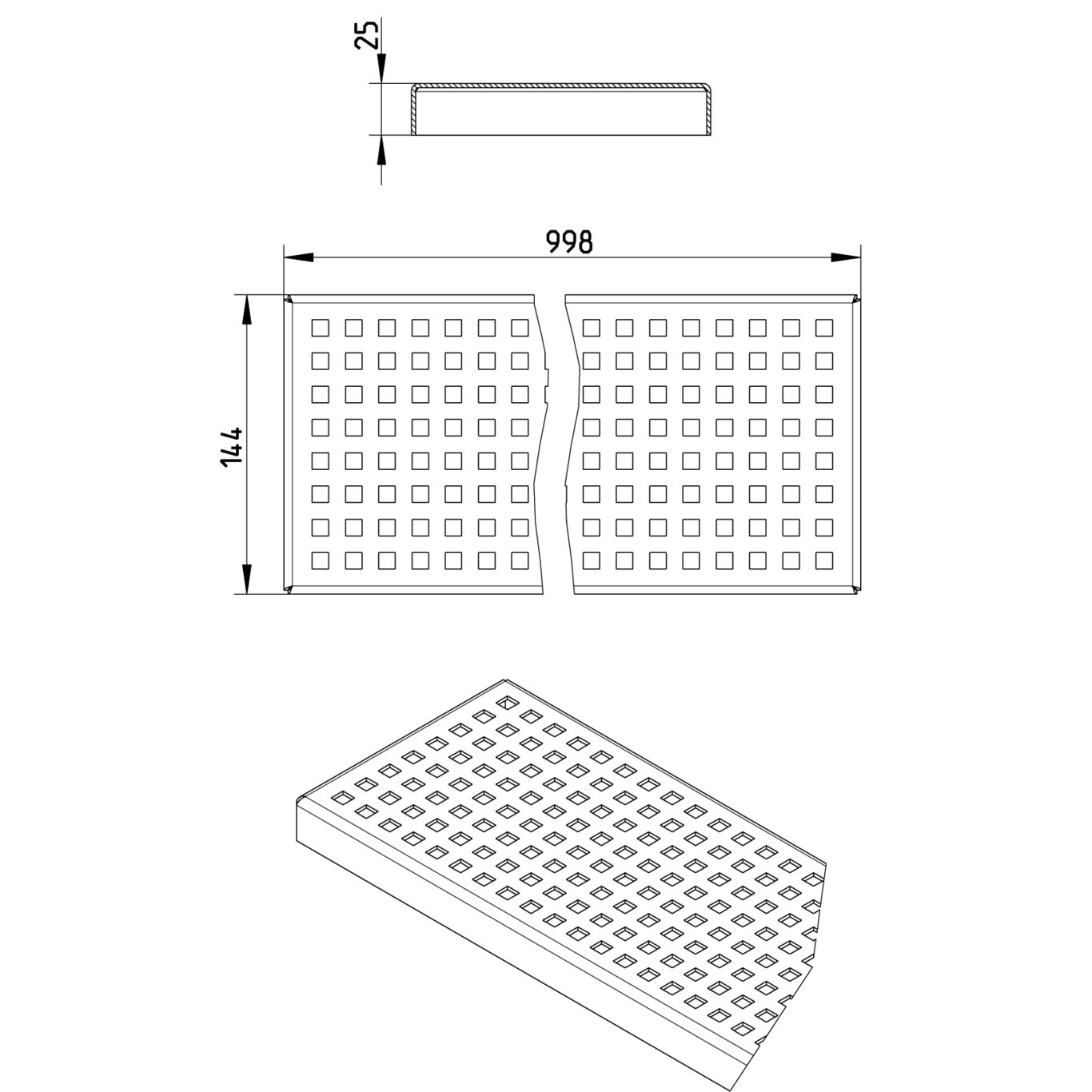

-Grating: 144x998mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load class ASME A112.6.3 (lbs) | Light Duty (601) |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 (500) |
| Load class EN1253(lbs) | K3 (1102) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R10 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 5⅞x39⅜ |
| Size (mm) | 150x1000 |
| Weight (kg) | 2,55 |
| Weight (lbs) | 5,62 |
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
