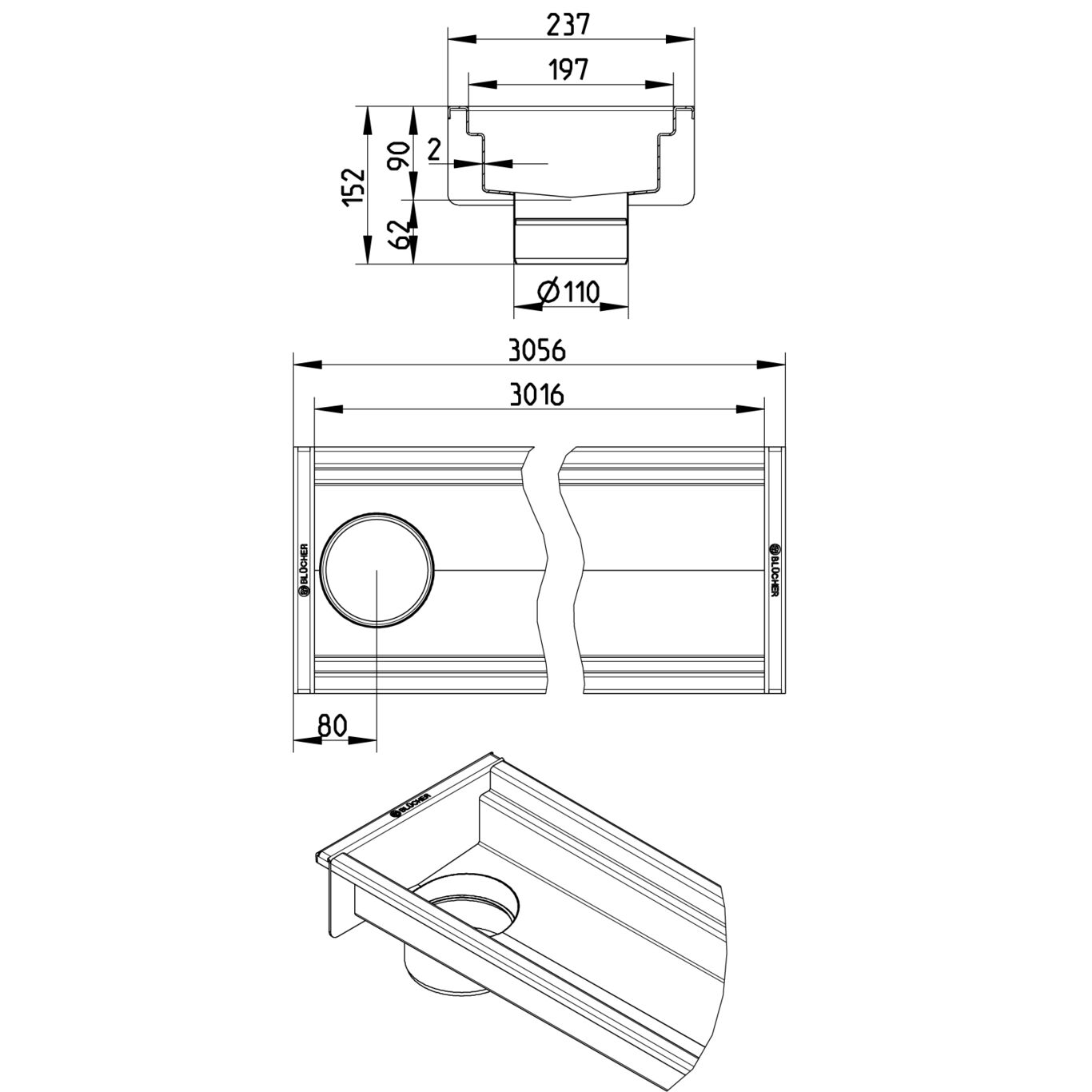

CHANNEL 200x3000 END OUTLET - (670DH030-00BA)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670DH030-00BA
EAN no.: 5705499129588
Size: 200x3000
CHANNEL 200x3000 END OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 152 |
| Outlet Box | No |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (Inch) | 7⅞x118⅛ |
| Size (mm) | 200x3000 |
| Weight (kg) | 19,38 |
| Weight (lbs) | 42,73 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Australasia
BLÜCHER® Channels EPD
US - NSF
TÜRK LOYDU - 25041616077231247
AUS - WMKT00204 - 24 ABS - 23-2329630-PDA RINA -MAC320524XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA_02 KR - Type Approval CPH42135-PE001
