MESH GRATING CHANNEL - (696.223.194.99)

Part Of the Series: Grating-Channel-200

Type no.: 696.223.194.99

EAN no.: 5705499124491

NRF no.: 3397142

LVI no.: 3304986

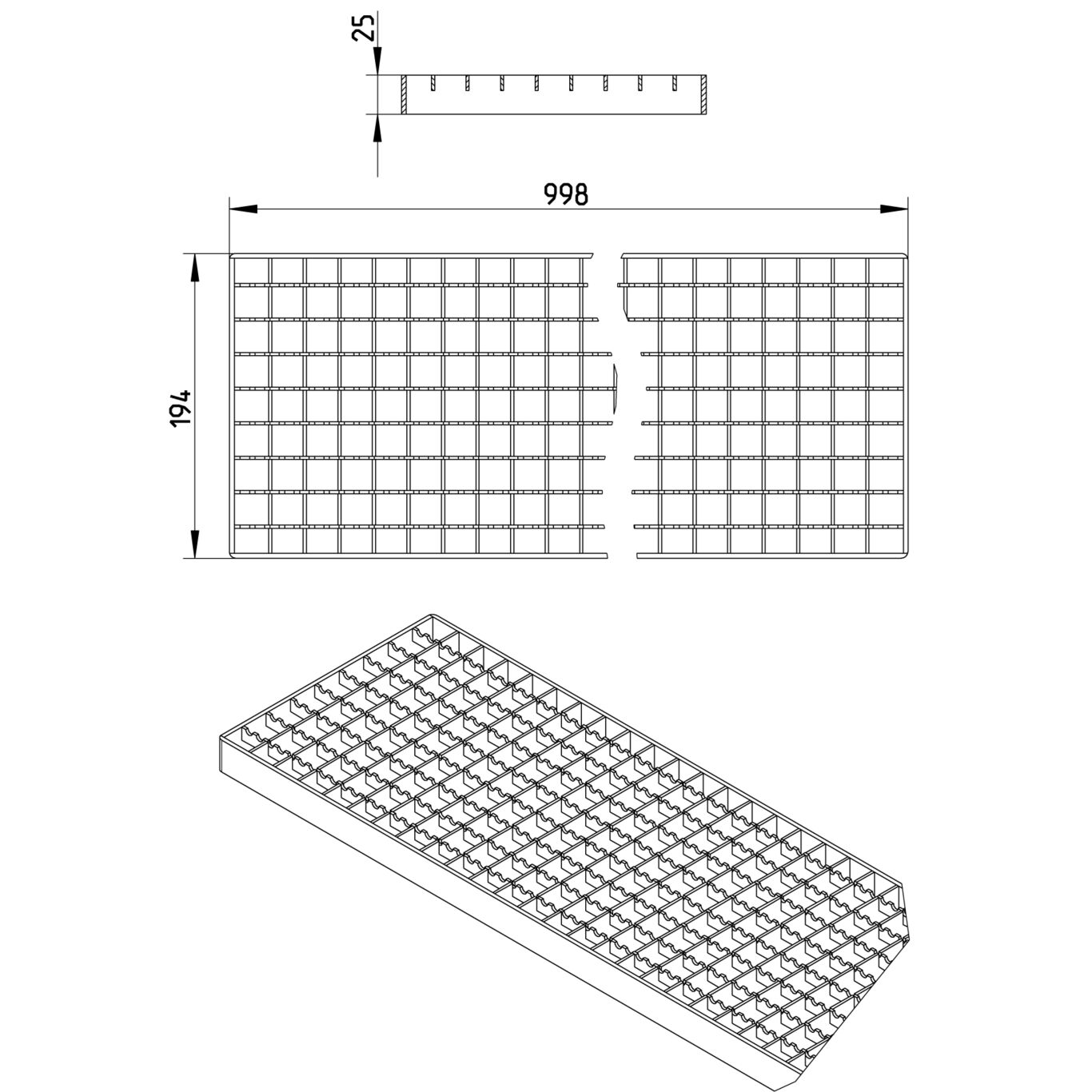

Size: 200x1000

Product Specification
Field of Application Industrial
Load class ASME A112.6.3 (lbs) Medium Duty (4,332)
Load Class EN1253 R50
Load Class EN1253 (kg) R50 (4000)
Load class EN1253(lbs) R50 (8818)
Load Class EN1433 A15
Load Class EN1433 (kg) A15 (4.000)
Load class EN1433(lbs) A15 (8818)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 25
Non-slip R12
Number of Screws 0
Shape Rectangular
Size (Inch) 7⅞x39⅜
Size (mm) 200x1000
Weight (kg) 4,64
Weight (lbs) 10,23
