LADDER GRATING CHANNEL, NON-TILT - (697.127.200.50)
×
![]()
Part Of the Series: Grating-Channel-200
Type no.: 697.127.200.50
EAN no.: 5705499128734
NRF no.: 3397169
Size: 200x500

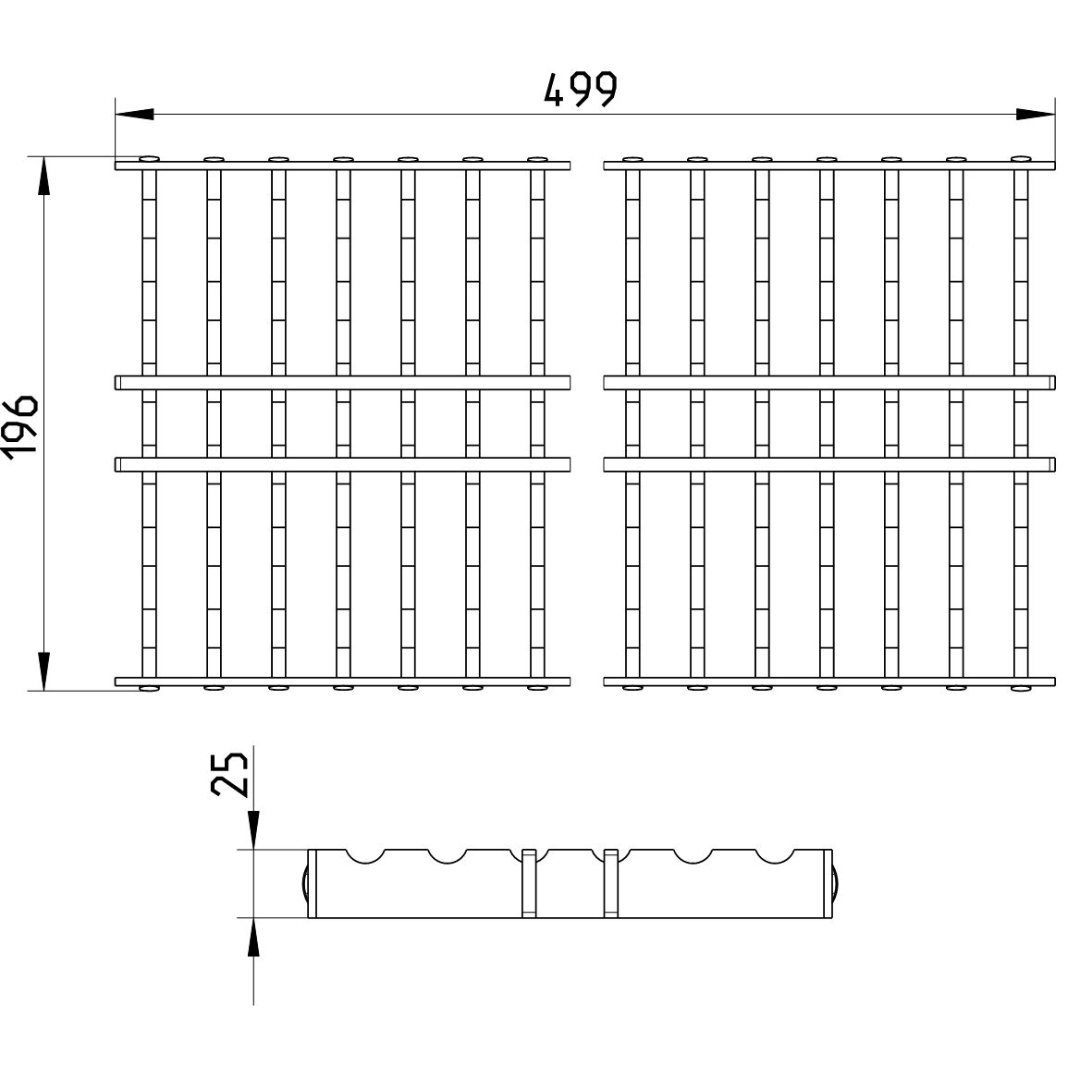

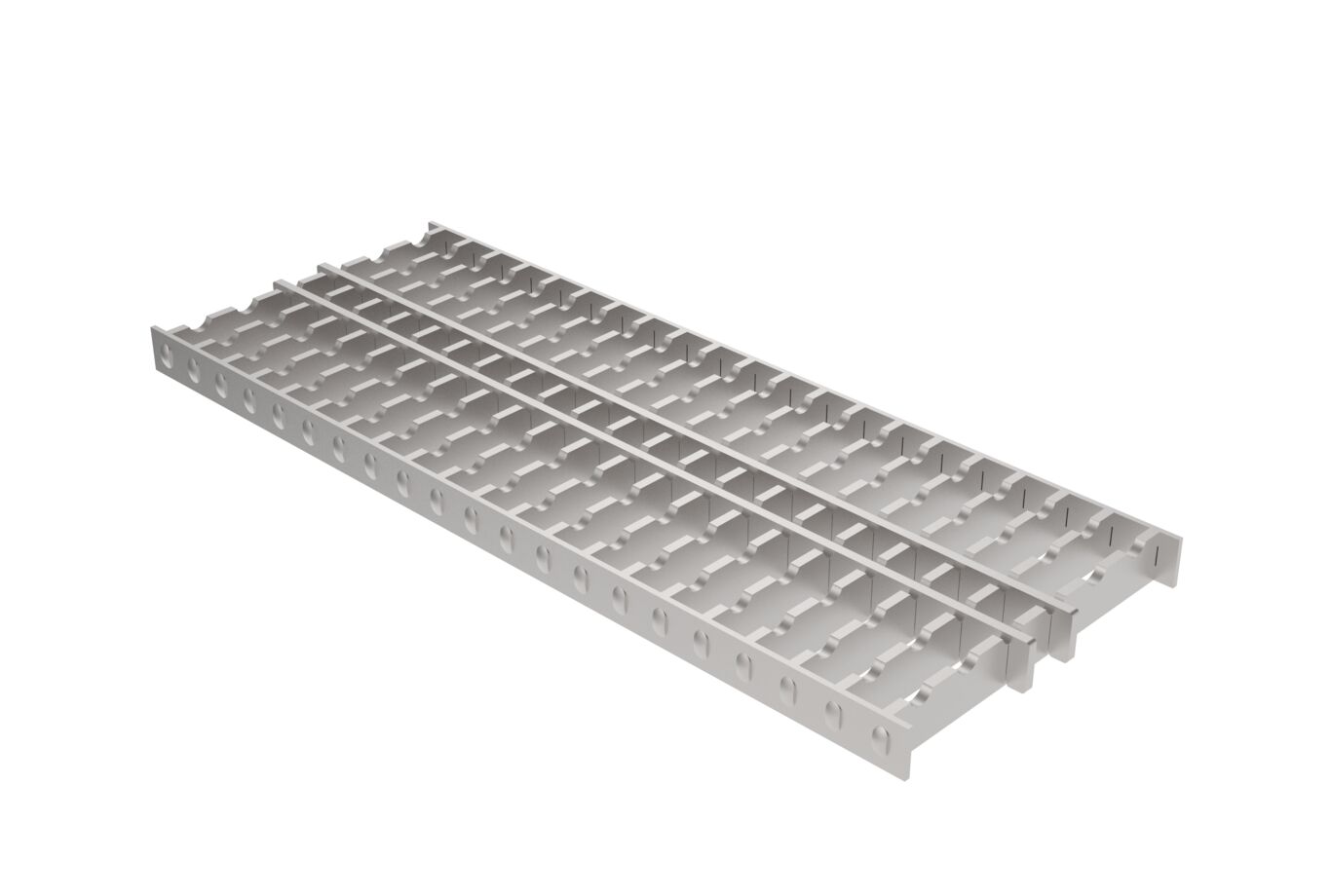

LADDER GRATING CHANNEL, NON-TILT
-25mm height
-Grating: 195x499mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | M125 |
| Load Class EN1253 (kg) | M125 (8333) |
| Load class EN1253(lbs) | M125 (18371) |
| Load Class EN1433 | B125 |
| Load Class EN1433 (kg) | B125 (12.000) |
| Load class EN1433(lbs) | B125 (26455) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 25 |
| Non-slip | R11 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (Inch) | 7⅞x19⅝ |
| Size (mm) | 200x500 |
| Weight (kg) | 5,02 |
| Weight (lbs) | 11,02 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
