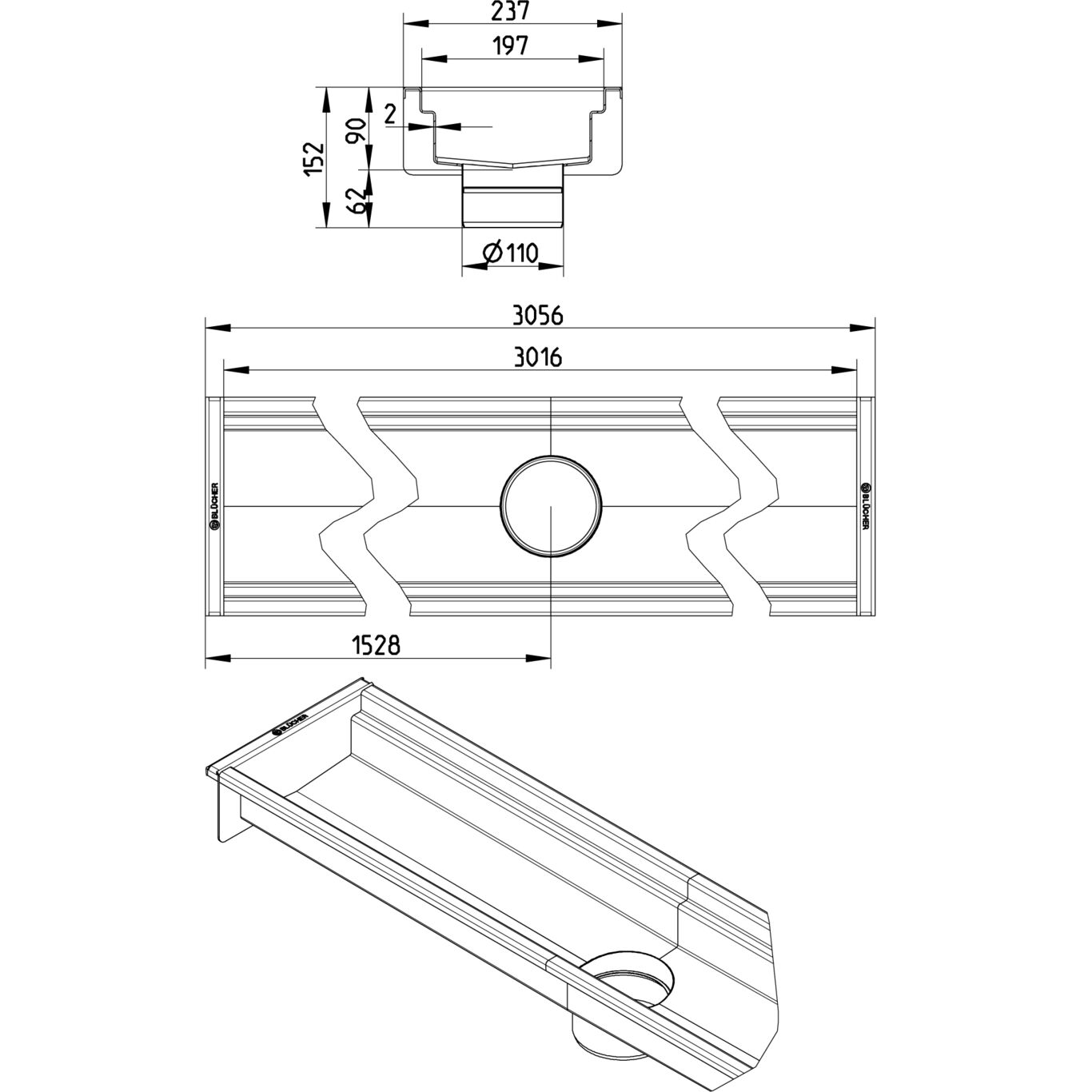

CHANNEL 200x3000 CENTER OUTLET - (670DH030-15BA)

Part Of the Series: Channel-No membrane

Type no.: 670DH030-15BA

EAN no.: 5705499129595

Size: 200x3000

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 152
Outlet Box No
Outlet dia. (Inch) 4
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (Inch) 7⅞x118⅛
Size (mm) 200x3000
Weight (kg) 20,22
Weight (lbs) 44,58
