CHANNEL 200x2000 END OUTLET - (674DH020-00BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674DH020-00BA

EAN no.: 5705499130973

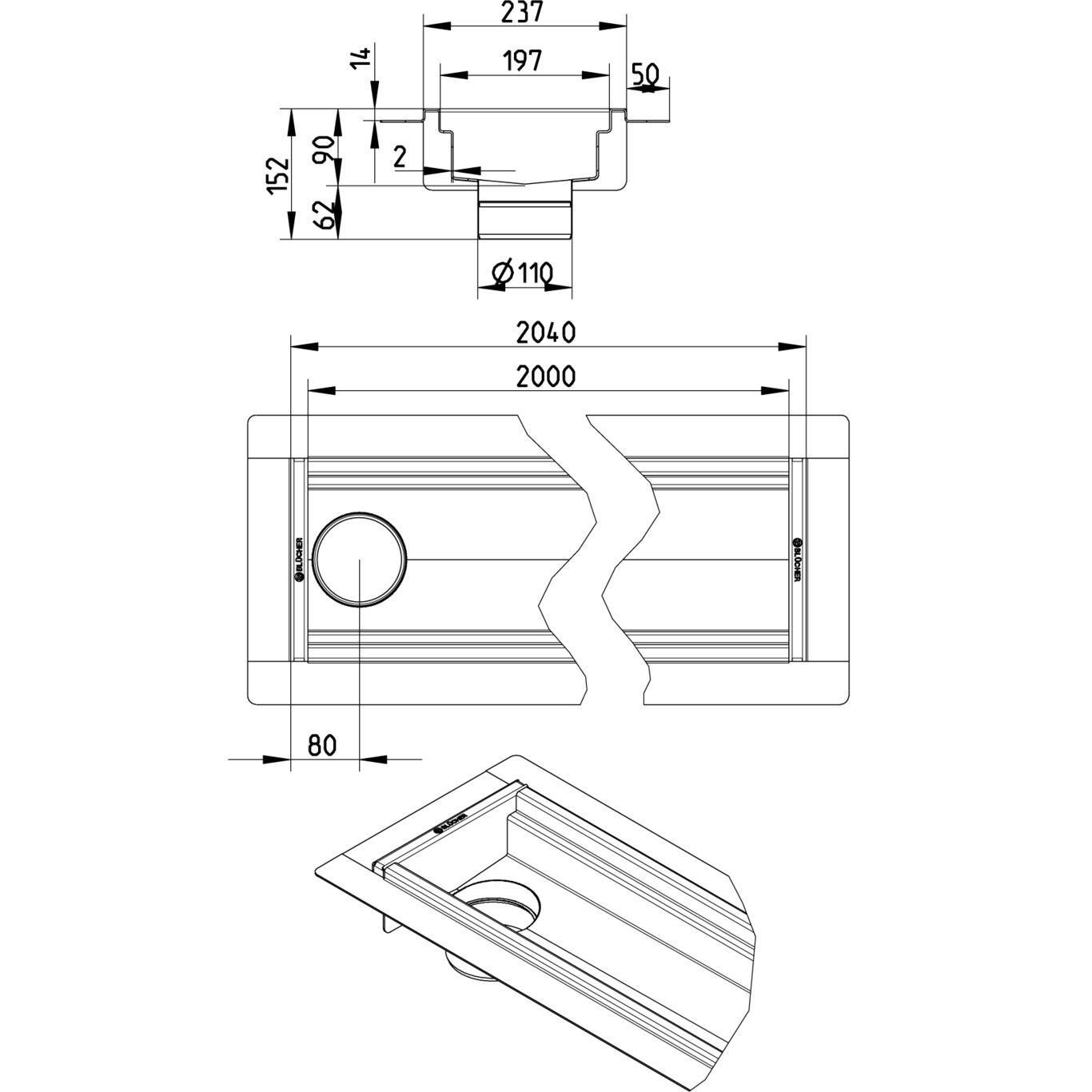

Size: 200x2000

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 152
Outlet Box No
Outlet dia. (Inch) 4
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (Inch) 7⅞x78¾
Size (mm) 200x2000
Weight (kg) 17,83
Weight (lbs) 39,31
