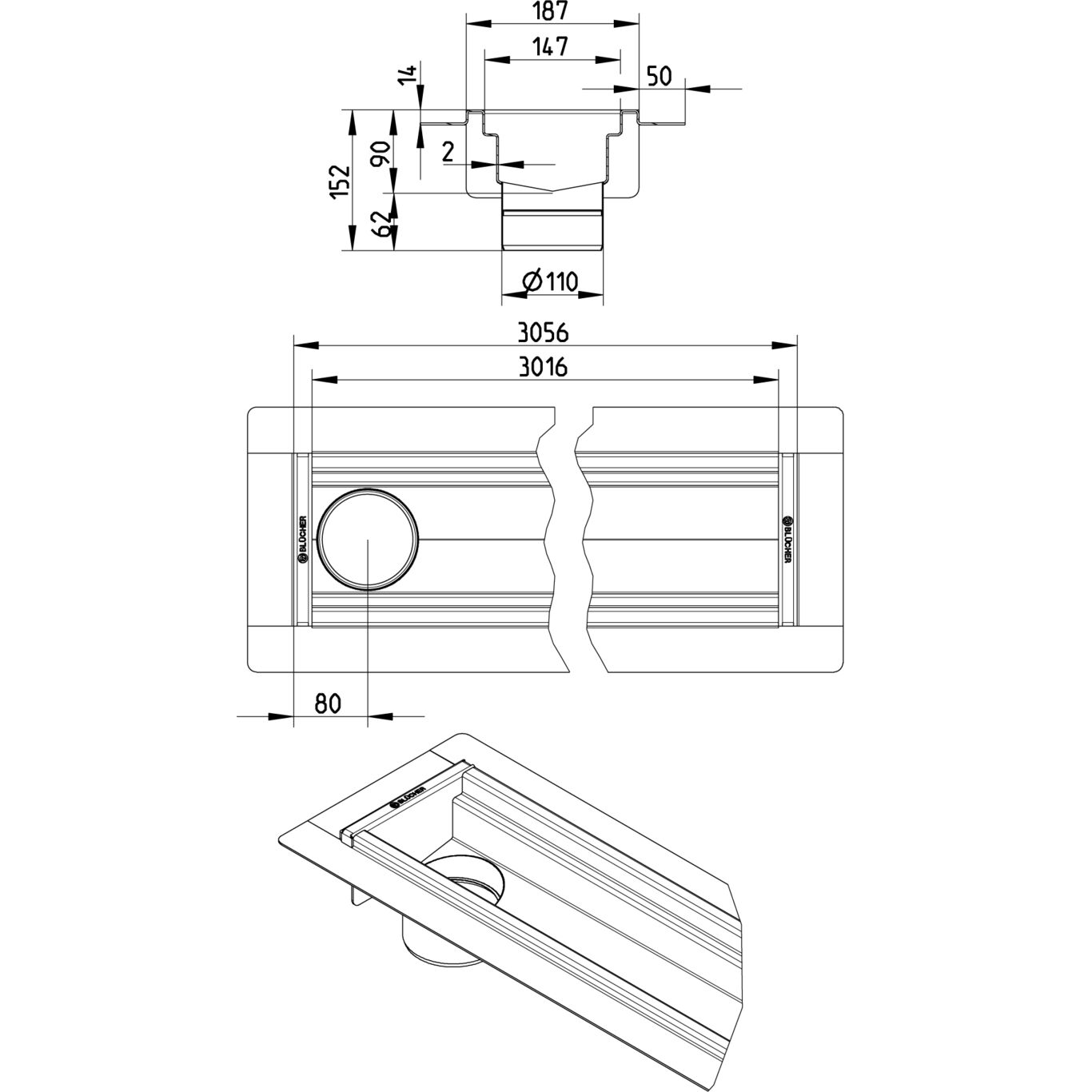

CHANNEL 150x3000 END OUTLET - (674CH030-00BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674CH030-00BA

EAN no.: 5705499130850

NRF no.: 3397122

Size: 150x3000

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 152
Outlet Box No
Outlet dia. (Inch) 4
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (Inch) 5⅞x118⅛
Size (mm) 150x3000
Weight (kg) 22,03
Weight (lbs) 48,57
