SHOWER DRAIN SQUARE - (160.300.110)
Part Of the Series: Drain-No membrane-145
Type no.: 160.300.110
EAN no.: 5705499104981
VVS no.: 153333116
NRF no.: 3394539
LVI no.: 3305769
Size: 145x145

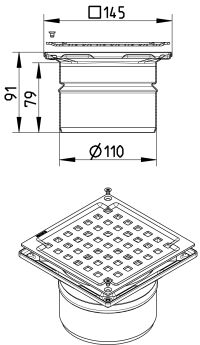

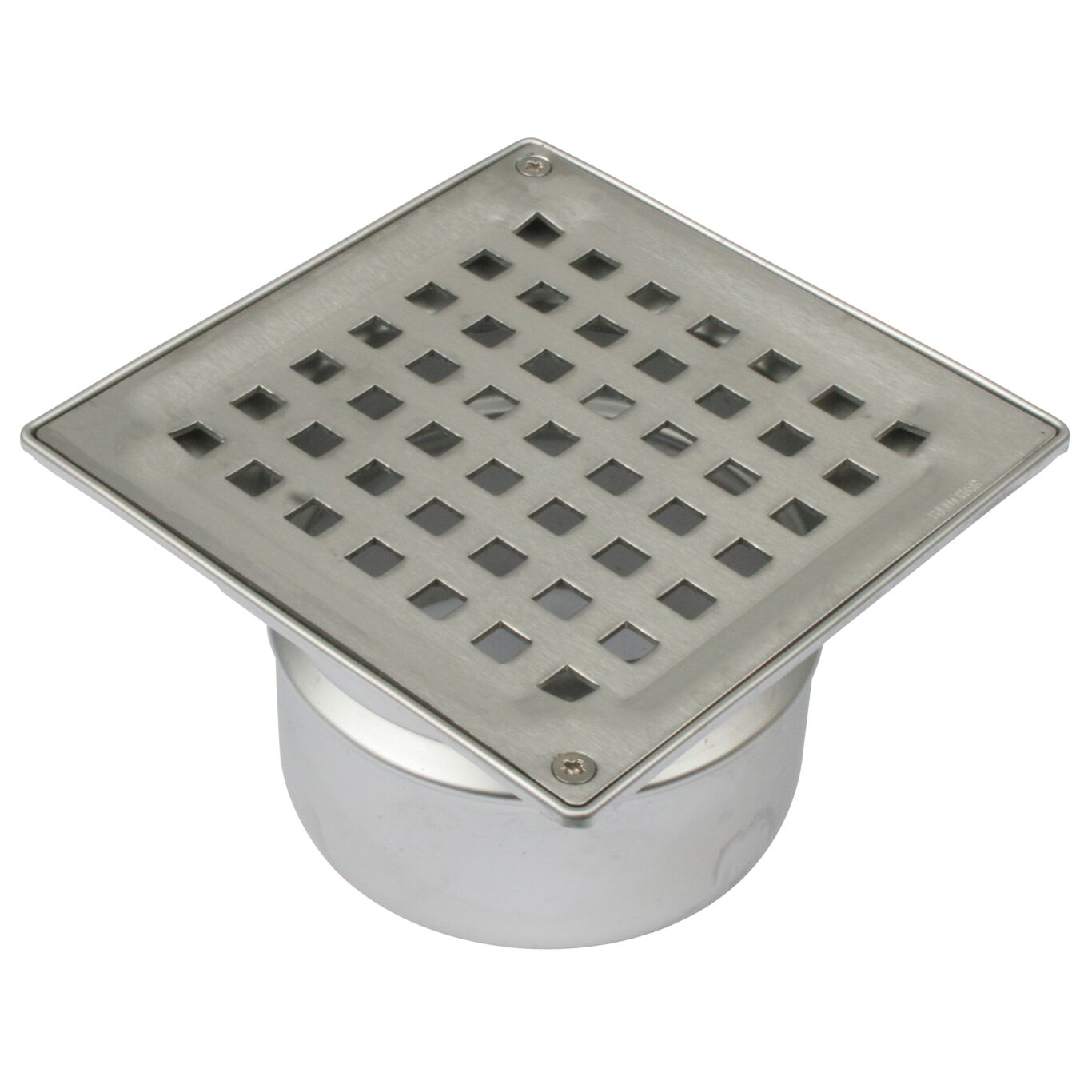

SHOWER DRAIN SQUARE
-Floor: concrete and tiled
-No membrane, frame: 145x145mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Domestic |
Floor | Concrete / Tiled |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Load class EN1253(lbs) | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Number of Inlets | 0 |
Number of inlets (Inch) | 0 |
Number of Screw Holes | 2 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Shape | Square |
Size (Inch) | 5¾x5¾ |
Size (mm) | 145x145 |
Weight (kg) | 0,70 |
Weight (lbs) | 1,54 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
