REMOVABLE MULTI WATER TRAP - (503.000.110)
Part Of the Series: Water trap-110
Type no.: 503.000.110
EAN no.: 5705499118735
VVS no.: 153415566
RSK no.: 7120100
NRF no.: 3394757

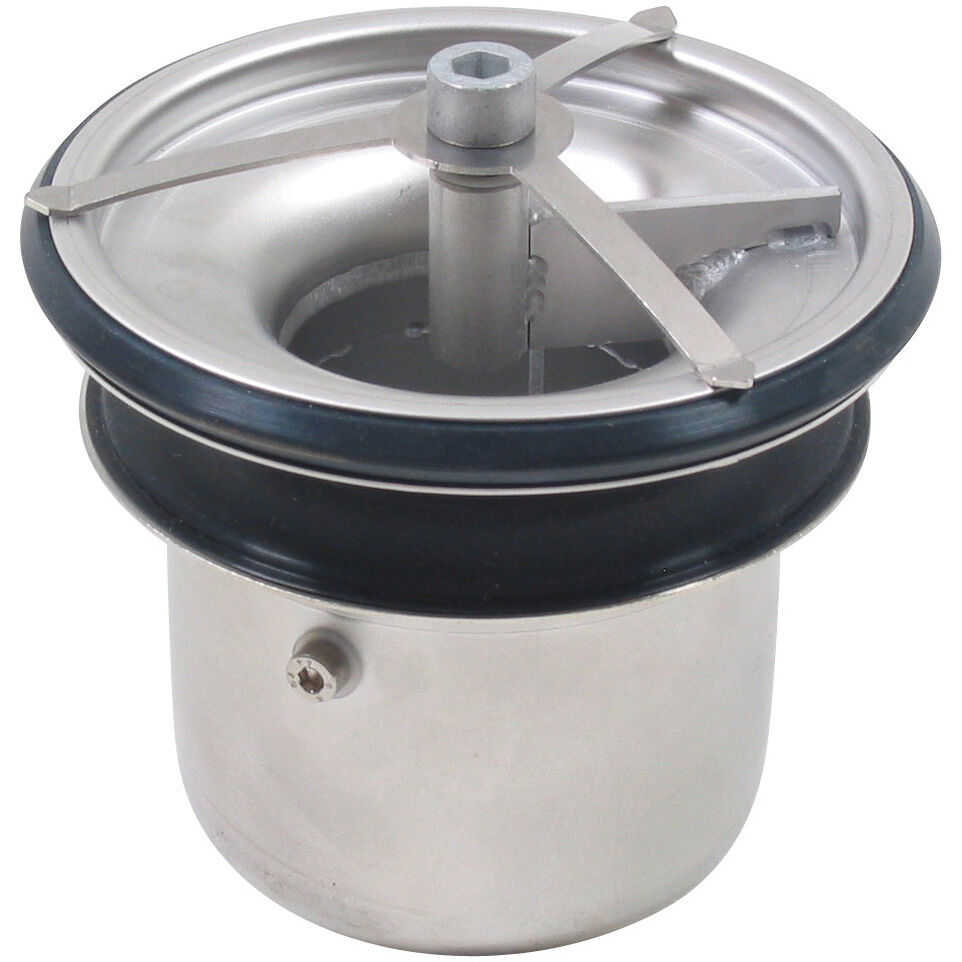

REMOVABLE MULTI WATER TRAP

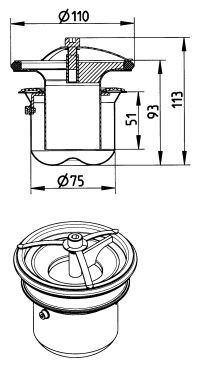

-Water seal height = 51mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Domestic|Industrial |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 1.3 |
Minimum Height (mm) | 113 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 108 |
Water Seal Height (mm) | 51 |
Weight (kg) | 0,40 |
Weight (lbs) | 0,88 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings ABS - 23-2329630-PDA Bureau Veritas - 03456-H0, ShipDrains MARINE - R4547 NATO CODIFICATION SYSTEM UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products
