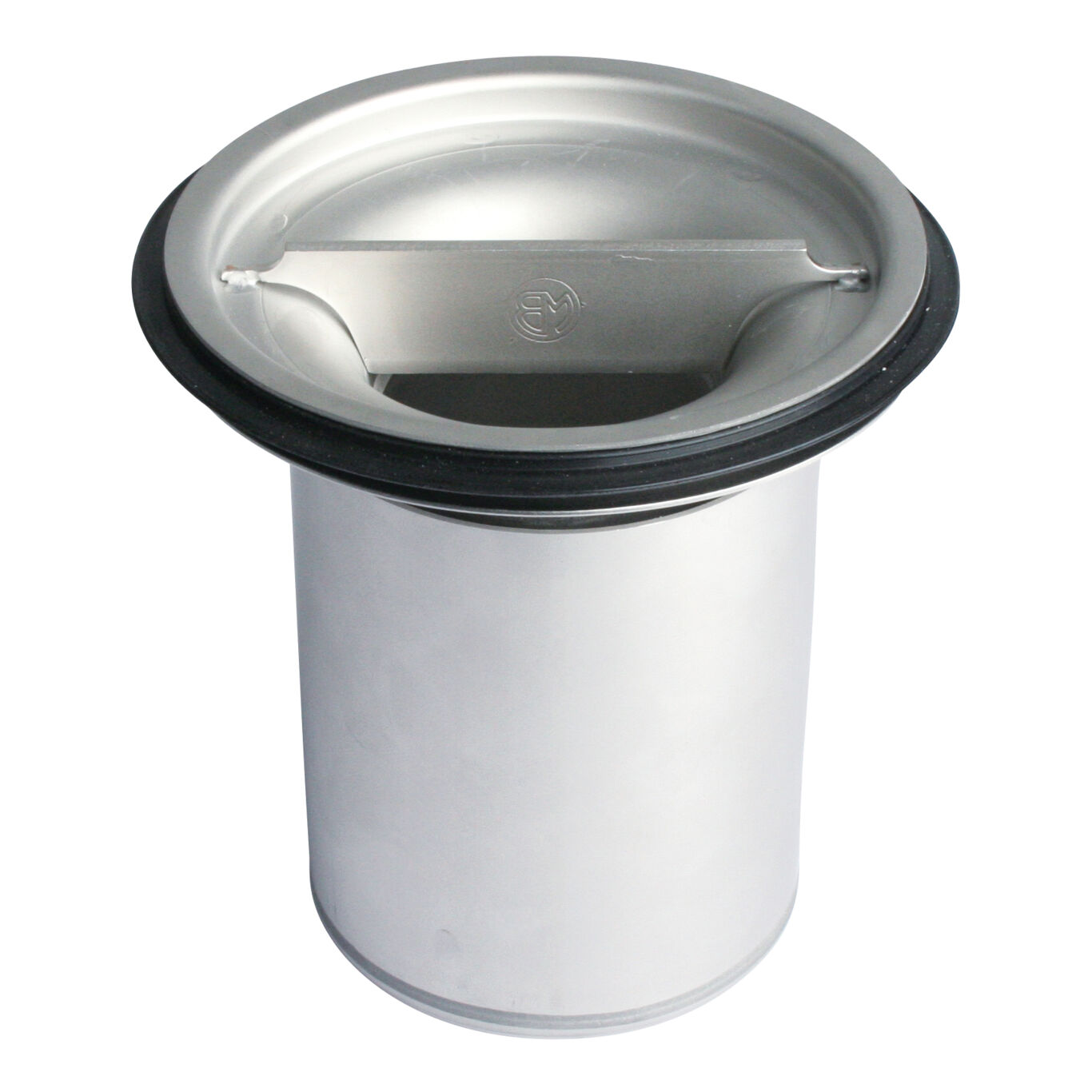

REMOVABLE WATER TRAP - (502.082.110 S)
×
![]()
Part Of the Series: Water trap-110
Type no.: 502.082.110 S
EAN no.: 5705499128468
VVS no.: 153415558
REMOVABLE WATER TRAP
-Water seal height = 80mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic|Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Max Flow (l/s) | 1.2 |

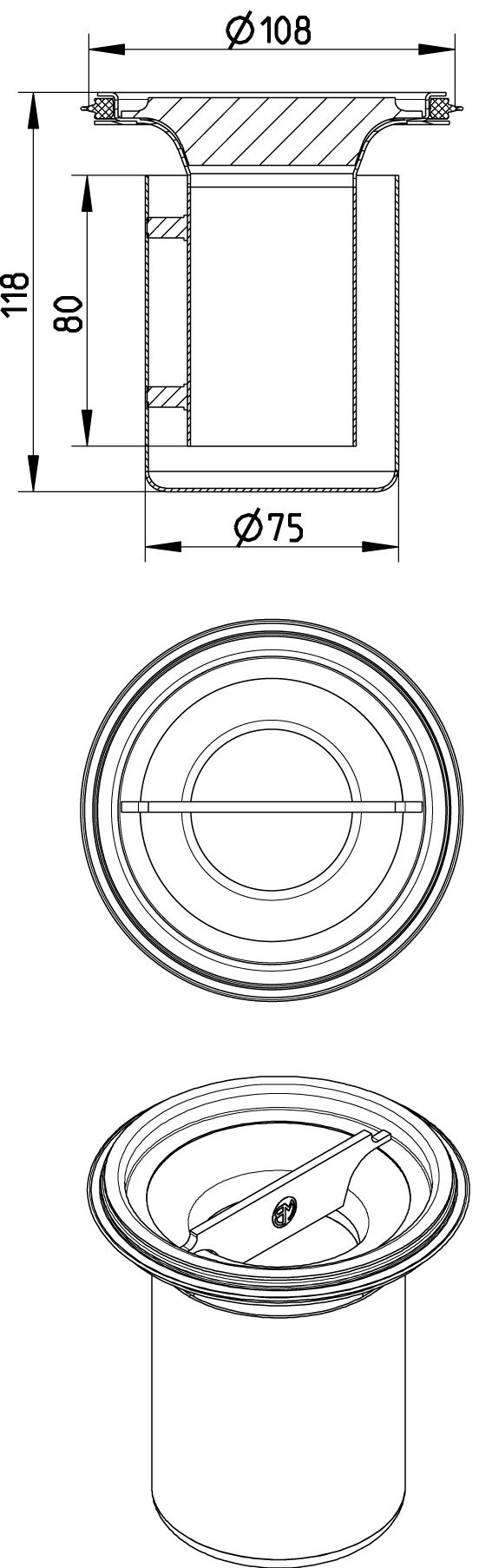

| Minimum Height (mm) | 118 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 108 |
| Water Seal Height (mm) | 80 |
| Weight (kg) | 0,46 |
| Weight (lbs) | 1,01 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
