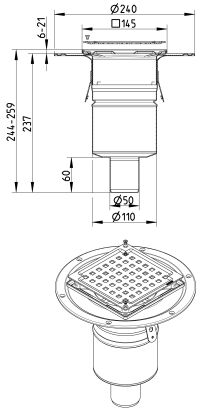

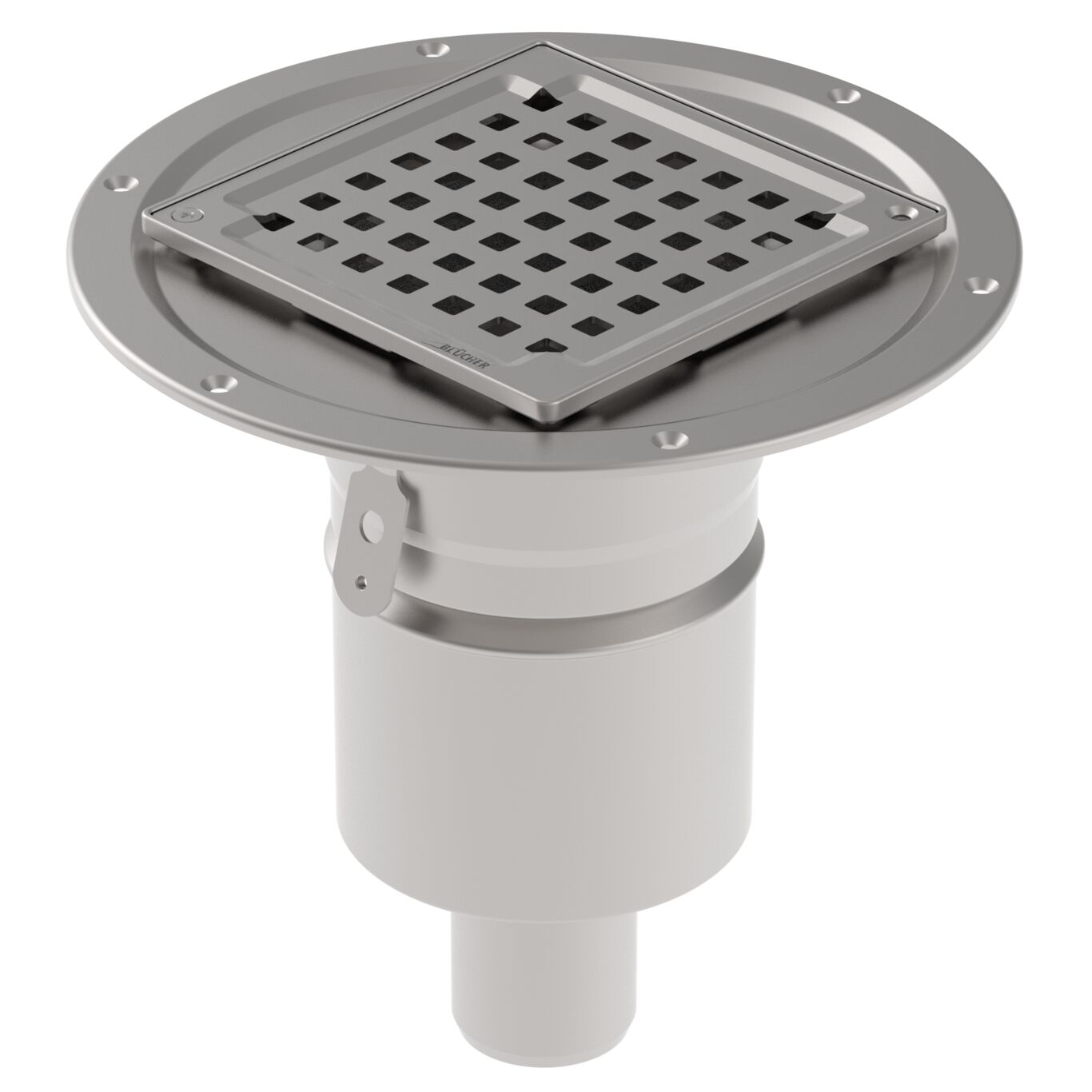

ADJUSTABLE SHOWER DRAIN SQUARE - (360.300.050)

Part Of the Series: Drain-Liquid membrane-145

Type no.: 360.300.050

EAN no.: 5705499124385

Size: 145x145

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Load Class EN1253 K3
Load Class EN1253 (kg) K3
Load class EN1253(lbs) K3
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 259
Membrane Type Liquid Membrane
Number of Inlets 0
Number of inlets (Inch) 0
Number of Screw Holes 2
Outlet dia. (Inch) 2
Outlet Diameter (mm) 50
Outlet Direction Vertical
Shape Square
Size (Inch) 5¾x5¾
Size (mm) 145x145
Weight (kg) 1,44
Weight (lbs) 3,17
