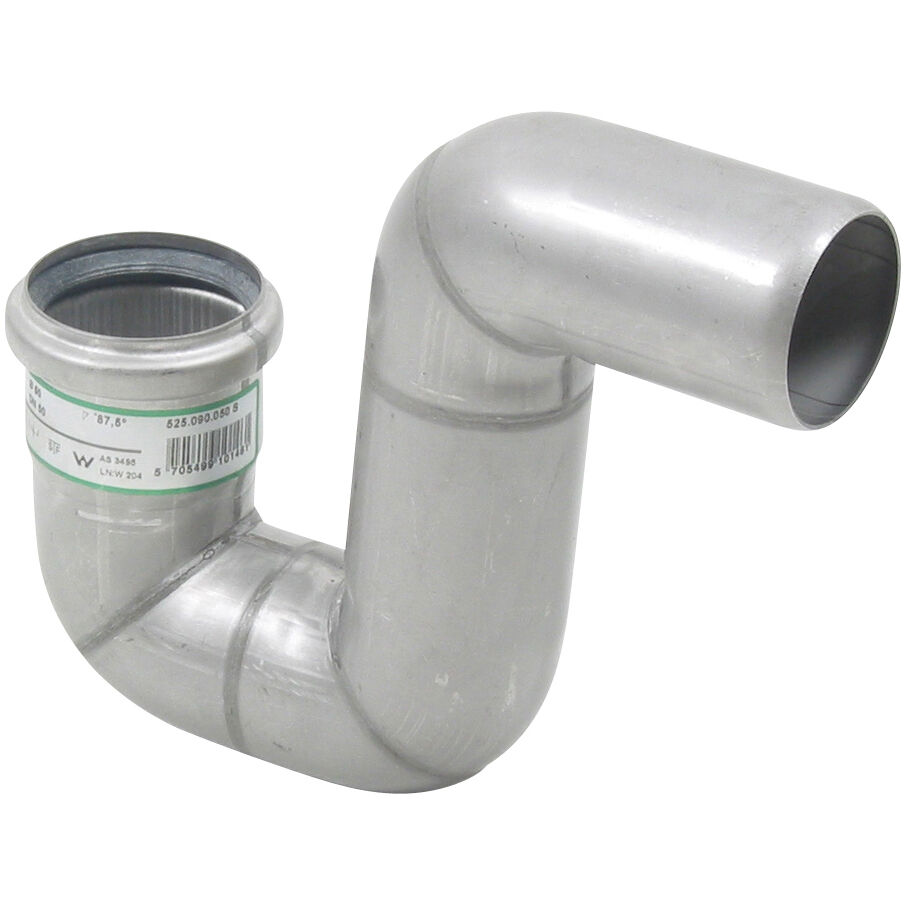

P-TRAP 87.5° - (525.090.050 S)
Part Of the Series: Water trap-p
Type no.: 525.090.050 S
EAN no.: 5705499101461
VVS no.: 160381350
RSK no.: 1550345
NRF no.: 3395041
LVI no.: 3304019

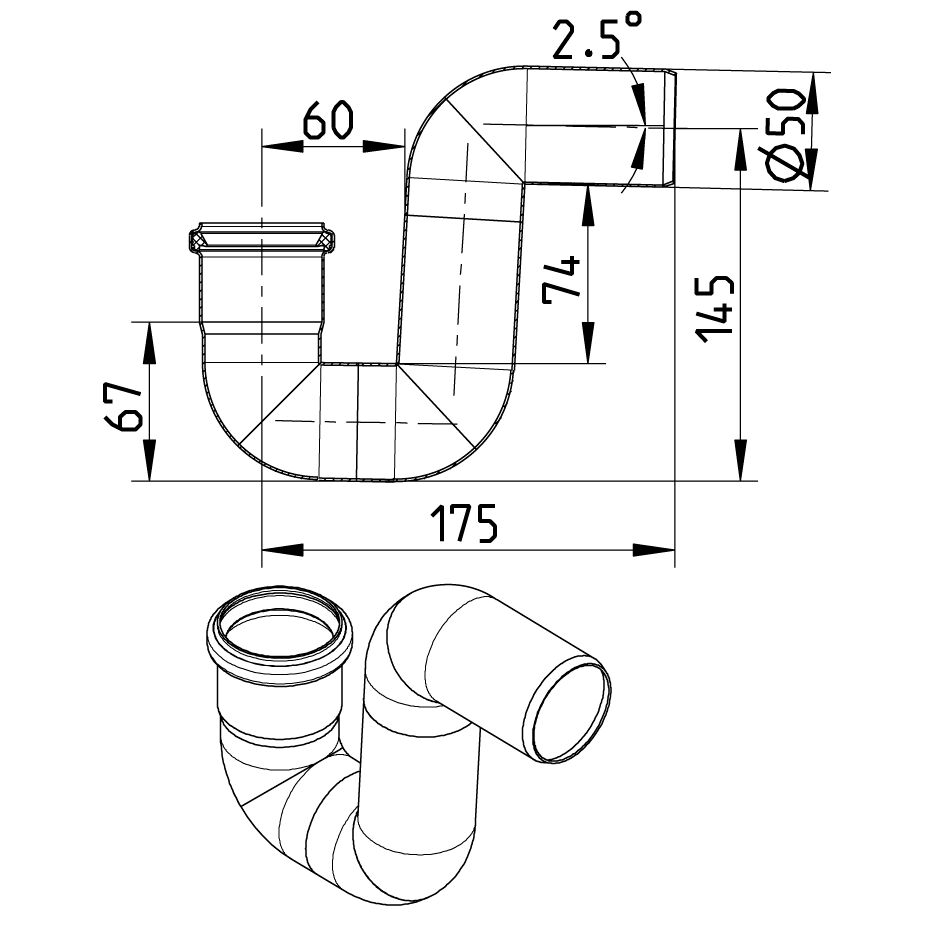

P-TRAP 87.5°
-Diameter: Ø50mm
-Water seal height = 74mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
All Renovation 82 products | RS82 |
Angle (°) | 87.5 |
Field of Application | Domestic |
Length (mm) | 67 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Max Flow (l/s) | 1.7 |
Minimum Flow (l/s) | 0.7 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Water Seal Height (mm) | 74 |
Weight (kg) | 0,45 |
Weight (lbs) | 0,99 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
NO - 0692-22 EuroPipe DK VA 2.41/19631 P-Vandlås dim 50, 75, 110, 125, 160mm HACCP Food Safety Programme - Australasia US - IAPMO File No.3247-EuroPipe AUS - WMKT00204 - 24 HACCP Food Safety Programme - Europe Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products Bureau Veritas - 03456-H0, ShipDrains KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA Lloyds Register LR22419510TA DNV - TAP0000023-rev4, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM
