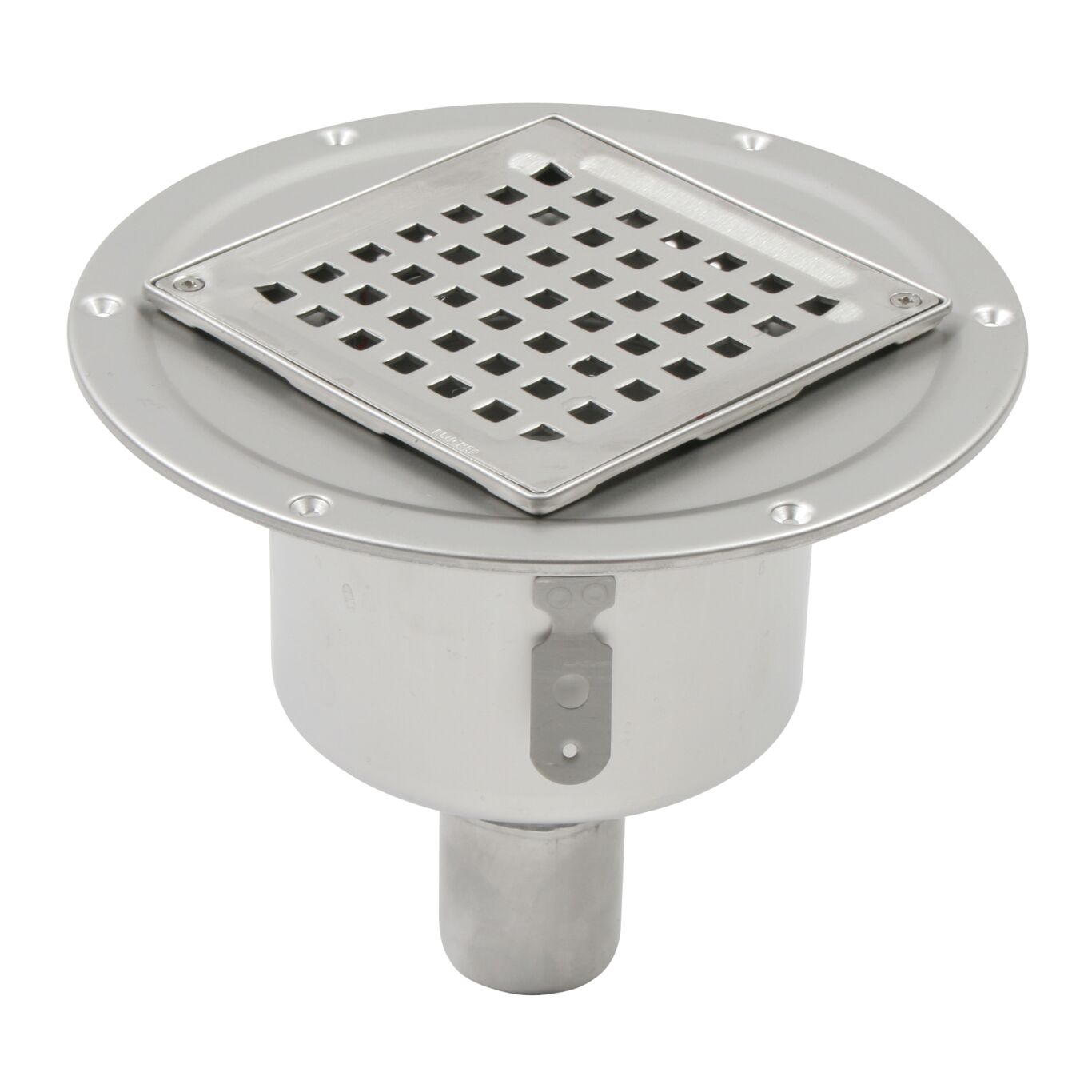

ADJUSTABLE SHOWER DRAIN SQUARE - (350.300.050)
Part Of the Series: Drain-Liquid membrane-145
Type no.: 350.300.050
EAN no.: 5705499124361
Size: 145x145
ADJUSTABLE SHOWER DRAIN SQUARE
-Floor: concrete and tiled
-Liquid membrane, frame: 145x145mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Domestic |
Floor | Concrete / Tiled |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Load class EN1253(lbs) | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 224 |
Membrane Type | Liquid Membrane |
Number of Inlets | 0 |
Number of inlets (Inch) | 0 |
Number of Screw Holes | 2 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Vertical |
Shape | Square |
Size (Inch) | 5¾x5¾ |
Size (mm) | 145x145 |
Weight (kg) | 1,60 |
Weight (lbs) | 3,53 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
