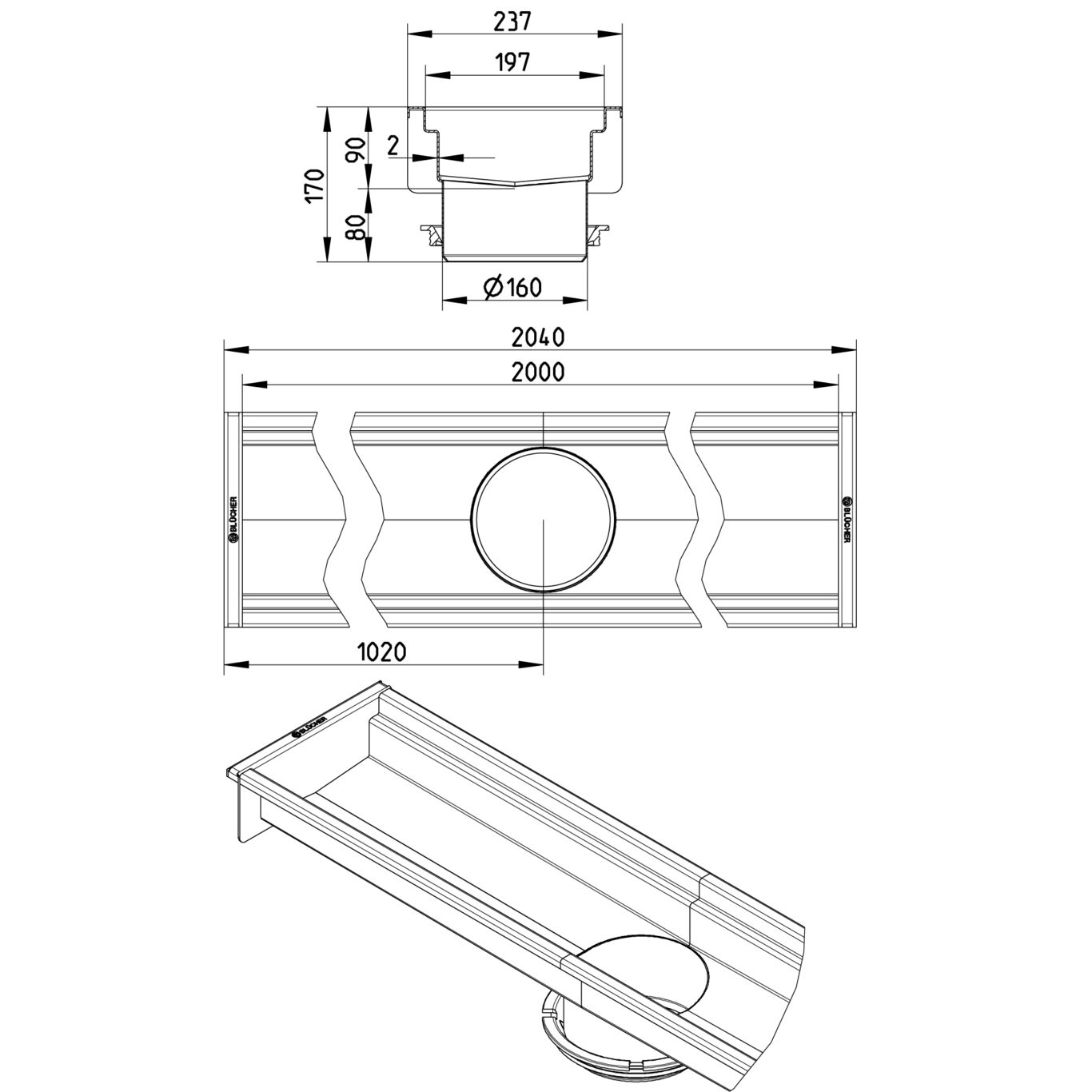

CHANNEL 200x2000 CENTER OUTLET - (670DK020-10BA)
×
Part Of the Series: Channel-No membrane
Type no.: 670DK020-10BA
EAN no.: 5705499129687
NRF no.: 3396464
Size: 200x2000
CHANNEL 200x2000 CENTER OUTLET
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Minimum Height (mm) | 170 |
Outlet Box | No |
Outlet dia. (Inch) | 6 |
Outlet Diameter (mm) | 160 |
Outlet Direction | Vertical |
Outlet Placement | Center |
Shape | Rectangular |
Size (Inch) | 7⅞x78¾ |
Size (mm) | 200x2000 |
Weight (kg) | 13,72 |
Weight (lbs) | 30,25 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
