REMOVABLE WATER TRAP WITH ODOUR STOP - (563.002.000)
×
![]()
Part Of the Series: Water trap-160
Type no.: 563.002.000
EAN no.: 5705499135275
RSK no.: 7120429
NRF no.: 3395086
LVI no.: 3304180

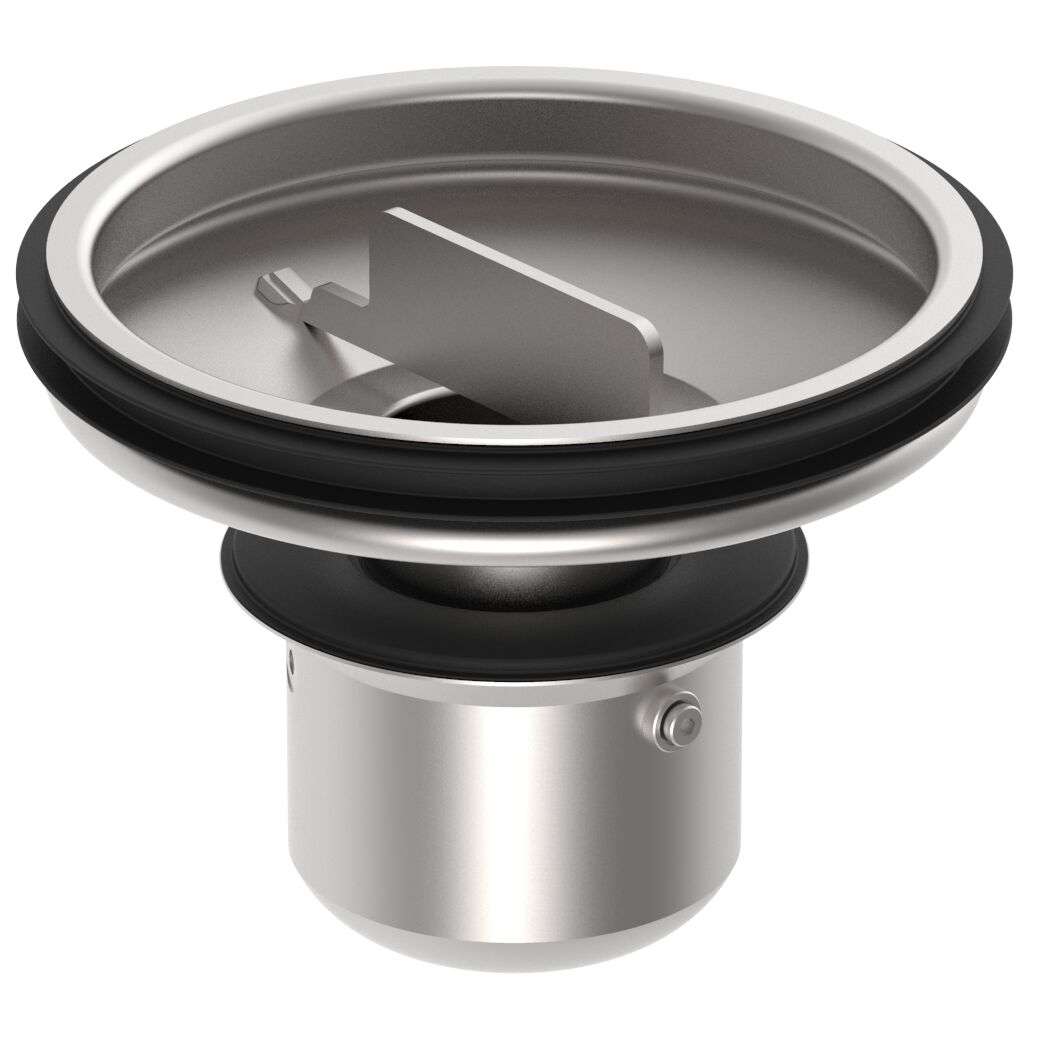

REMOVABLE WATER TRAP WITH ODOUR STOP

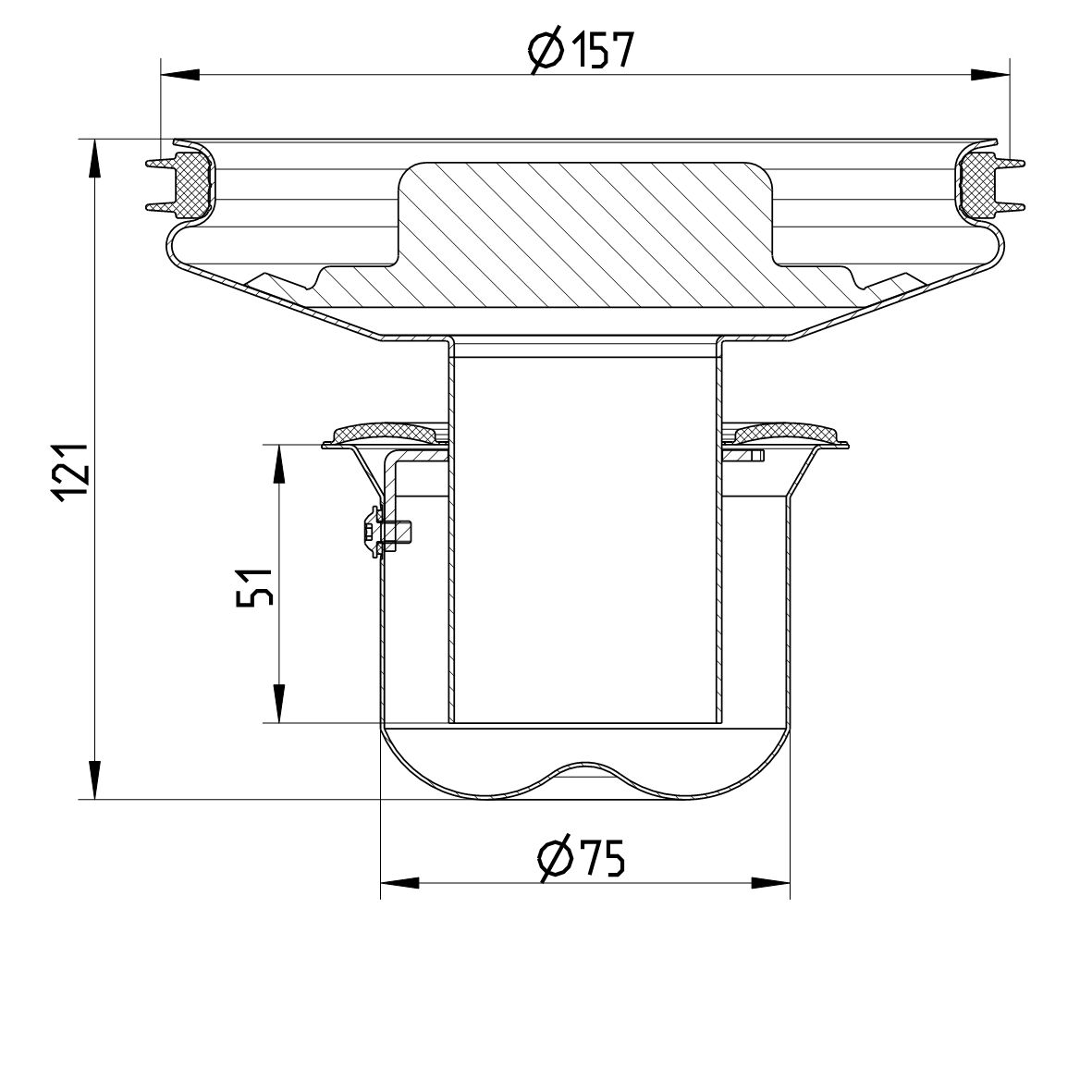

-Water seal height = 50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 1.3 |
| Minimum Height (mm) | 121 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 157 |
| Water Seal Height (mm) | 51 |
| Weight (kg) | 0,59 |
| Weight (lbs) | 1,3 |
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
