ROOF DRAIN FOR SIPHONIC - (402.204.075)
Part Of the Series: Drain for siphonic-single ply membrane
Type no.: 402.204.075
EAN no.: 5705499132878
VVS no.: 164111075
RSK no.: 5173705
LVI no.: 3384536

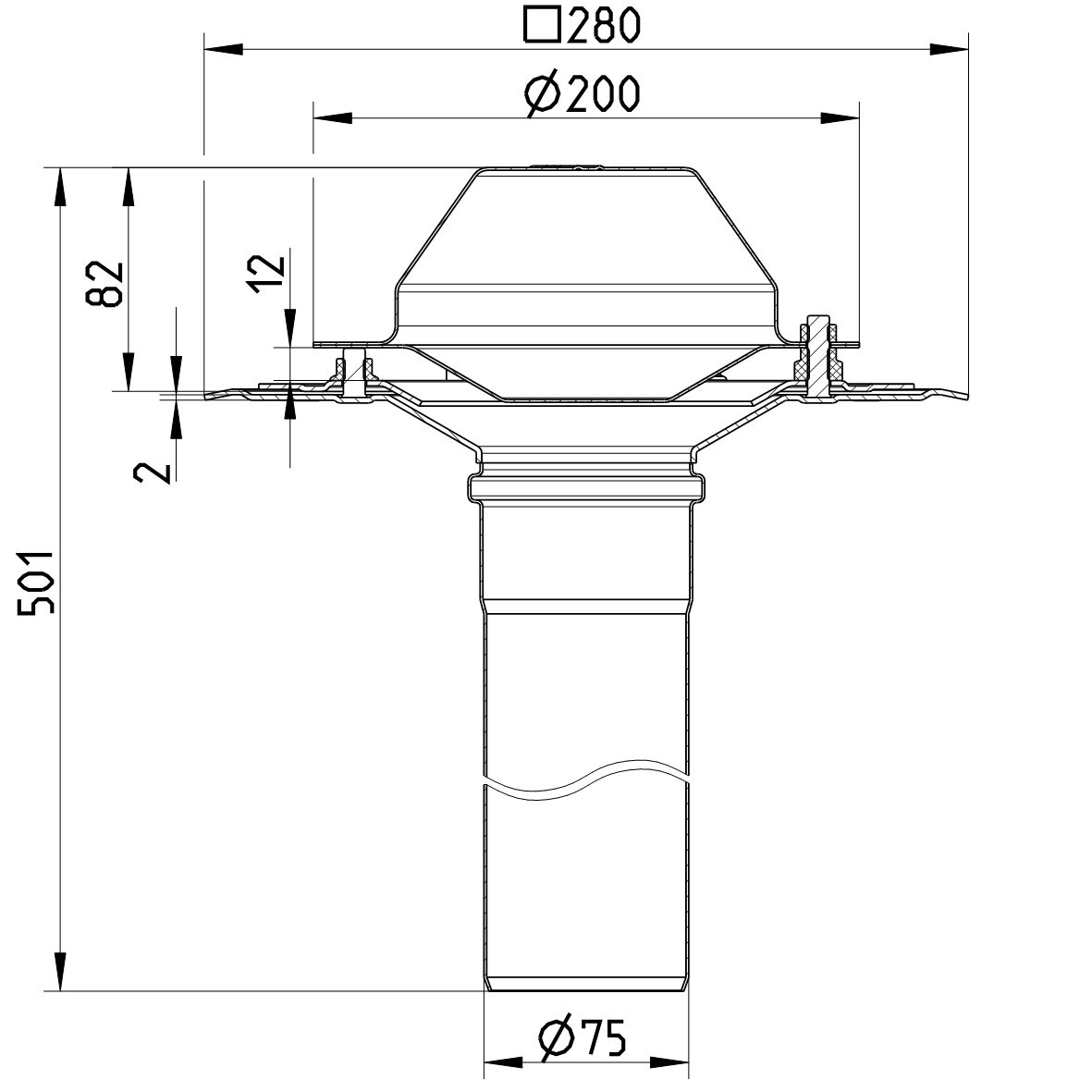

ROOF DRAIN FOR SIPHONIC
-Roof: single ply membrane
-Flange: 280x280mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Max Flow (l/s) | 18.8 |
Minimum Height (mm) | 501 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Roof | Single ply membrane |
System | Siphonic |
Weight (kg) | 3,20 |
Weight (lbs) | 7,05 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
