LOWER PART FOR ROOF DRAIN - (402.004.075)
Part Of the Series: Lower part-single ply membrane
Type no.: 402.004.075
EAN no.: 5705499132977
VVS no.: 164121075
NRF no.: 3395012
LVI no.: 3384526

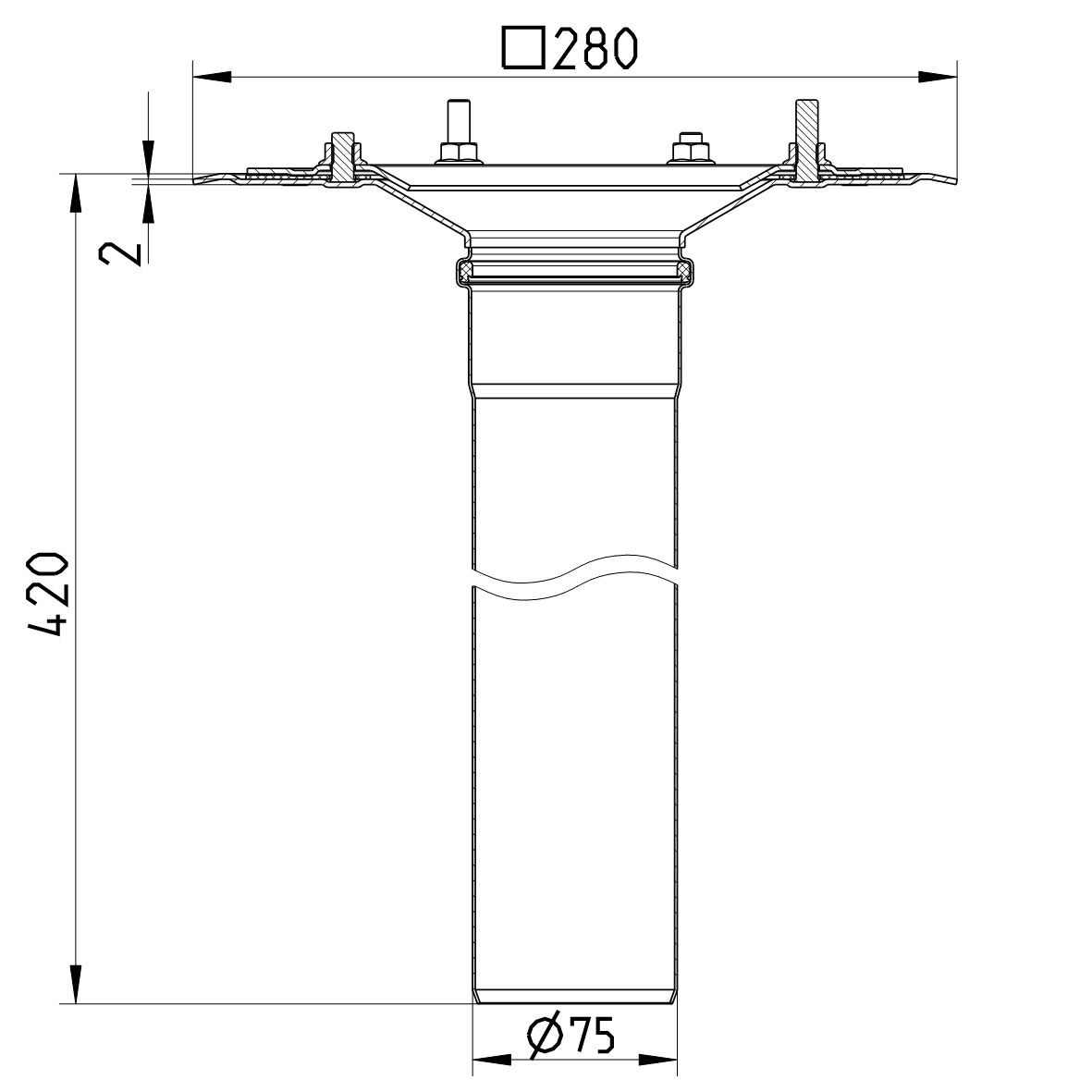

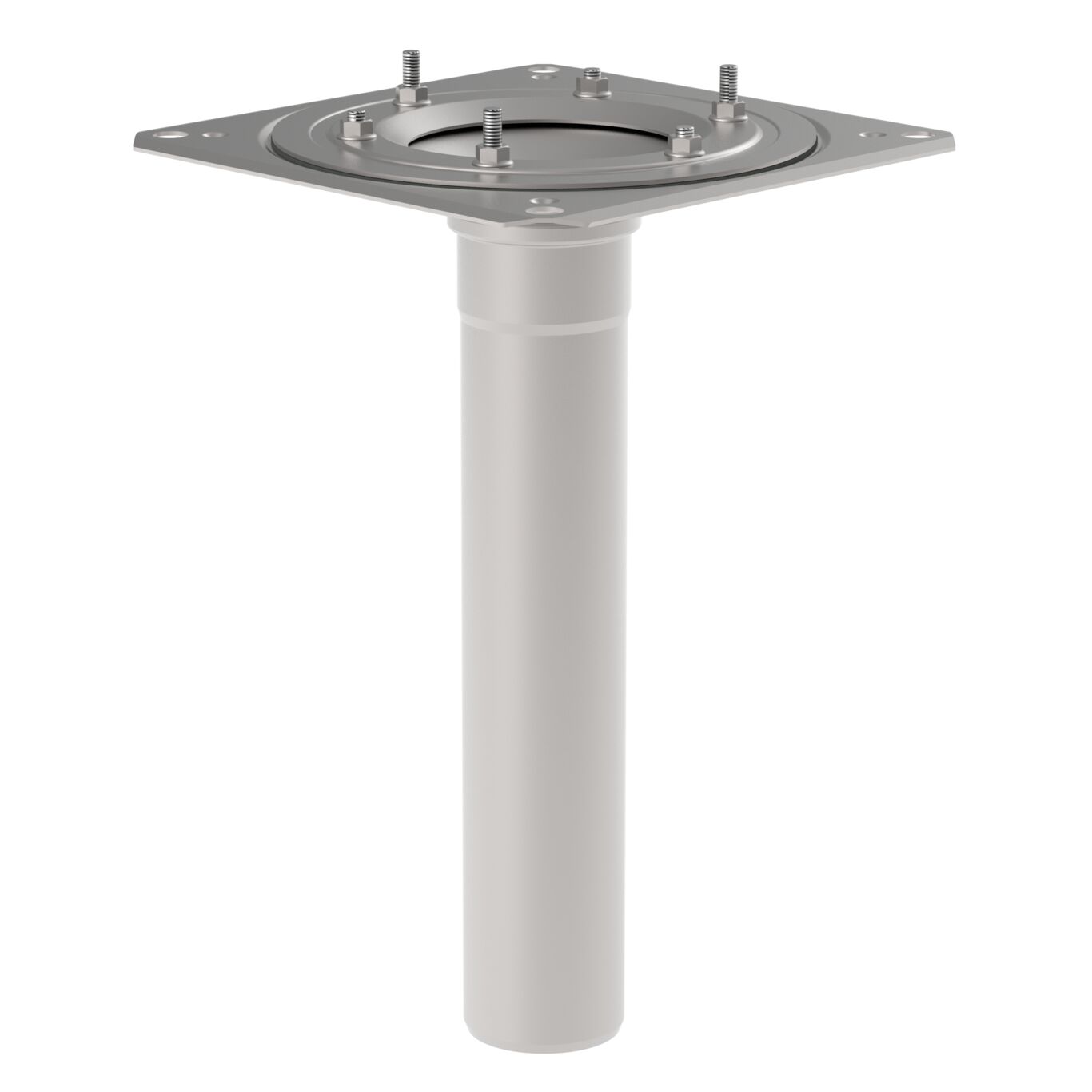

LOWER PART FOR ROOF DRAIN
-Roof: single ply membrane
-Flange: 280x280mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 420 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Roof | Single ply membrane |
Weight (kg) | 2,64 |
Weight (lbs) | 5,82 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
