LOWER PART FOR ROOF DRAIN - (401.004.075)
×
![]()
Part Of the Series: Lower part-bitumen
Type no.: 401.004.075
EAN no.: 5705499132939
VVS no.: 164120075
RSK no.: 5173711
LVI no.: 3384516

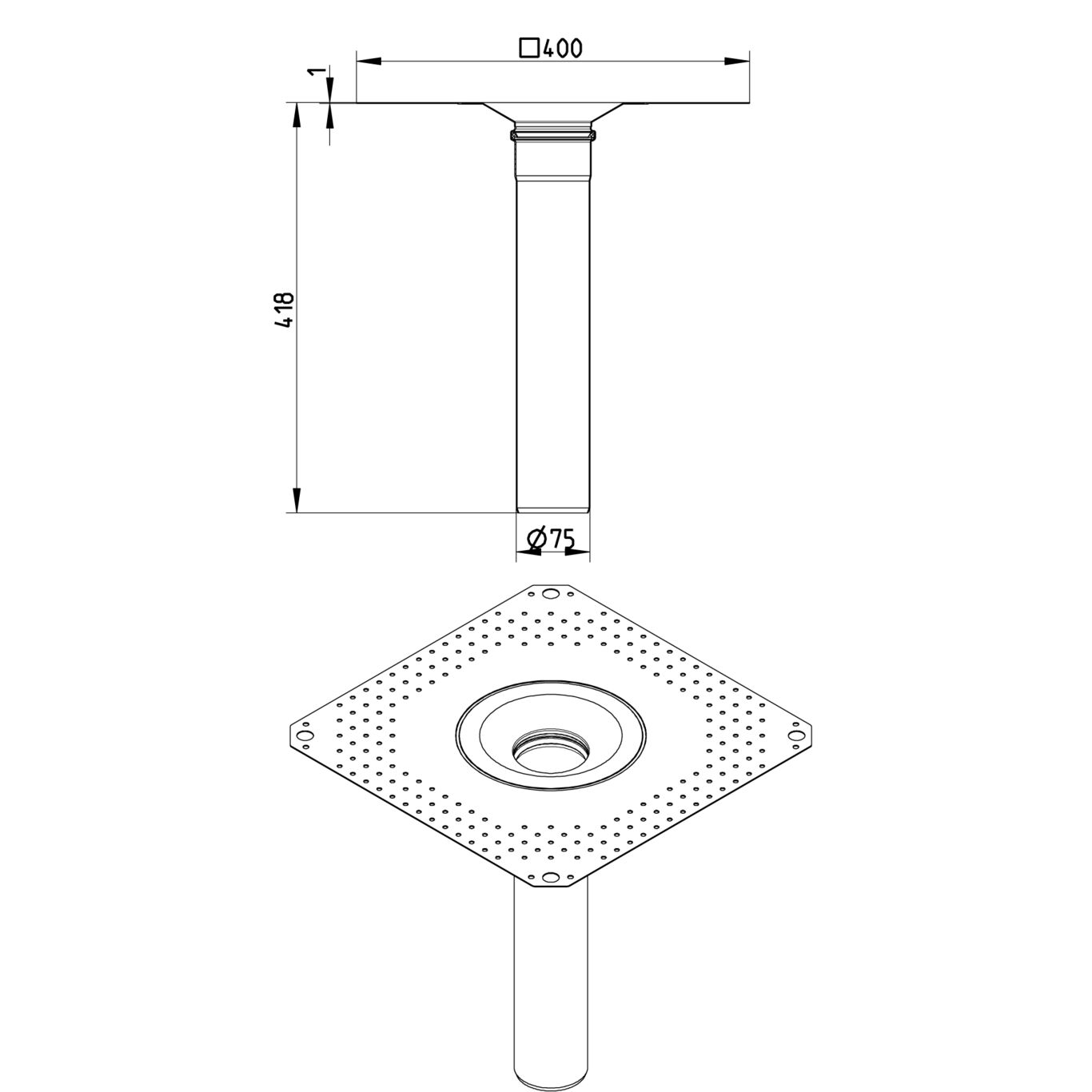

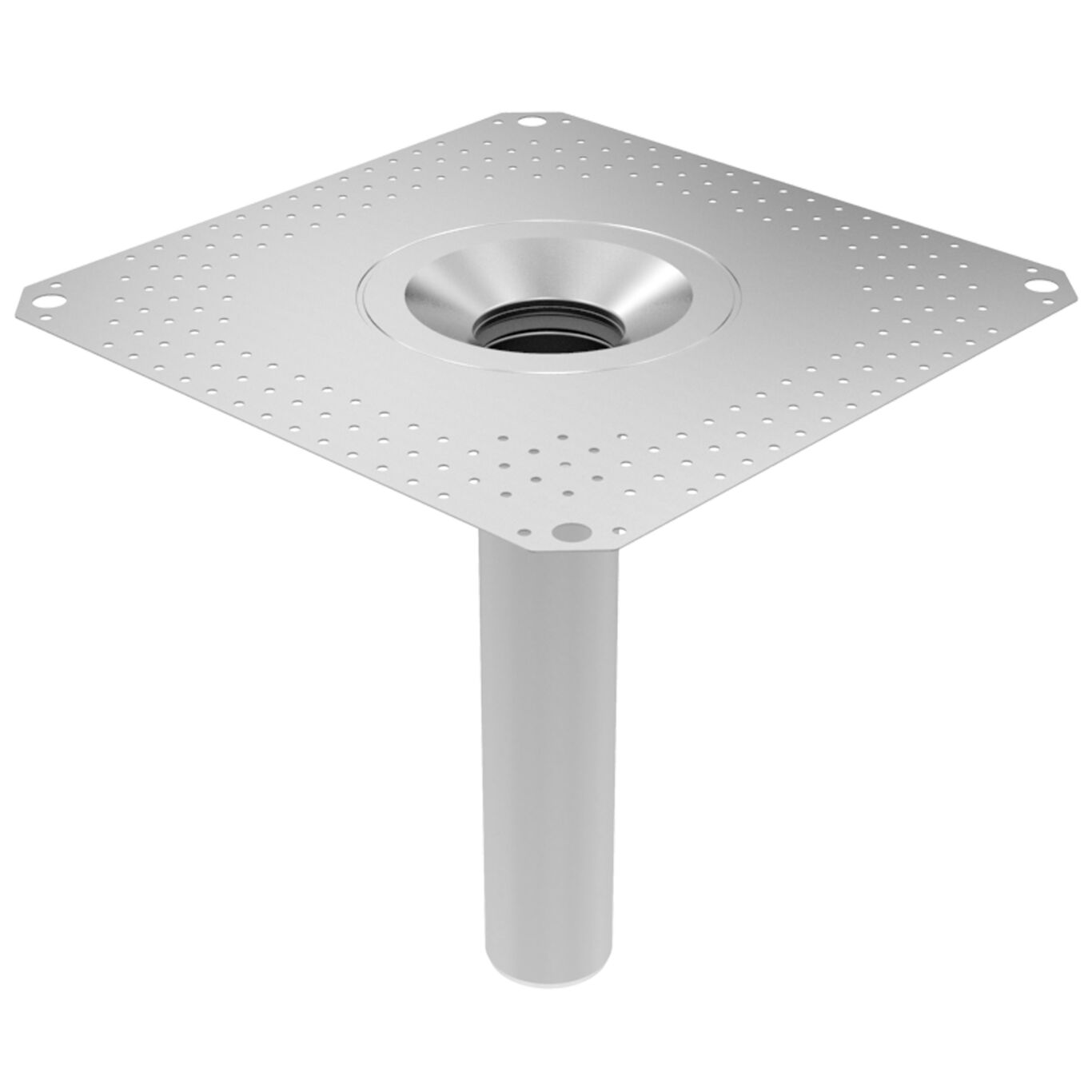

LOWER PART FOR ROOF DRAIN
-Roof: bitumen
-Flange: 400x400mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 418 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| Weight (kg) | 1,59 |
| Weight (lbs) | 3,51 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
