ROOF DRAIN FOR SIPHONIC - (401.206.075)
×
![]()
Part Of the Series: Drain for siphonic-bitumen
Type no.: 401.206.075
EAN no.: 5705499141252

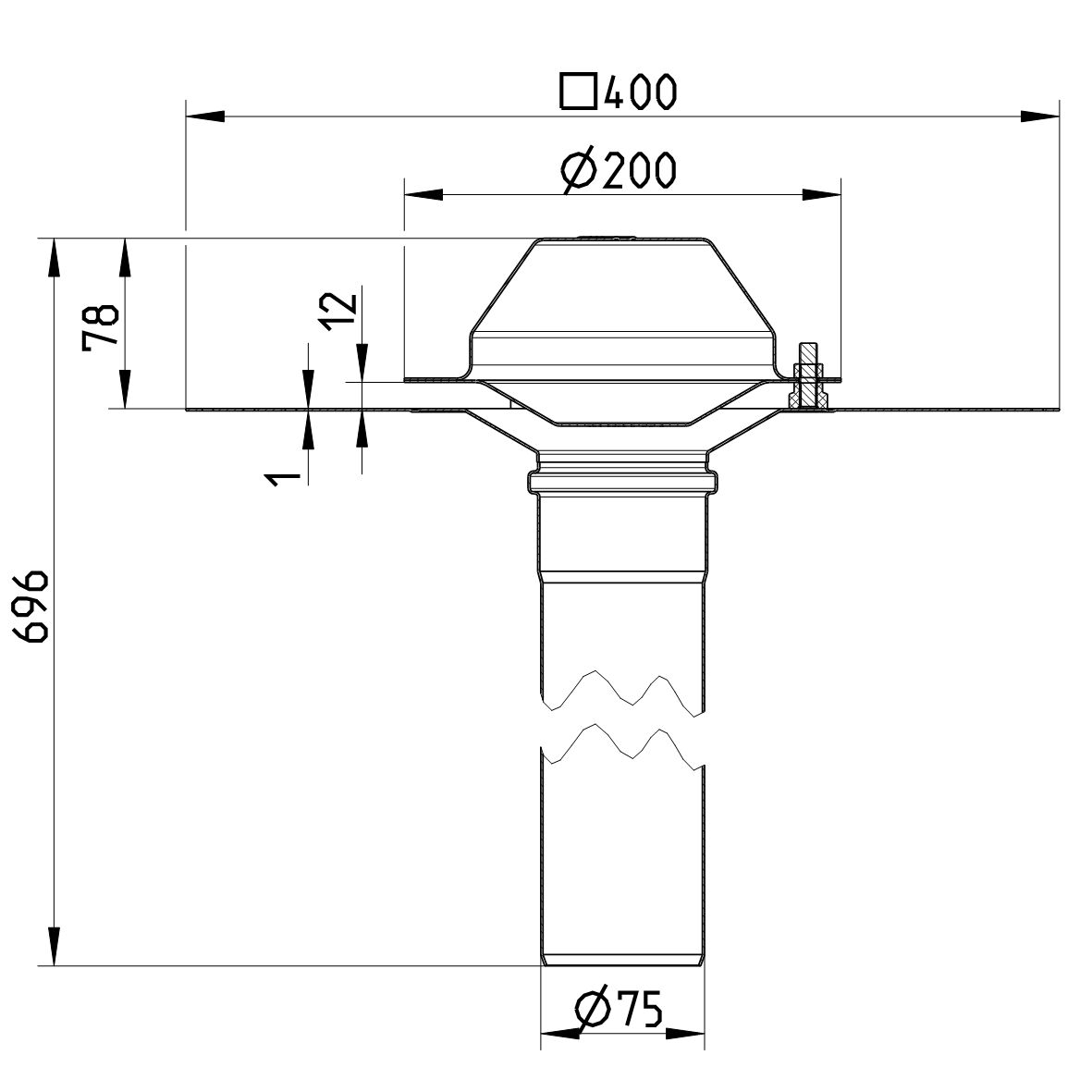

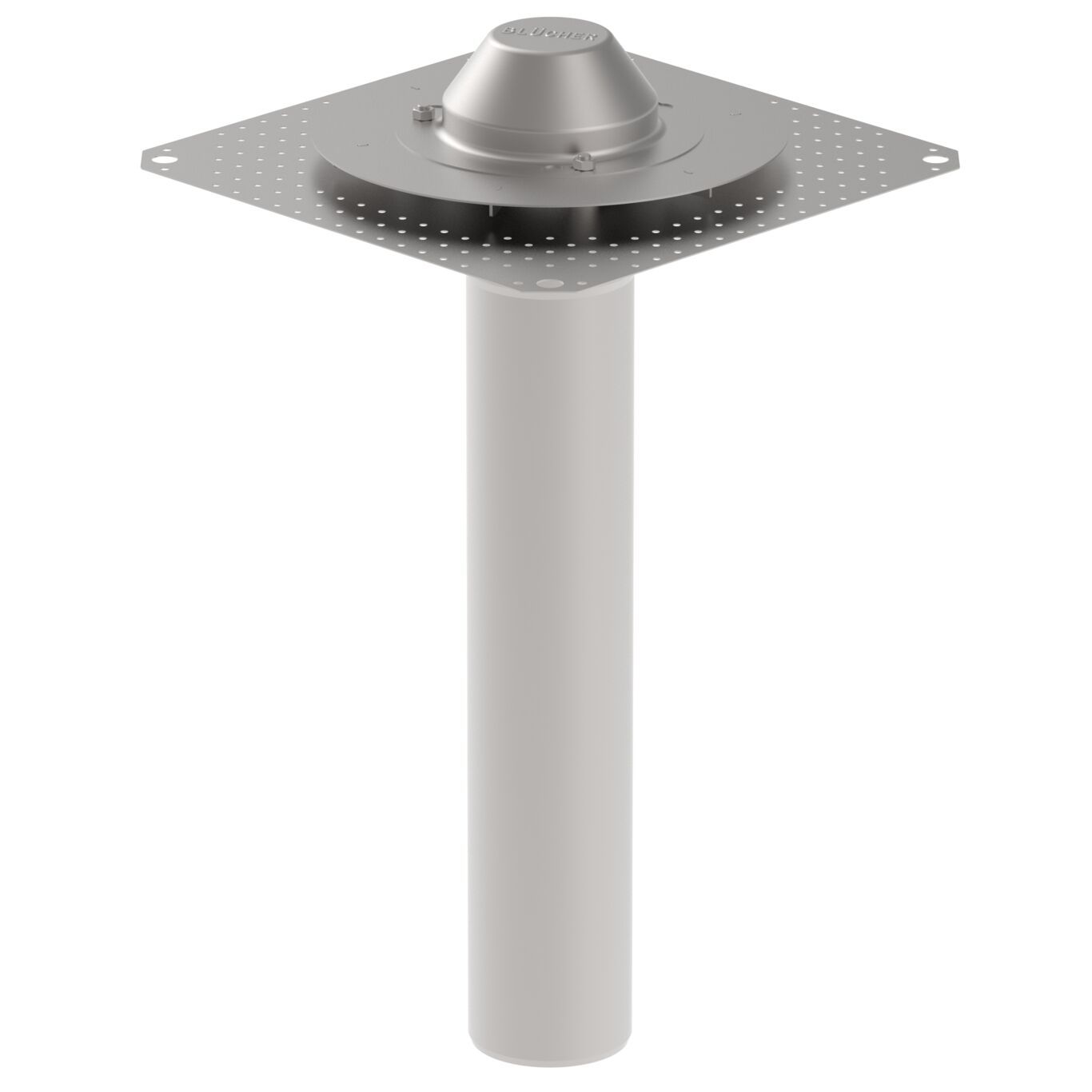

ROOF DRAIN FOR SIPHONIC
-Roof: Bitumen
-Flange: 400x400mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 18.8 |
| Minimum Height (mm) | 696 |
| Outlet dia. (Inch) | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| System | Siphonic |
| Weight (kg) | 3,09 |
| Weight (lbs) | 6,81 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
