ADJUSTABLE LOWER PART MULTI - (211.200.075 VS)
×
Part Of the Series: MULTI lower part
Type no.: 211.200.075 VS
EAN no.: 5705499105827
RSK no.: 7120176
LVI no.: 3304123

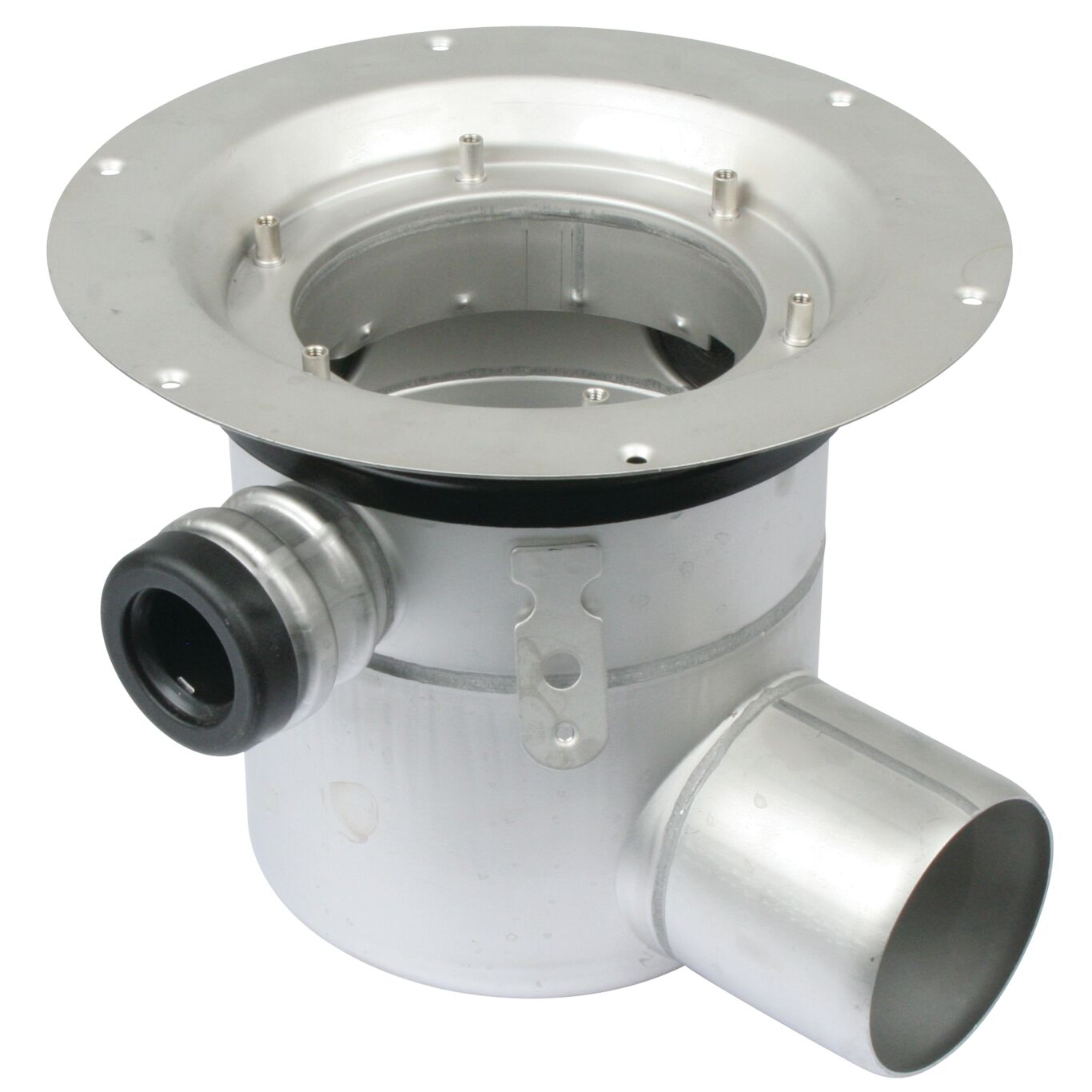

ADJUSTABLE LOWER PART MULTI
-With side inlets and removable water trap
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Domestic |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Maximum Height (mm) | 194 |
Minimum Height (mm) | 184 |
Number of Inlets | 3 (Ø32/40mm) |
Number of inlets (Inch) | 3 (Ø1¼"/1½") |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Horizontal |
Water Seal Height (mm) | 50 |
Weight (kg) | 2,00 |
Weight (lbs) | 4,41 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
