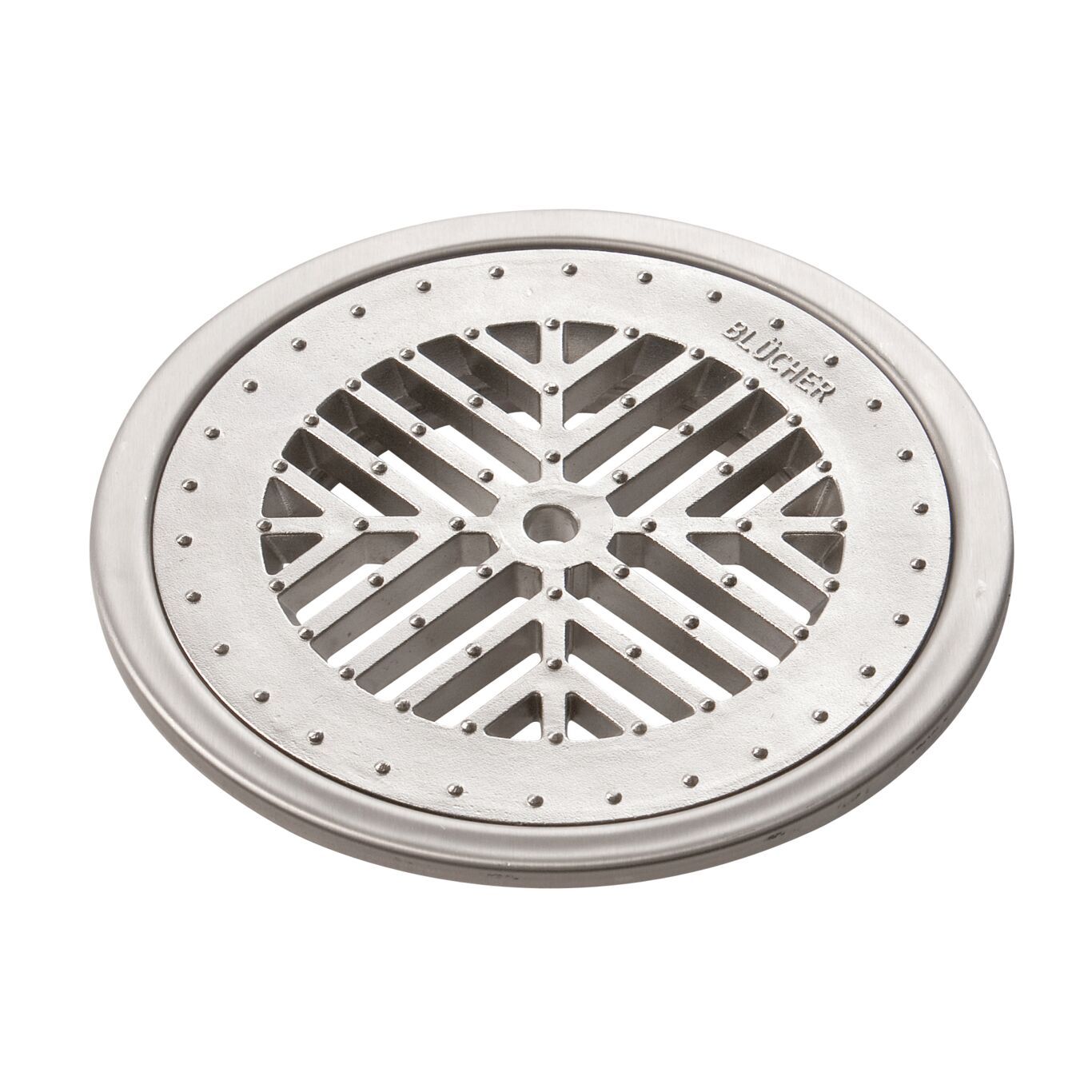

MOUNTING SET CIRCLE HYGIENIC-PRO - (620.300.044)
Part Of the Series: MULTI top-180
Type no.: 620.300.044
EAN no.: 5705499129311
RSK no.: 7122116
Size: Ø180
MOUNTING SET CIRCLE HYGIENIC-PRO
-With clamping ring
-Floor: concrete and tiled
-Frame: 180x180mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Domestic |
Floor | Resin |
Load Class EN1253 | L15 |
Load Class EN1253 (kg) | L15 (3000) |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 25 |
Number of Screws | 0 |
Shape | Round |
Size (Inch) | Ø7⅛ |
Size (mm) | Ø180 |
Weight (kg) | 0,83 |
Weight (lbs) | 1,83 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
