ADJUSTABLE LOWER PART MULTI - (210.200.110 VS)
×
Part Of the Series: MULTI lower part
Type no.: 210.200.110 VS
EAN no.: 5705499129274
RSK no.: 7119419
LVI no.: 3304114

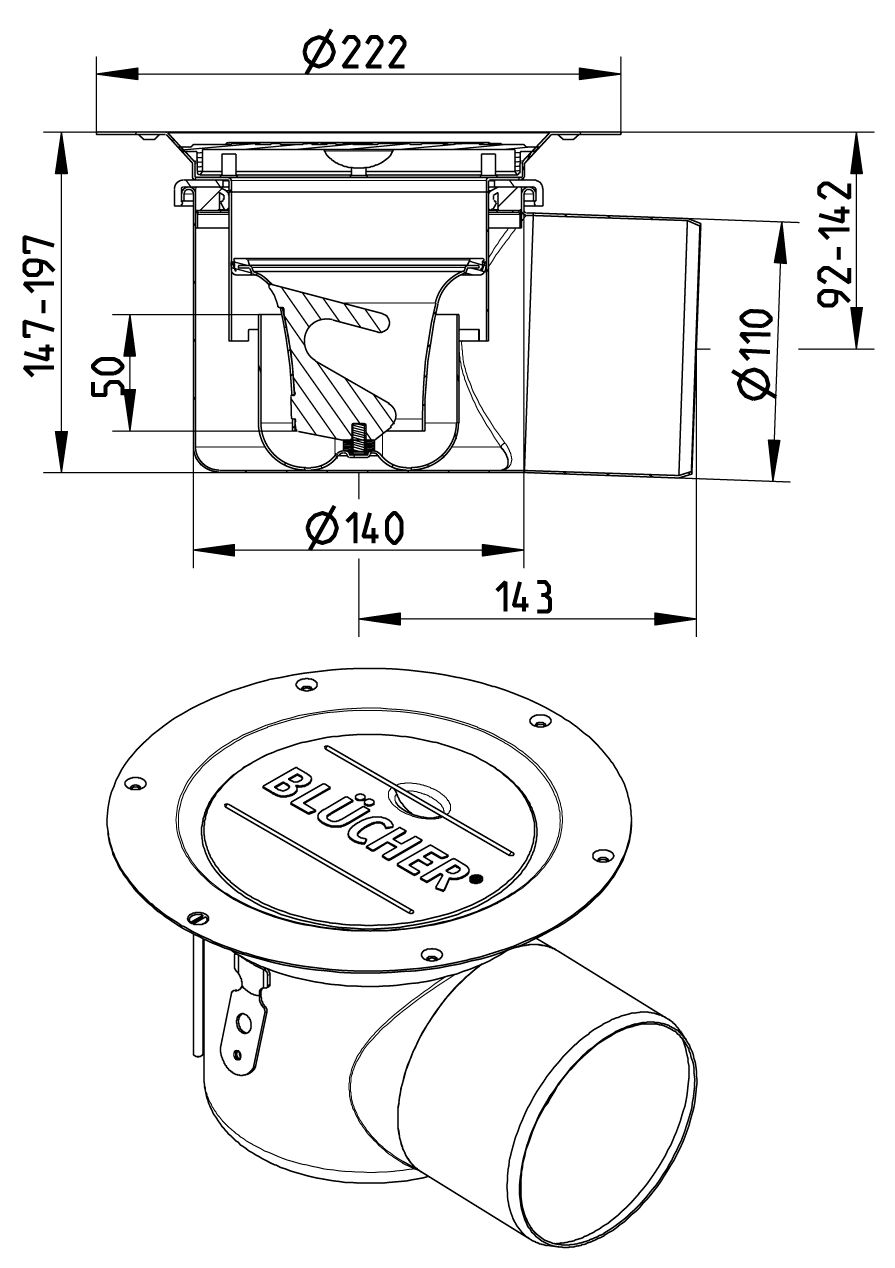

ADJUSTABLE LOWER PART MULTI
-With removable water trap
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Domestic |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Maximum Height (mm) | 197 |
Minimum Height (mm) | 147 |
Number of Inlets | 0 |
Number of inlets (Inch) | 0 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Horizontal |
Water Seal Height (mm) | 50 |
Weight (kg) | 1,75 |
Weight (lbs) | 3,86 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
