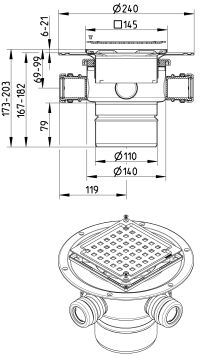

ADJUSTABLE SHOWER DRAIN SQUARE - (351.300.110 S)
Part Of the Series: Drain-Liquid membrane-145
Type no.: 351.300.110 S
EAN no.: 5705499105414
VVS no.: 153585346
RSK no.: 7119399
Size: 145x145
ADJUSTABLE SHOWER DRAIN SQUARE
-With side inlets
-Floor: concrete and tiled
-Liquid membrane, frame: 145x145mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Domestic |
Floor | Concrete / Tiled |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Load class EN1253(lbs) | K3 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Maximum Height (mm) | 203 |
Membrane Type | Liquid Membrane |
Number of Inlets | 3 (Ø32/40mm) |
Number of inlets (Inch) | 3 (Ø1¼"/1½") |
Number of Screw Holes | 2 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Shape | Square |
Size (Inch) | 5¾x5¾ |
Size (mm) | 145x145 |
Weight (kg) | 1,86 |
Weight (lbs) | 4,1 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
