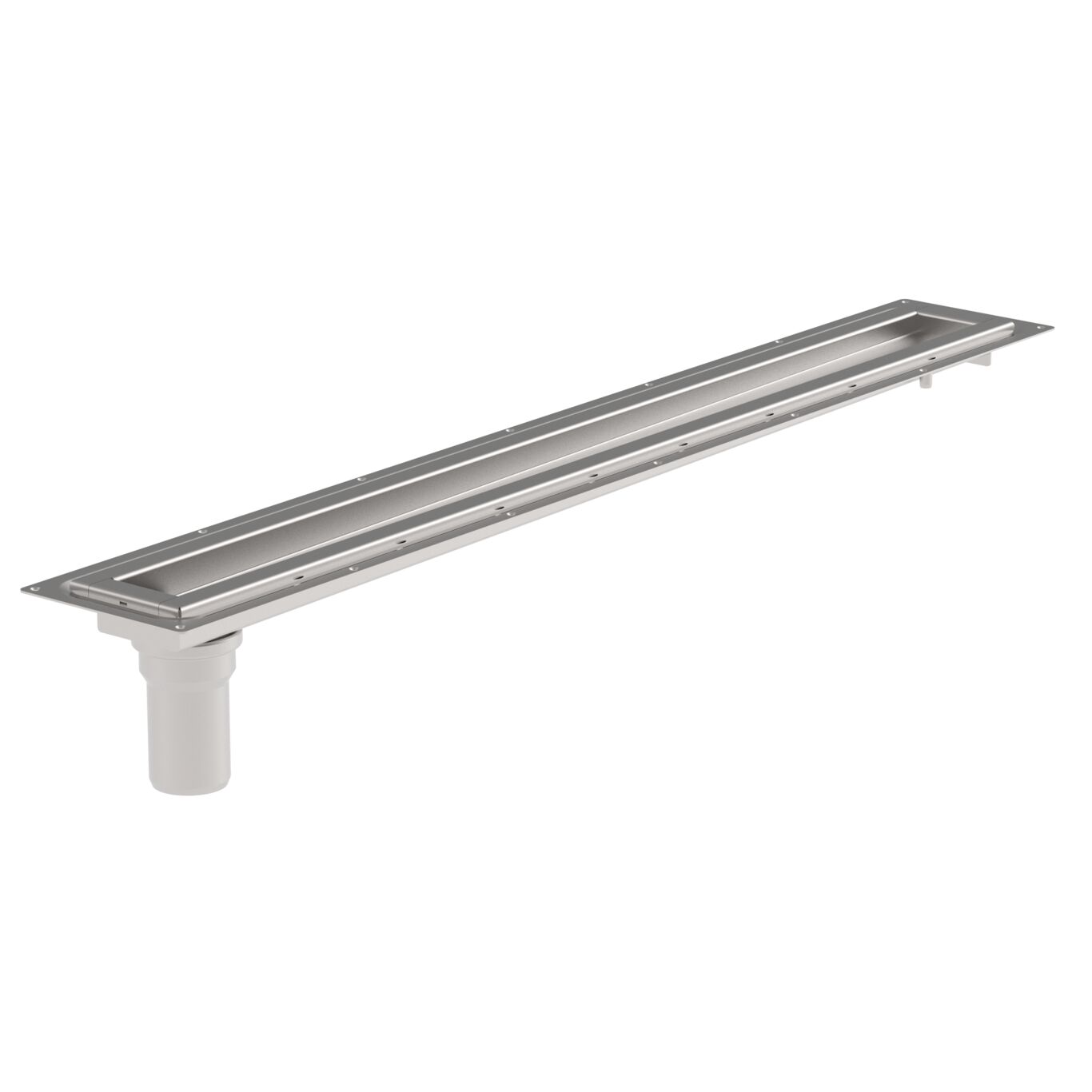

SHOWER CHANNEL WATERLINE 700 - (398.070.056.20)
×
![]()
Part Of the Series: Shower channel-Sheet membrane
Type no.: 398.070.056.20
EAN no.: 5705499138375
VVS no.: 155063007
RSK no.: 7121704
NRF no.: 3394726
Size: 50x700

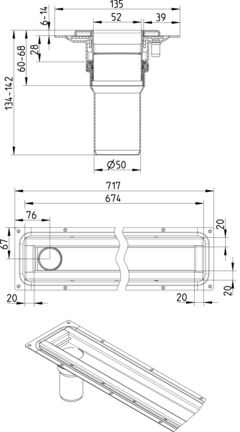

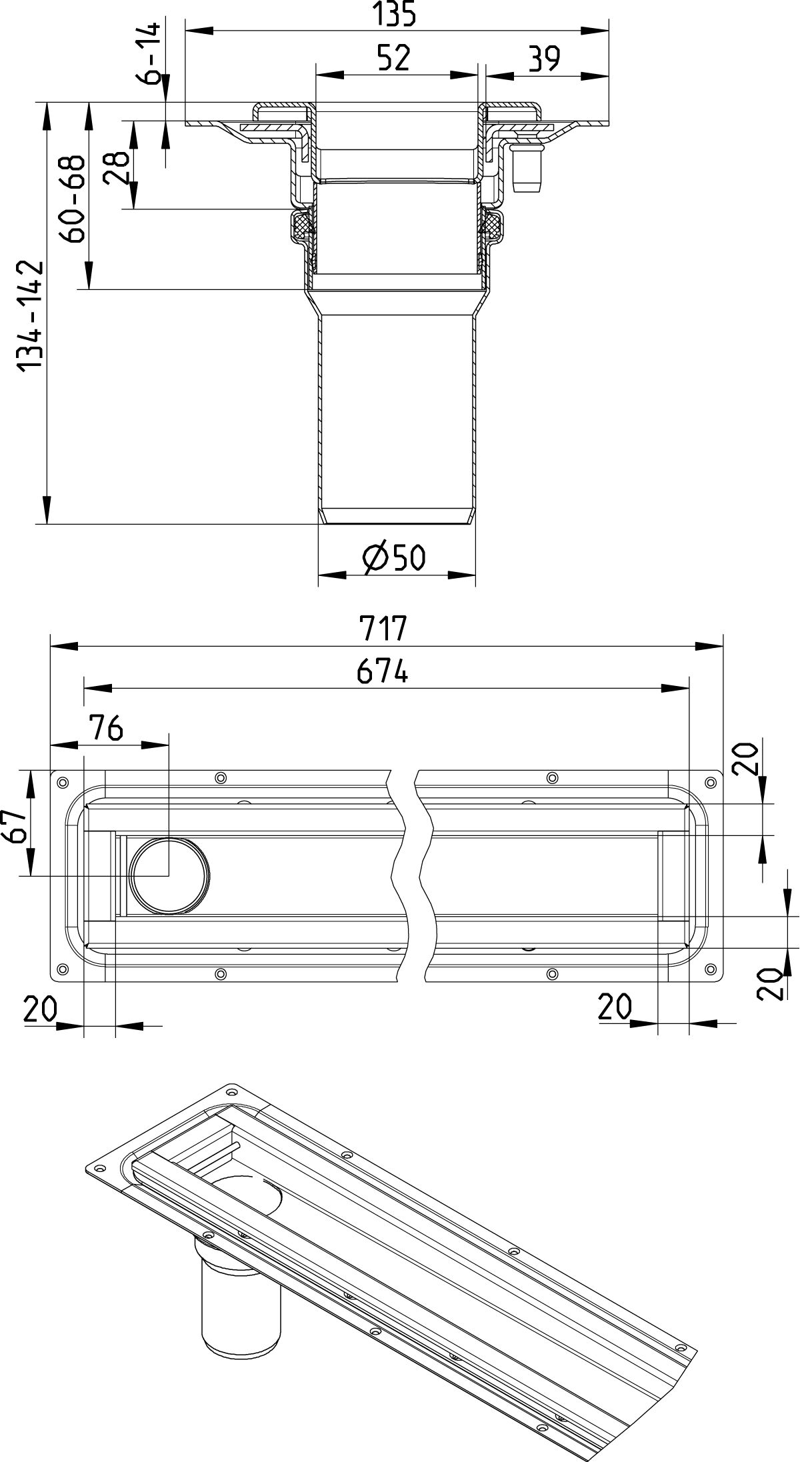

SHOWER CHANNEL WATERLINE 700
-Floor: concrete and tiled
-Frame: rectangular
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Sheet Membrane |
| Outlet Box | No |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (Inch) | 2x27½ |
| Size (mm) | 50x700 |
| Weight (kg) | 3,34 |
| Weight (lbs) | 7,36 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
