CONNECTING PIECE FOR WATERLINE - (620.300.036)
×
![]()
Part Of the Series: Spare parts-drain
Type no.: 620.300.036
EAN no.: 5705499123692
VVS no.: 155059650
CONNECTING PIECE FOR WATERLINE
-With side inlet
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |

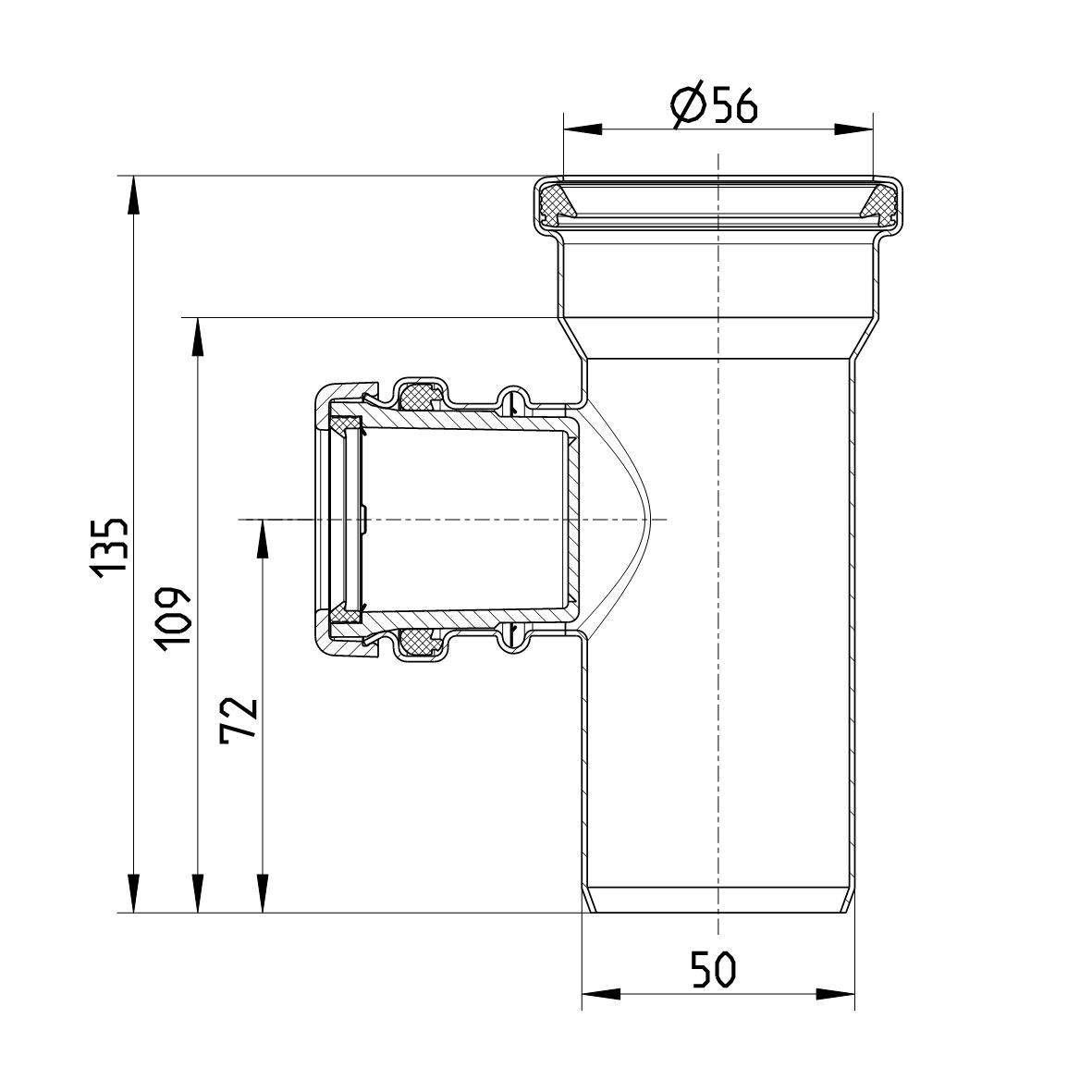

| Length (mm) | 109 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Min. height (Inch) | 5,31 |
| Minimum Height (mm) | 135 |
| Number of Inlets | 1 (Ø32/40mm) |
| Number of inlets (Inch) | 1 (Ø1¼"/1½") |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,27 |
| Weight (lbs) | 0,6 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
