SHOWER CHANNEL WATERLINE 900 - (378.090.056.20 B)
×
![]()
Part Of the Series: Shower channel-Liquid membrane
Type no.: 378.090.056.20 B
EAN no.: 5705499139242
VVS no.: 155062109
Size: 50x900

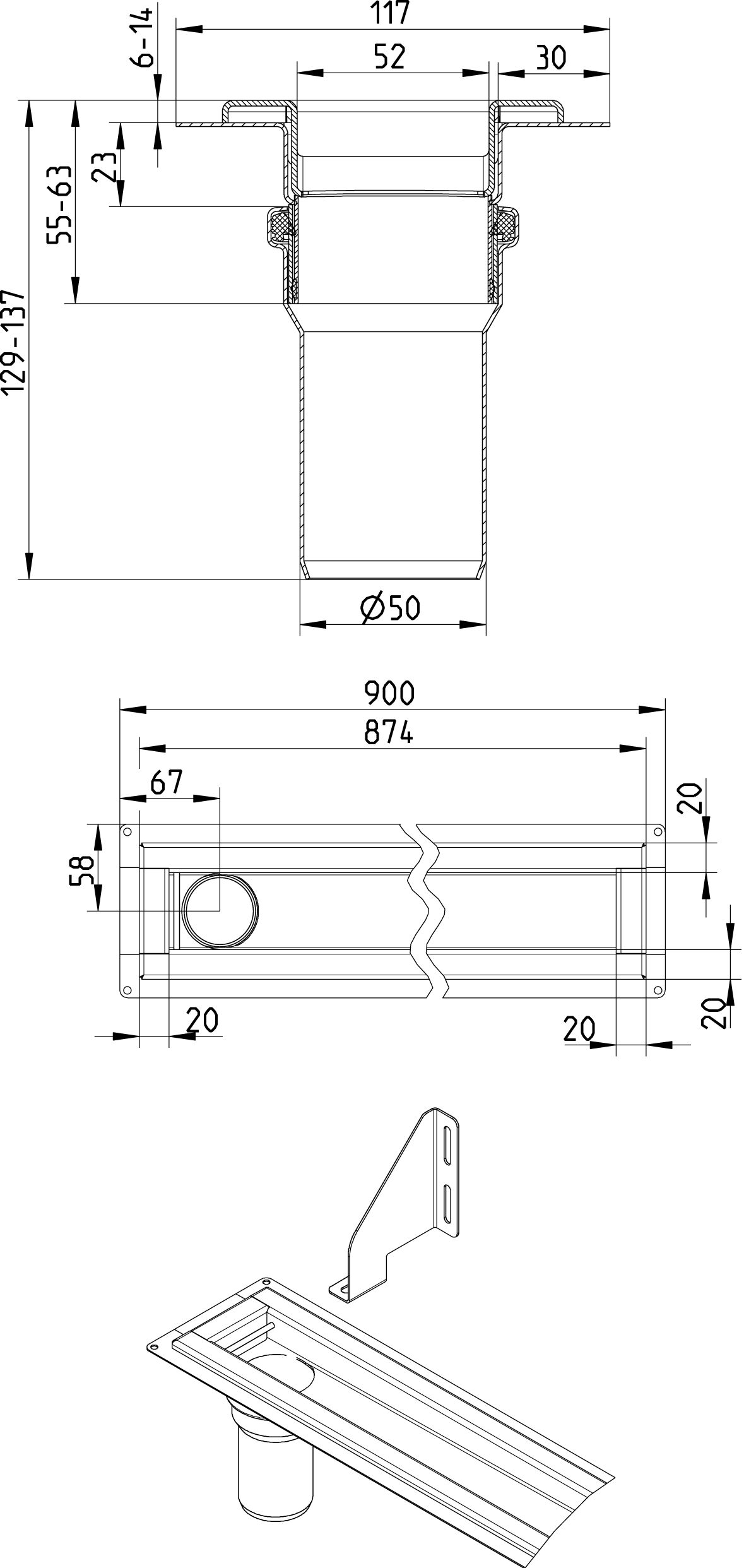

SHOWER CHANNEL WATERLINE 900
-Floor: concrete and tiled
-Frame: rectangular
-Outlet: Ø50mm, vertical
-Colour: Black
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Outlet Box | No |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (Inch) | 2x35⅜ |
| Size (mm) | 50x900 |
| Weight (kg) | 2,84 |
| Weight (lbs) | 6,26 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
