SHOWER CHANNEL WATERLINE 700 - (378.070.056.20)
Part Of the Series: Shower channel-Liquid membrane
Type no.: 378.070.056.20
EAN no.: 5705499138146
VVS no.: 155062007
RSK no.: 7121692
LVI no.: 3304415
Size: 50x700

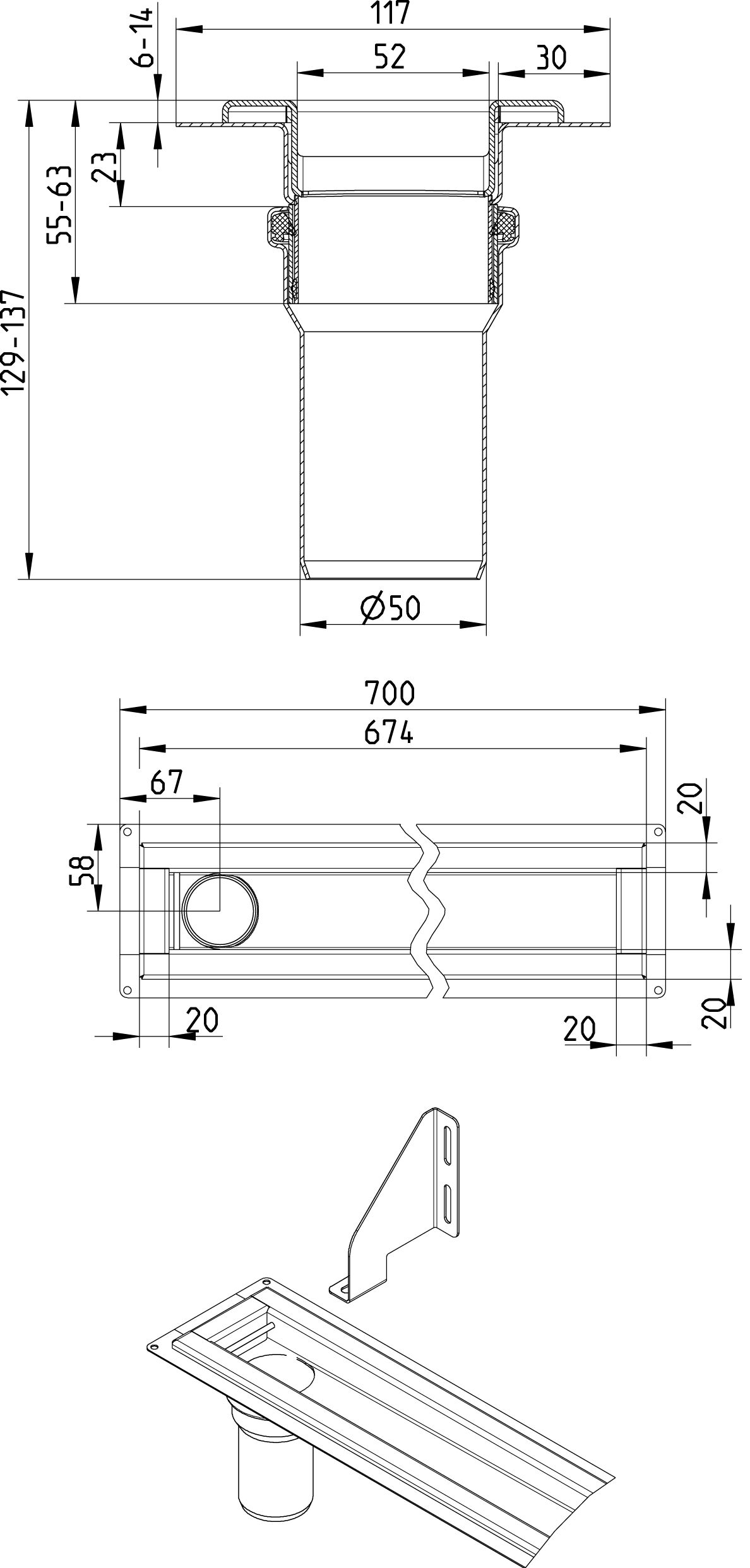

SHOWER CHANNEL WATERLINE 700
-Floor: concrete and tiled
-Frame: rectangular
-Outlet: Ø50mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Domestic |
Floor | Concrete / Tiled |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | Liquid Membrane |
Outlet Box | No |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Vertical |
Outlet Placement | End |
Shape | Rectangular |
Size (Inch) | 2x27½ |
Size (mm) | 50x700 |
Weight (kg) | 2,29 |
Weight (lbs) | 5,05 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
