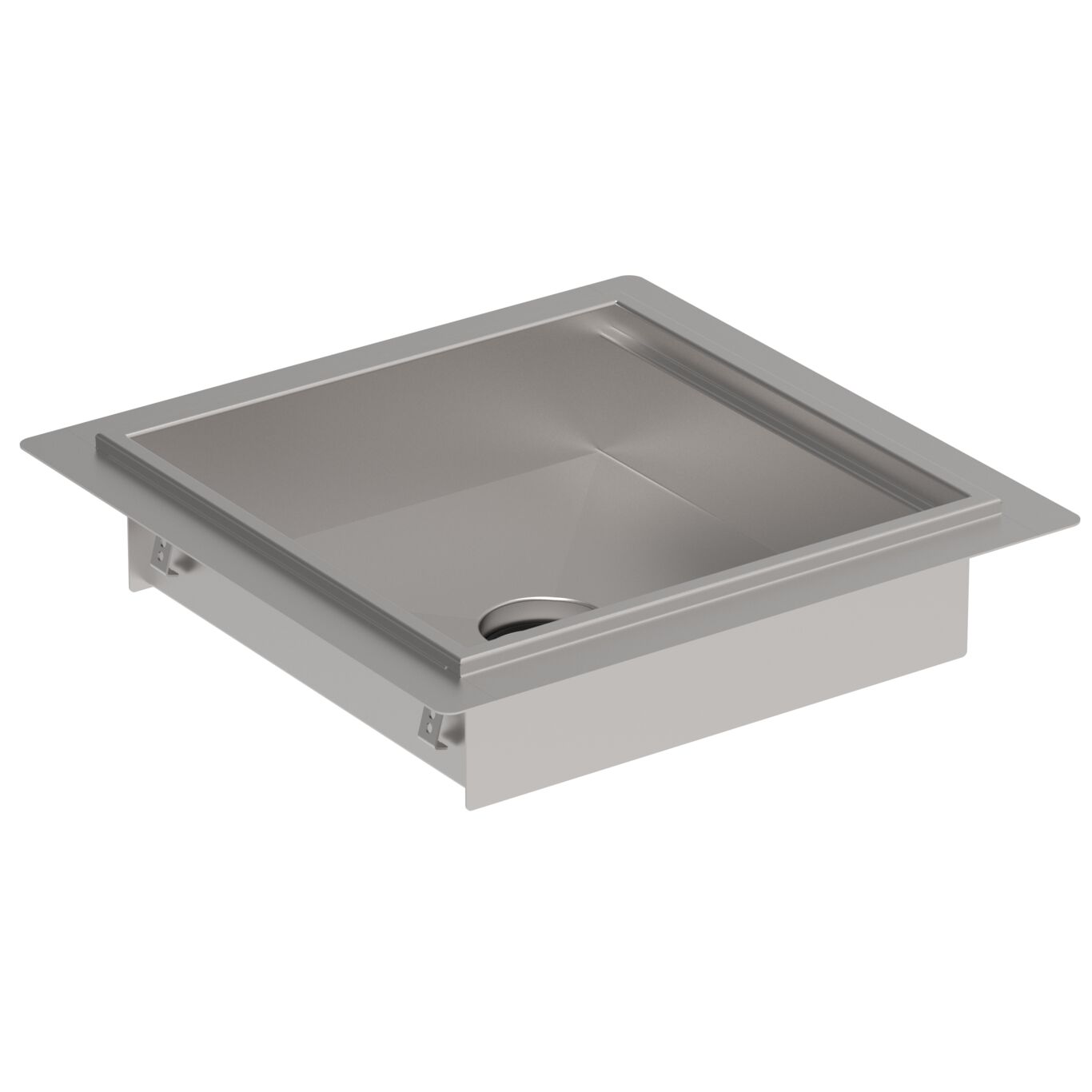

KITCHEN CHANNEL 500x500 - (664GH005-15)
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 664GH005-15
EAN no.: 5705499126082
Size: 500x500
KITCHEN CHANNEL 500x500
-Floor: concrete, tiled and resin
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | Liquid Membrane |
Minimum Height (mm) | 211 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Shape | Square |
Size (Inch) | 19⅝x19⅝ |
Size (mm) | 500x500 |
Weight (kg) | 17,42 |
Weight (lbs) | 38,4 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
