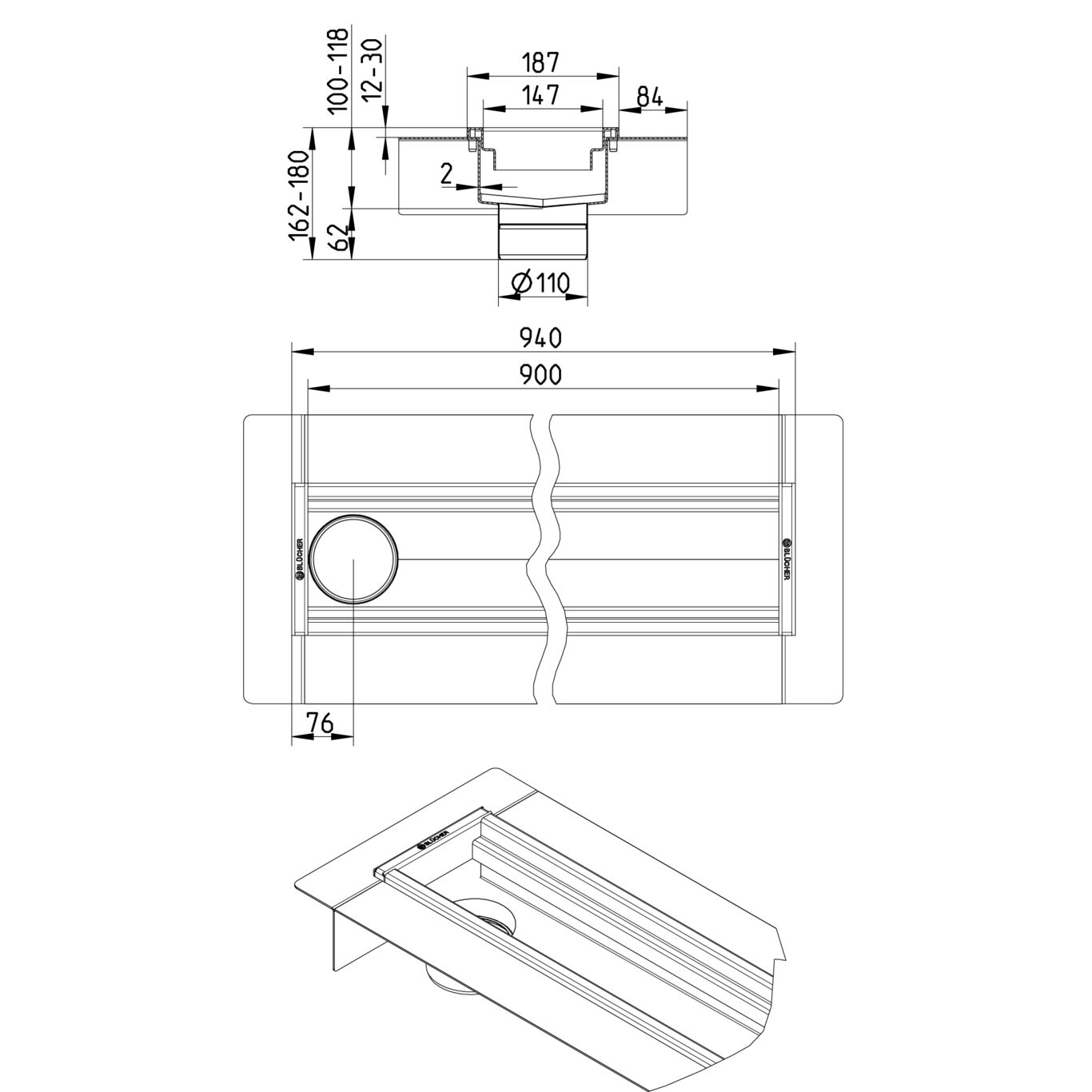

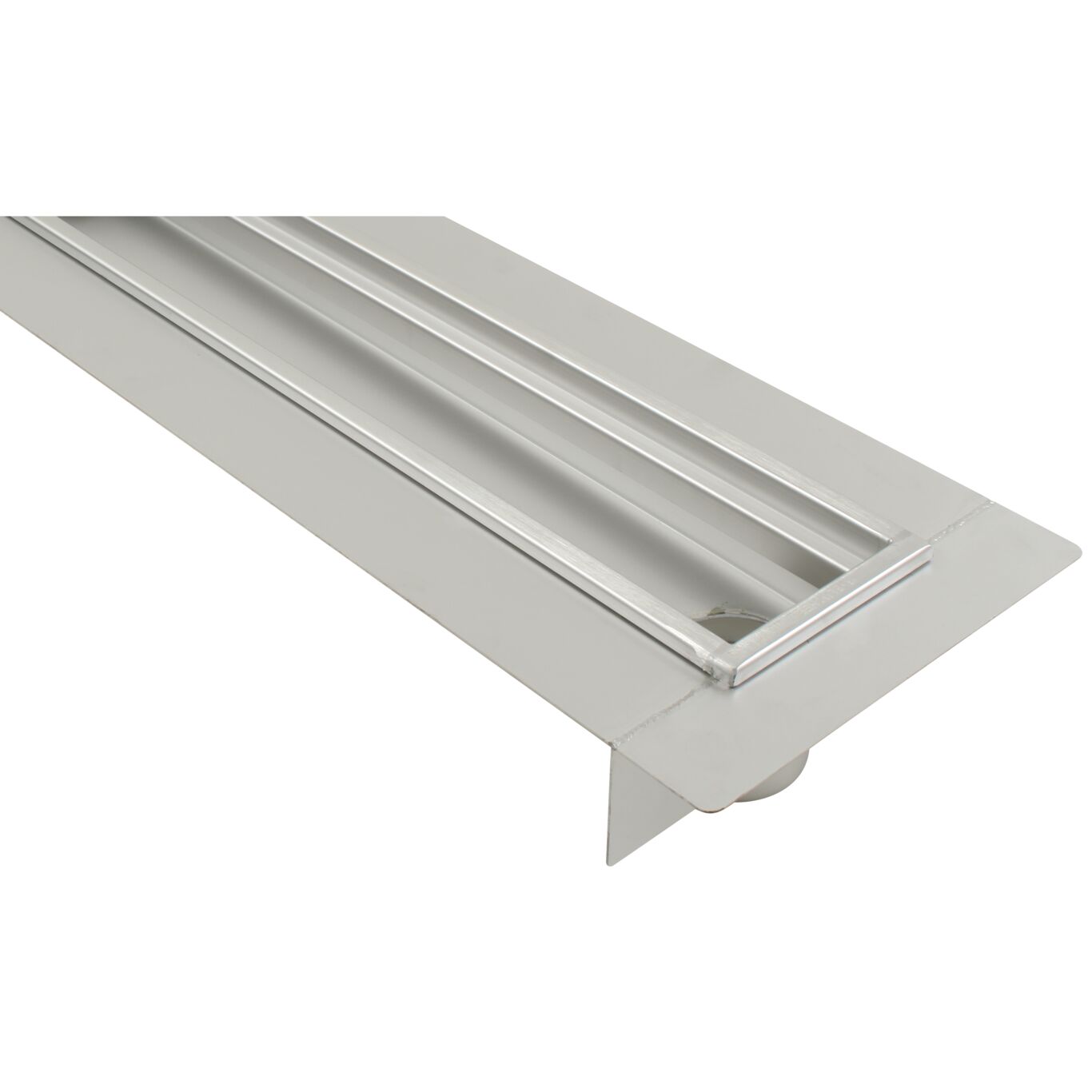

CHANNEL 150x900 END OUTLET - (678CH009-00BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 678CH009-00BA

EAN no.: 5705499135121

RSK no.: 7121807

LVI no.: 3304948

Size: 150x900

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 180
Membrane Type Liquid Membrane
Minimum Height (mm) 162
Outlet Box No
Outlet dia. (Inch) 4
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (Inch) 5⅞x35⅜
Size (mm) 150x900
Weight (kg) 12,08
Weight (lbs) 26,63
