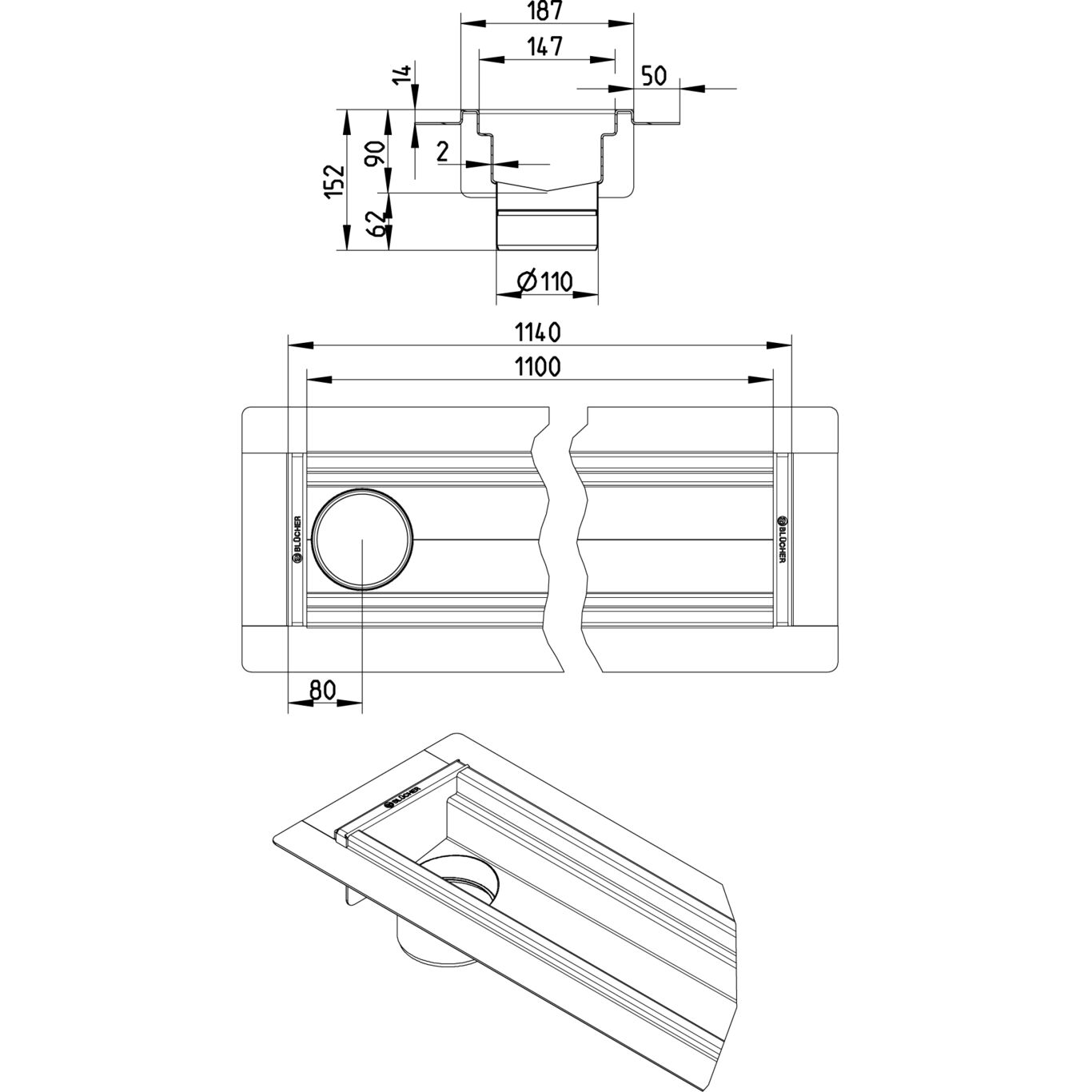

CHANNEL 150x1100 END OUTLET - (674CH011-00BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674CH011-00BA

EAN no.: 5705499135077

RSK no.: 7121793

NRF no.: 3397114

LVI no.: 3304940

Size: 150x1100

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 152
Outlet Box No
Outlet dia. (Inch) 4
Outlet Diameter (mm) 110
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (Inch) 5⅞x43¼
Size (mm) 150x1100
Weight (kg) 9,06
Weight (lbs) 19,97
