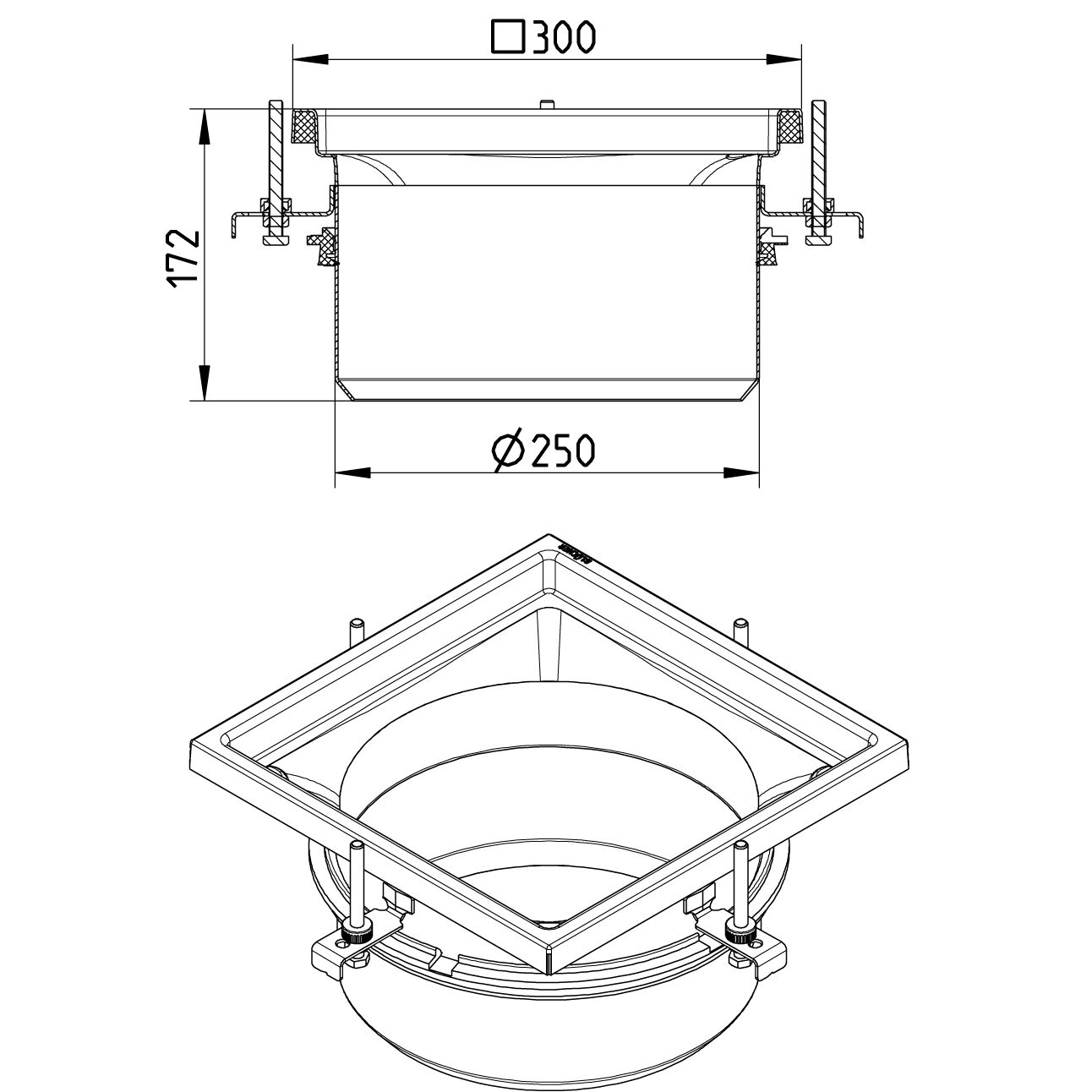

UPPER PART - (774.403.000)
×
![]()
Part Of the Series: Upper part-No membrane-300
Type no.: 774.403.000
EAN no.: 5705499112115
LVI no.: 3303826
Size: 300x300
UPPER PART
-Floor: concrete and tiled
-Frame: 300x300mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Number of Screw Holes | 0 |
| Outlet dia. (Inch) | 10 |
| Outlet Diameter (mm) | 250 |
| Shape | Square |
| Size (Inch) | 11¾x11¾ |
| Size (mm) | 300x300 |
| Weight (kg) | 3,77 |
| Weight (lbs) | 8,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
