LADDER GRATING SQUARE - (790.268.000.25)
×
![]()
Part Of the Series: Grating-Drain-300
Type no.: 790.268.000.25
EAN no.: 5705499113679
NRF no.: 3396422
LVI no.: 3304045
Size: 300x300

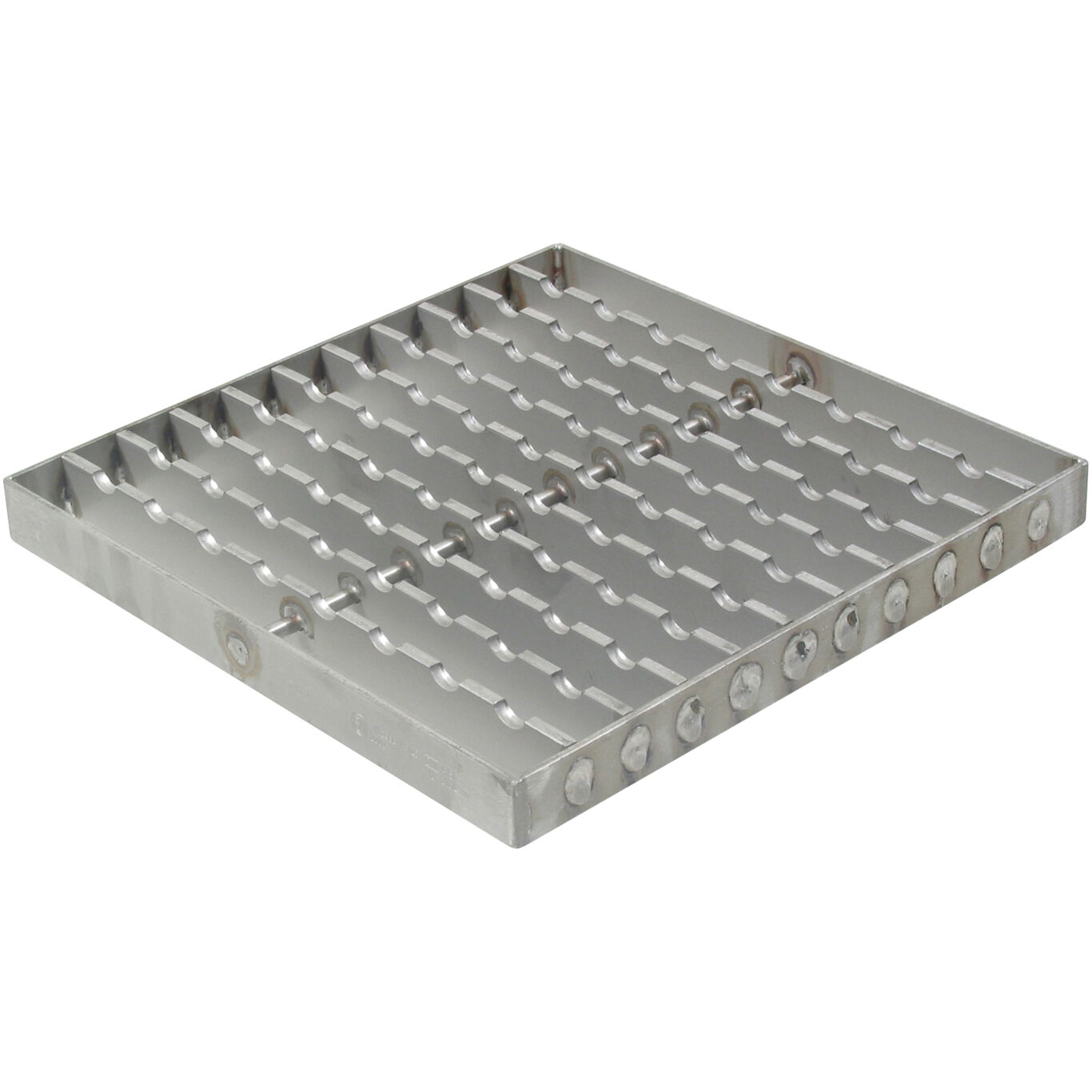

LADDER GRATING SQUARE
-Grating: 268x268mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | M125 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 40 |
| Non-slip | R11 |
| Number of Screws | 0 |
| Shape | Square |
| Size (Inch) | 11¾x11¾ |
| Size (mm) | 300x300 |
| Weight (kg) | 5,23 |
| Weight (lbs) | 11,53 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
