LOWER PART - (760.003.110)
×
![]()
Part Of the Series: Lower part-250
Type no.: 760.003.110
EAN no.: 5705499109306
NRF no.: 3396326
LVI no.: 3303761

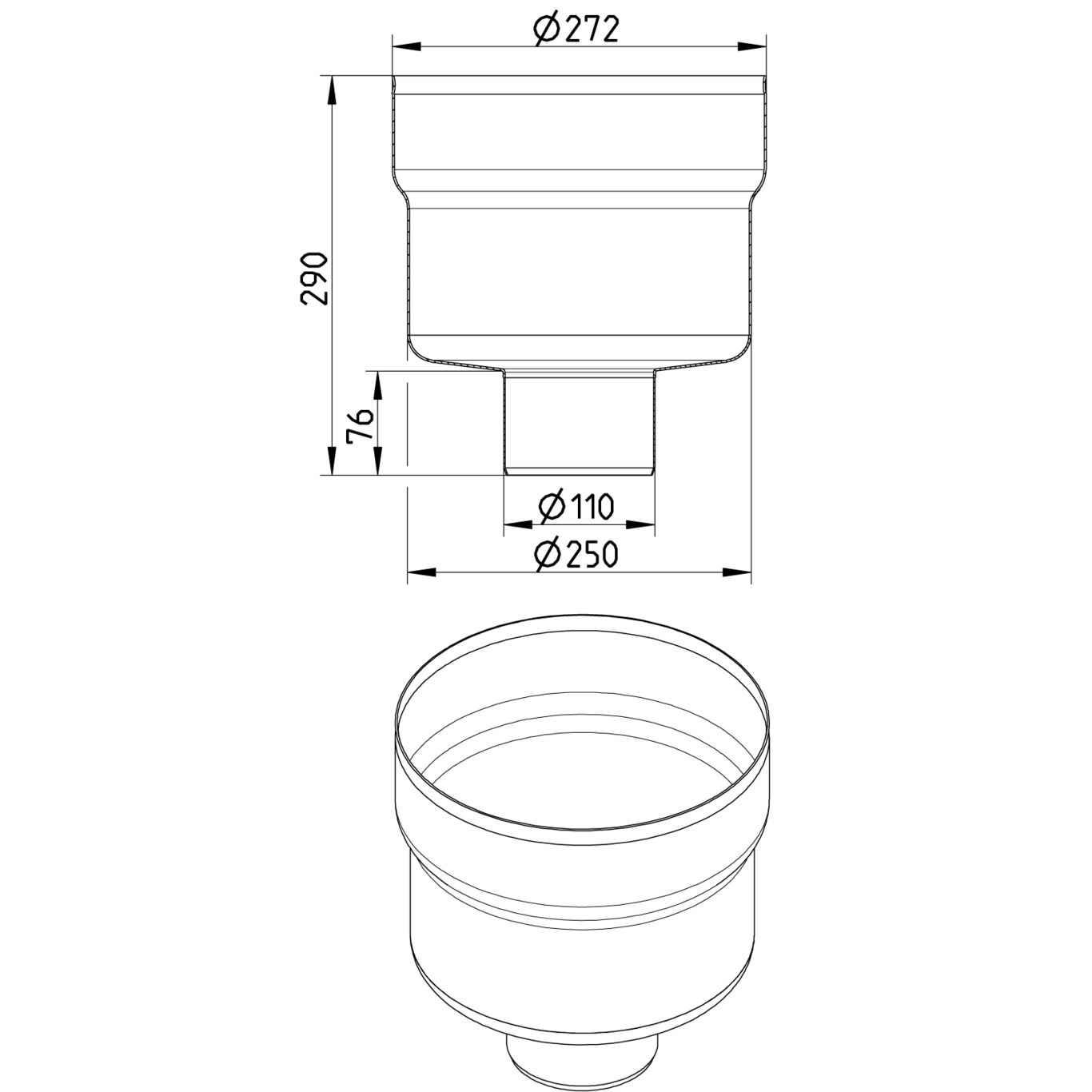

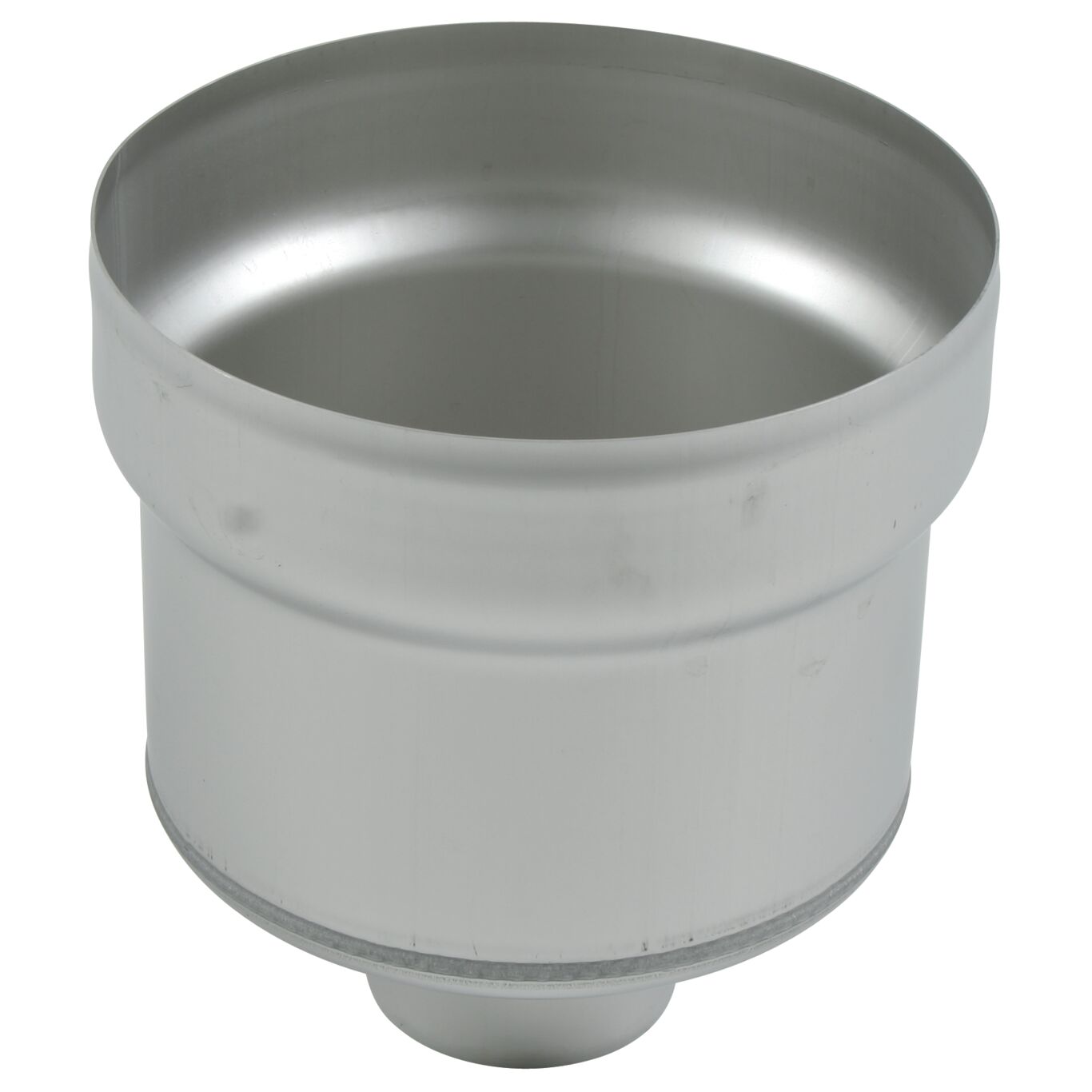

LOWER PART
-No membrane flange
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 290 |
| Outlet dia. (Inch) | 4 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Weight (kg) | 3,21 |
| Weight (lbs) | 7,08 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
