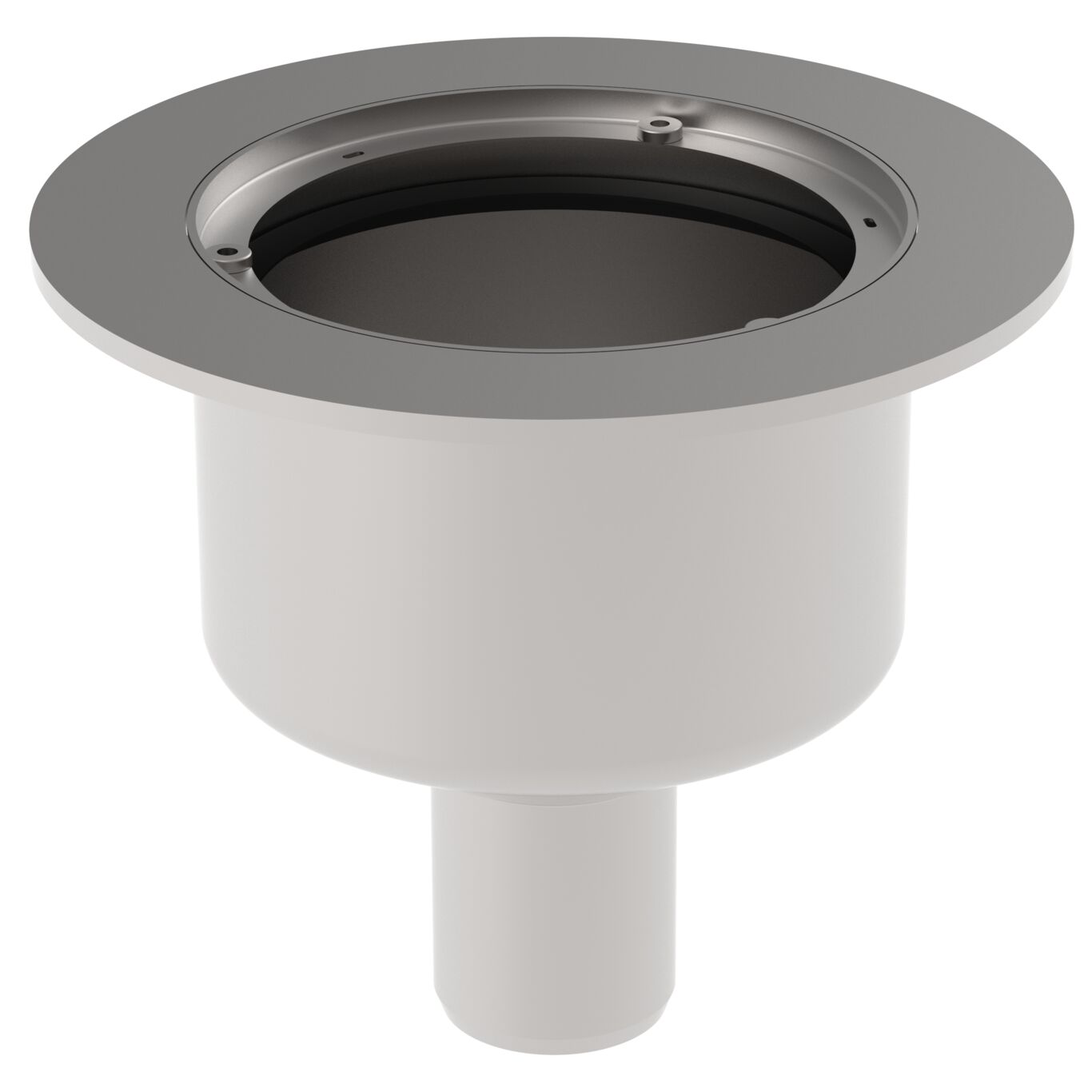

LOWER PART MARINE - (470.200.050 S)
Part Of the Series: Marine-lower part-welding flange-steel
Type no.: 470.200.050 S
EAN no.: 5705499106206
NRF no.: 3397025

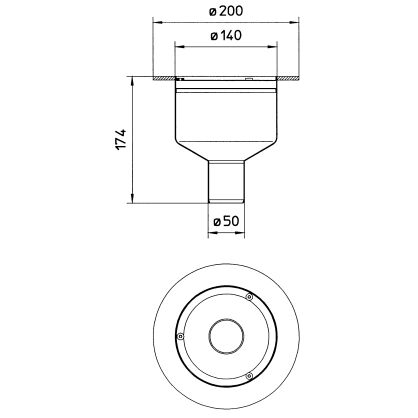

LOWER PART MARINE
-With welding flange
-Deck: steel
-Flange: Ø200mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Deck | Steel |
EC/MED (Deck) | A0-A60 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 174 |
Number of Inlets | 0 |
Outlet dia. (Inch) | 2 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Vertical |
Weight (kg) | 1,30 |
Weight (lbs) | 2,87 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB00000MA, Rev3, Marine Drains Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA DNV - TAP0000023-rev4, Sanitary discharge pipes Bureau Veritas - 03456-H0, ShipDrains KR - Type Approval CPH42135-PE001 RU - 0212321 Drains-21 ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM
