LOWER PART MARINE - (470.900.050 S)
×
![]()
Part Of the Series: Marine-lower part-no welding
Type no.: 470.900.050 S
EAN no.: 5705499133318
NRF no.: 3397028

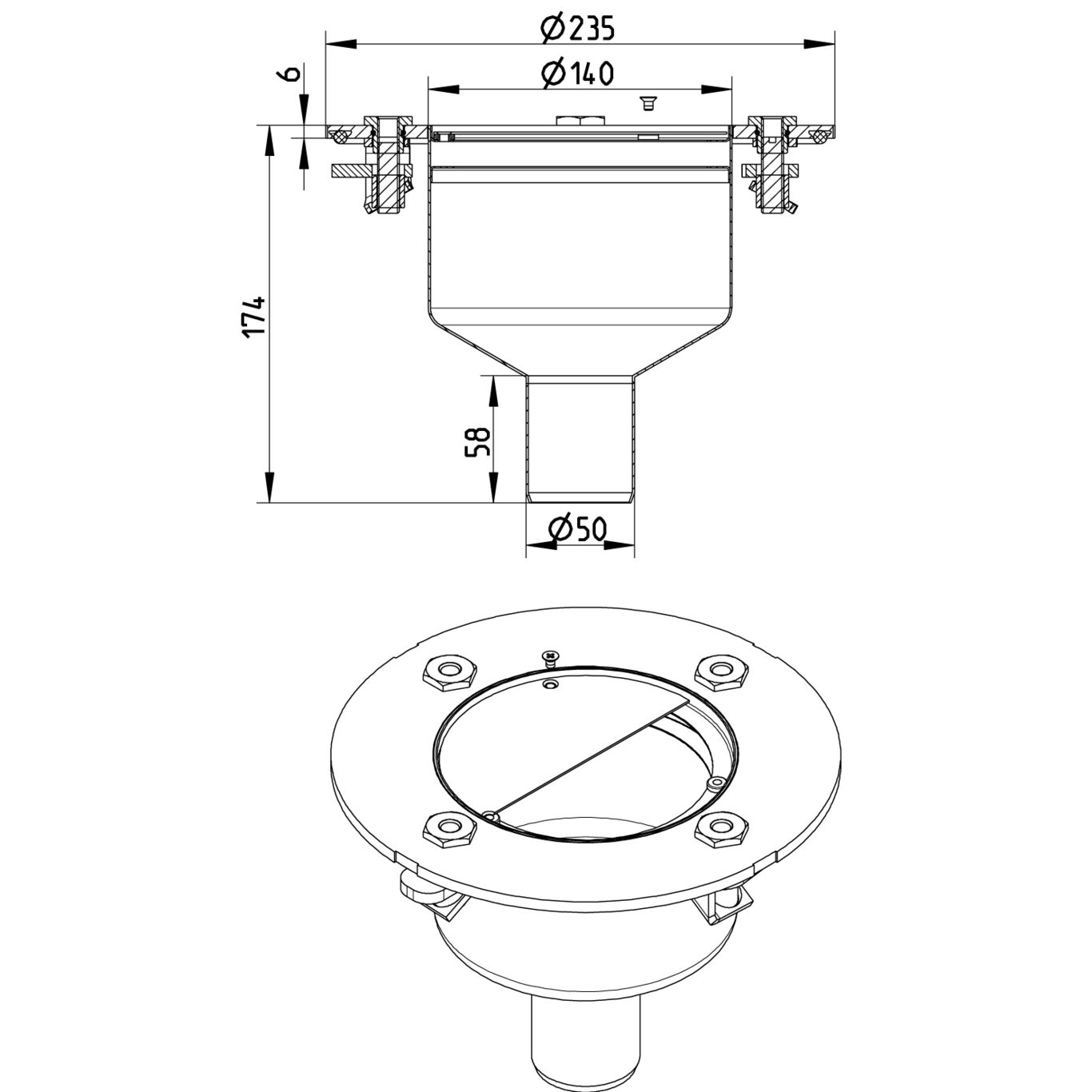

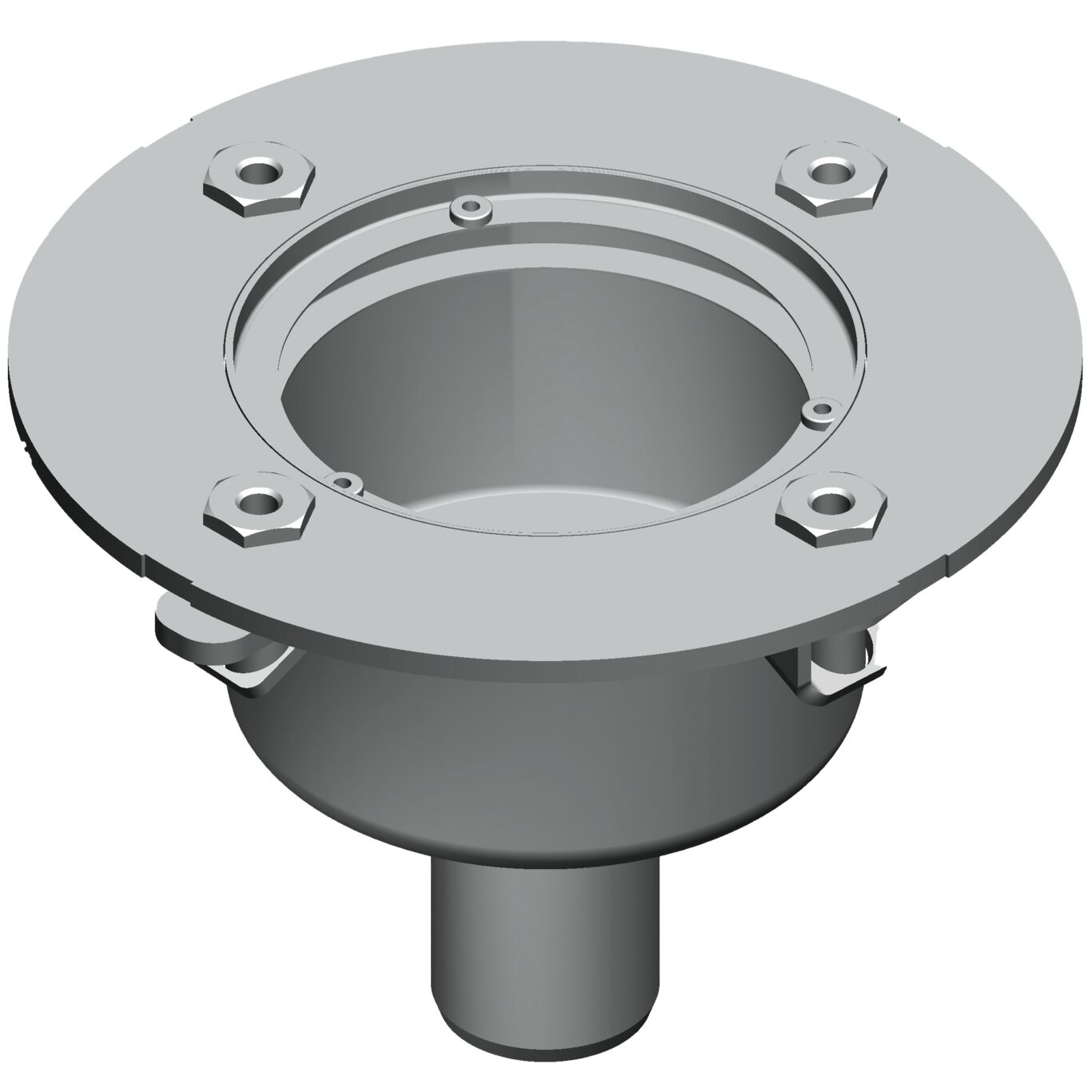

LOWER PART MARINE
-Non-welded
-Deck: aluminium and steel
-Flange: Ø235mm
-Outlet: Ø50mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Aluminium|Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 174 |
| Number of Inlets | 0 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Weight (kg) | 2,35 |
| Weight (lbs) | 5,18 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
DNV - MEDB0000226, Rev2 , Non-welded penetrations
TÜRK LOYDU - 25041616077231247
BLÜCHER® Drains EPD
