LOWER PART MULTI, LOW - (383.200.050)
×
![]()
Part Of the Series: MULTI lower part
Type no.: 383.200.050
EAN no.: 5705499133288
NRF no.: 3394739
LVI no.: 3303875

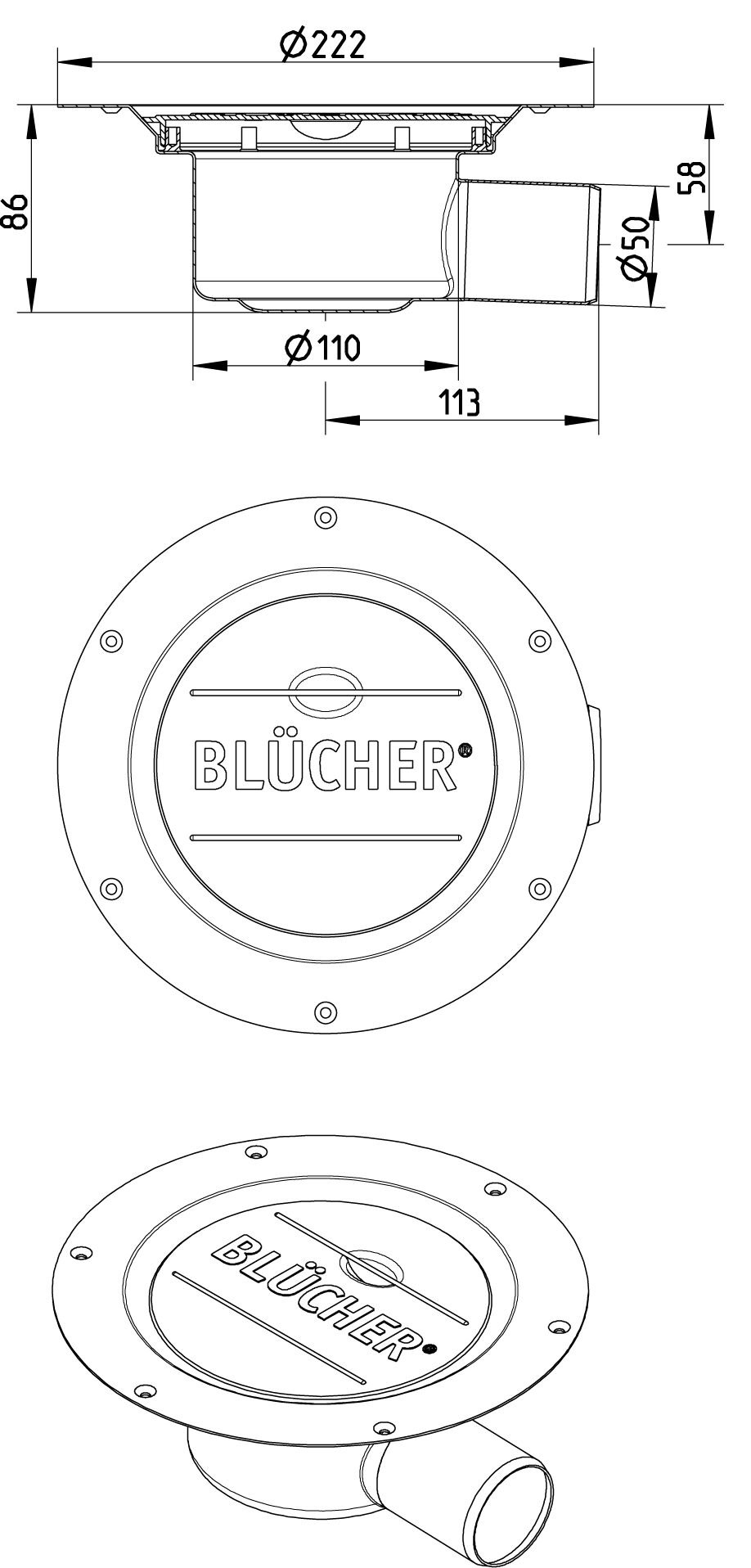

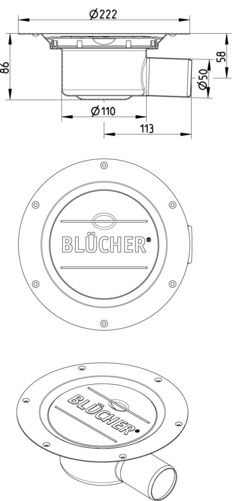

LOWER PART MULTI, LOW
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 86 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Weight (kg) | 0,63 |
| Weight (lbs) | 1,39 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
