LOWER PART - (771.003.110 S)
Part Of the Series: Lower part-250
Type no.: 771.003.110 S
EAN no.: 5705499111279
VVS no.: 153019376
LVI no.: 3303786

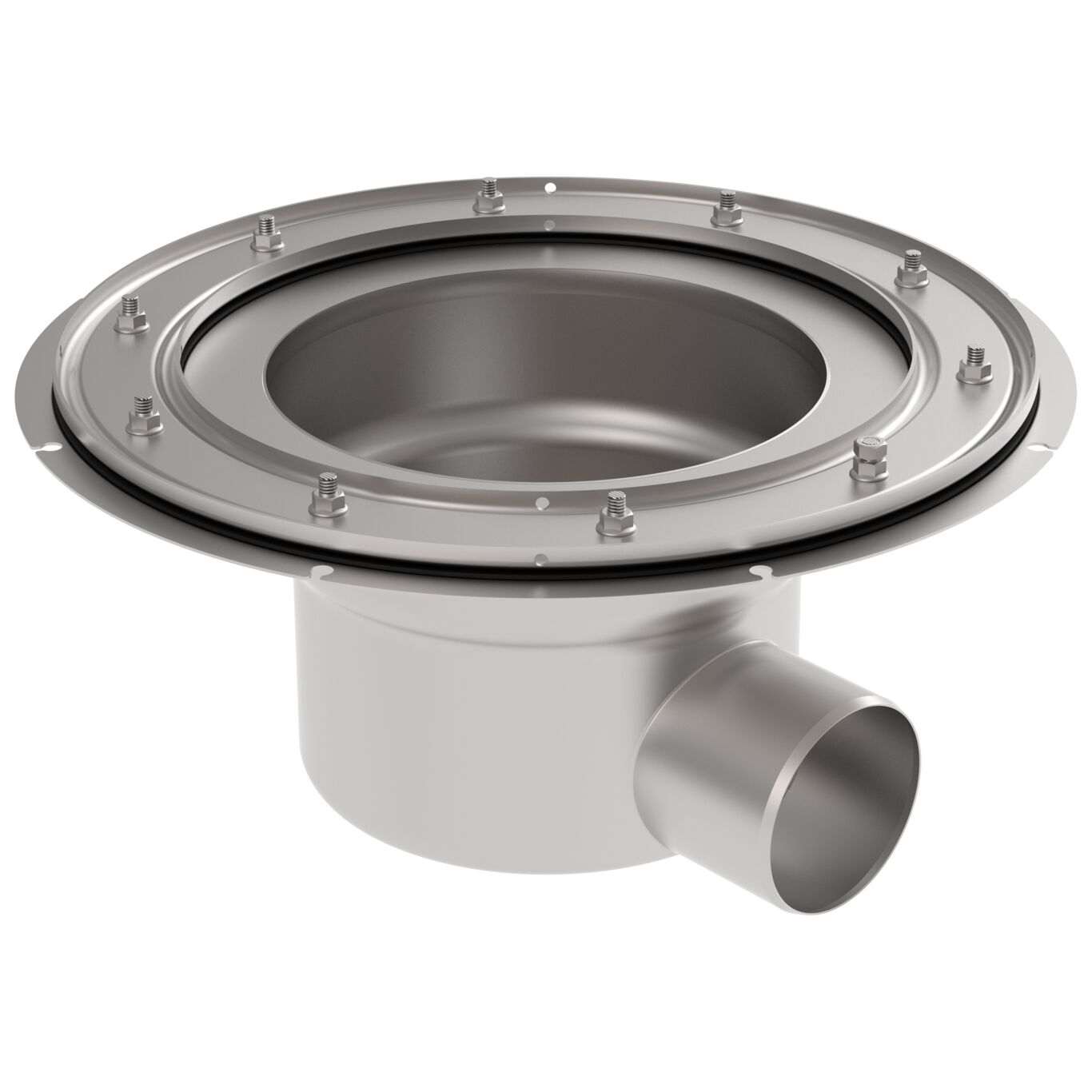

LOWER PART
-Sheet membrane flange
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Industrial |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | Sheet Membrane |

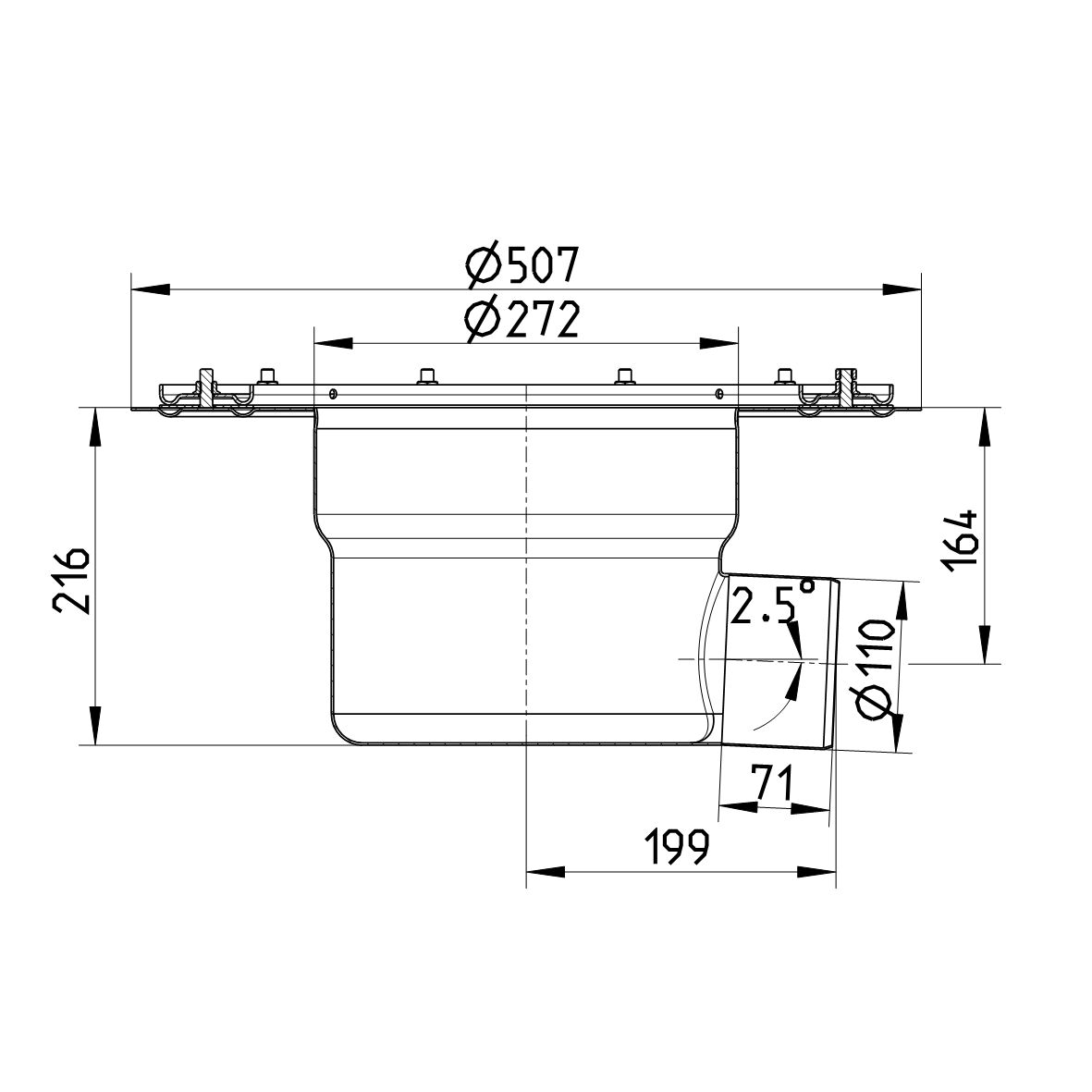

Minimum Height (mm) | 216 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Horizontal |
Weight (kg) | 8,36 |
Weight (lbs) | 18,43 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
