UPPER PART - (774.403.000.01 S)
Part Of the Series: Upper part-No membrane-300
Type no.: 774.403.000.01 S
EAN no.: 5705499112146
LVI no.: 3303829
Size: 300x300

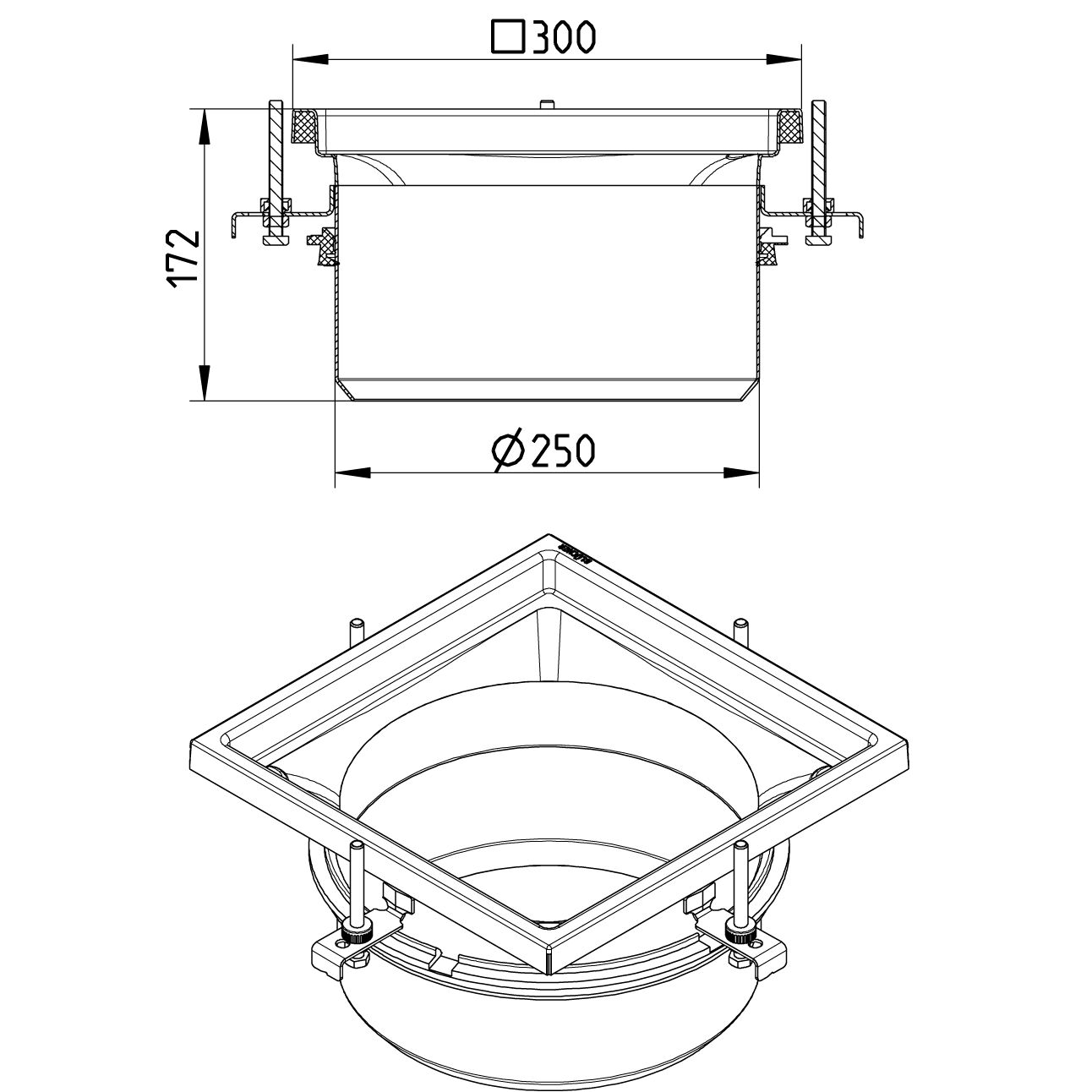

UPPER PART
-With screw lock
-Floor: concrete and tiled
-Frame: 300x300mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Industrial |
Floor | Concrete / Tiled |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Number of Screw Holes | 2 |
Outlet dia. (Inch) | 10 |
Outlet Diameter (mm) | 250 |
Shape | Square |
Size (Inch) | 11¾x11¾ |
Size (mm) | 300x300 |
Weight (kg) | 3,77 |
Weight (lbs) | 8,31 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
