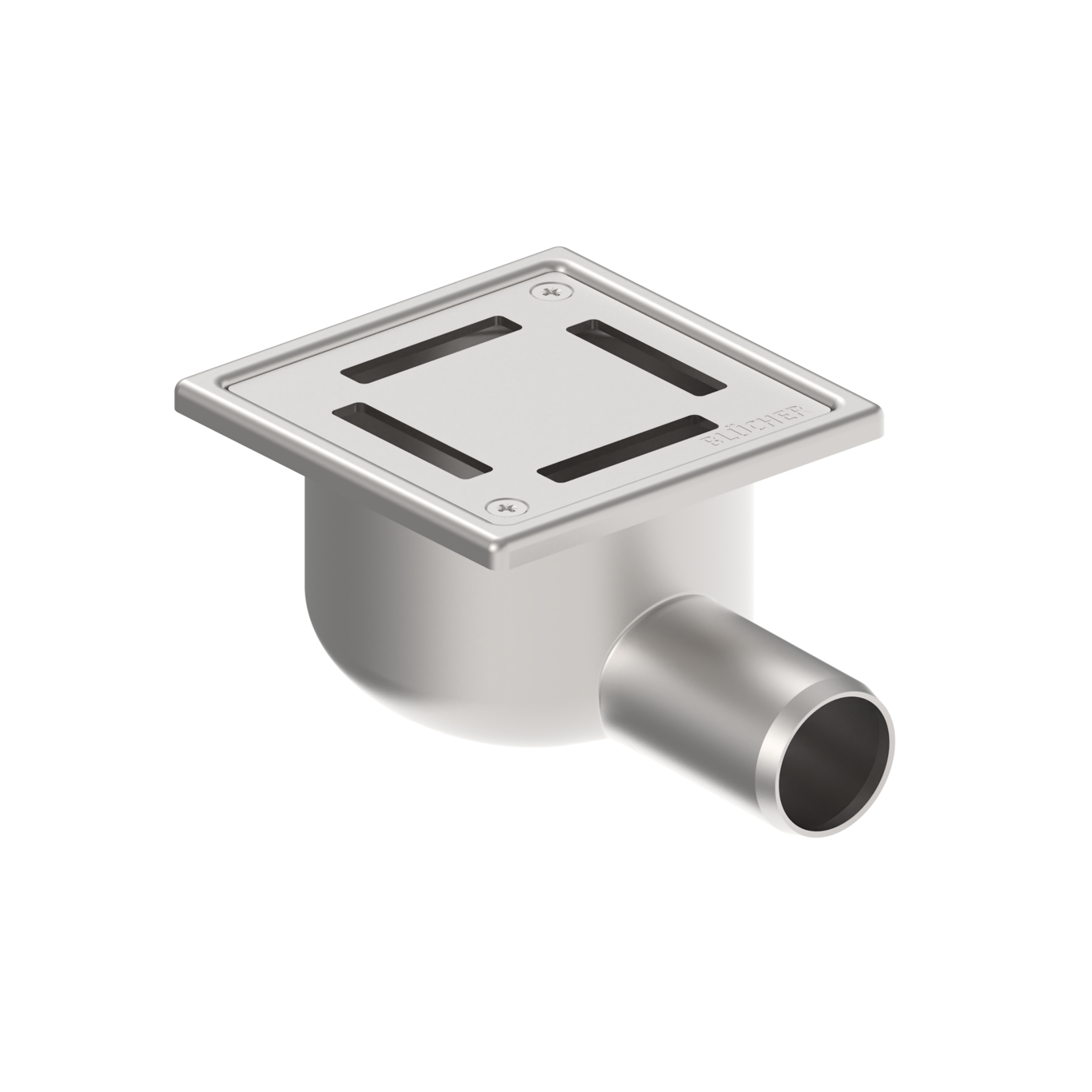

COMPACT DRAIN - (184.105.032)
×
![]()
Part Of the Series: Drain-No membrane-97
Type no.: 184.105.032
EAN no.: 5705499002072
Size: 97x97
COMPACT DRAIN
-Floor: concrete and tiled
-Frame: 97x97mm
-Outlet: Ø32mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Screws | 2 |
| Outlet Diameter (mm) | 32 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (mm) | 97x97 |
| Weight (kg) | 0,32 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
