INDUSTRIAL DRAIN - (760.402.110.01 S)
Part Of the Series: Drain-No membrane-200
Type no.: 760.402.110.01 S
EAN no.: 5705499109412
LVI no.: 3303509
Size: 200x200

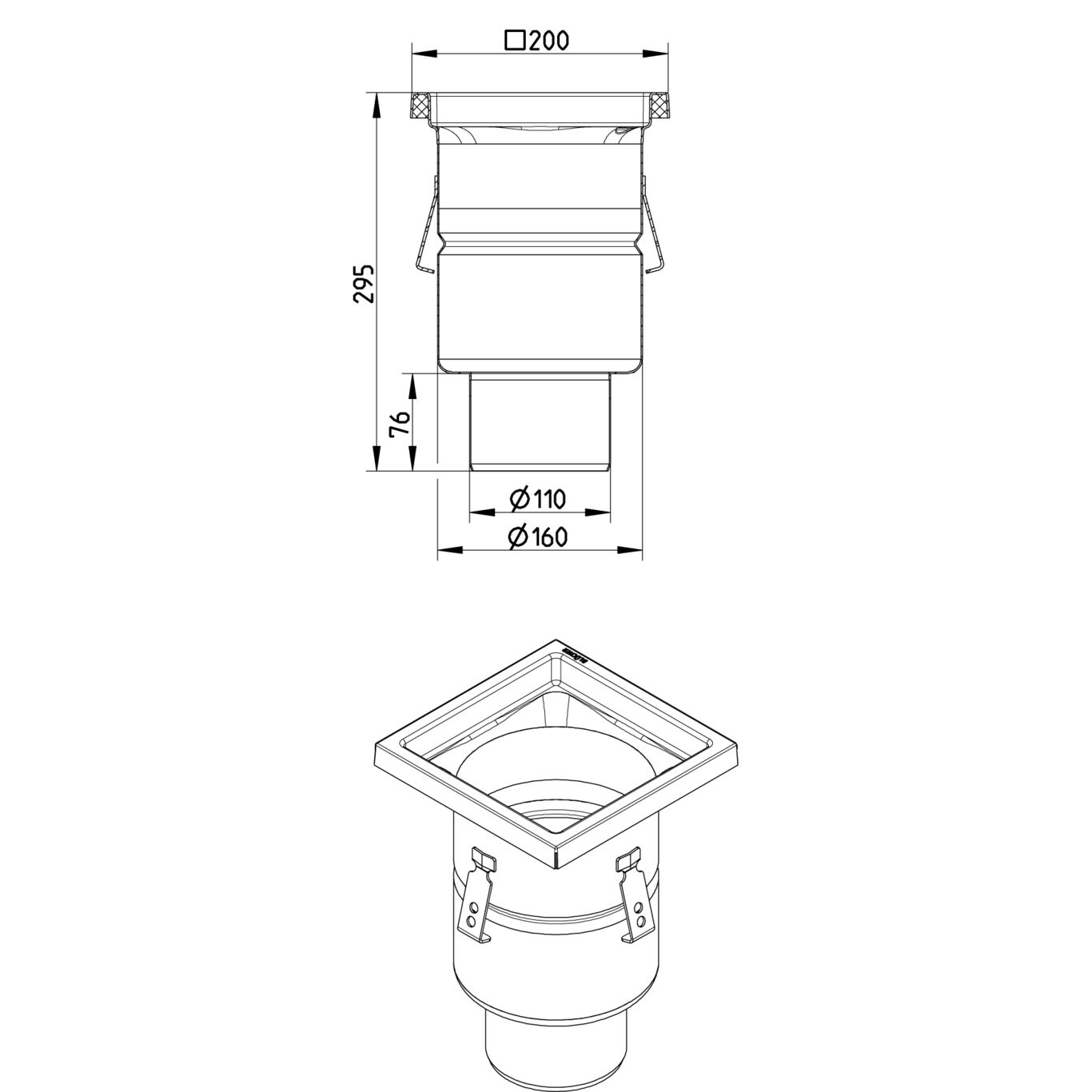

INDUSTRIAL DRAIN
-With screw lock
-Floor: concrete and tiled
-No membrane, frame: 200x200mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Adjustable | No |
Field of Application | Industrial |
Floor | Concrete / Tiled |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | No Membrane |
Number of Inlets | 0 |
Number of inlets (Inch) | 0 |
Number of Screw Holes | 1 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Shape | Square |
Size (Inch) | 7⅞x7⅞ |
Size (mm) | 200x200 |
Weight (kg) | 2,14 |
Weight (lbs) | 4,72 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
