UPPER PART CIRCLE - (250.300.000 S)
Part Of the Series: Upper part-Vinyl-155
Type no.: 250.300.000 S
EAN no.: 5705499107029
VVS no.: 153612720
Size: Ø155

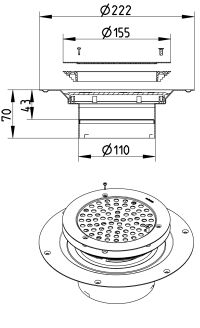

UPPER PART CIRCLE
-With supporting ring for water trap
-Floor: vinyl
-Grating: Ø155mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Field of Application | Domestic |
Floor | Vinyl |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Load class EN1253(lbs) | K3 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 70 |
Number of Screw Holes | 3 |
Outlet dia. (Inch) | 4 |
Outlet Diameter (mm) | 110 |
Shape | Round |
Size (Inch) | Ø6⅛ |
Size (mm) | Ø155 |
Weight (kg) | 0,55 |
Weight (lbs) | 1,21 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
