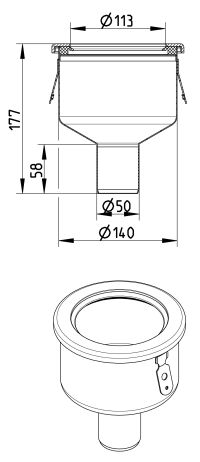

LOWER PART - (150.000.050 S)
×
![]()
Part Of the Series: Lower part-110
Type no.: 150.000.050 S
EAN no.: 5705499107531
LOWER PART
-No membrane flange
-Outlet: Ø50mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 177 |
| Number of Inlets | 0 |
| Number of inlets (Inch) | 0 |
| Outlet dia. (Inch) | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Vertical |
| Weight (kg) | 0,94 |
| Weight (lbs) | 2,07 |
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
