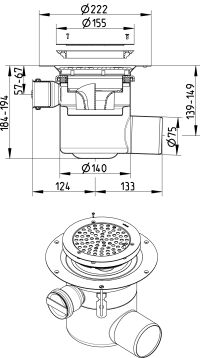

ADJUSTABLE SHOWER DRAIN CIRCLE - (211.303.075)
Part Of the Series: Drain-Vinyl-155
Type no.: 211.303.075
EAN no.: 5705499123722
LVI no.: 3305777
Size: Ø155
ADJUSTABLE SHOWER DRAIN CIRCLE
-With side inlets Ø50mm
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Field of Application | Domestic |
Floor | Vinyl |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Load class EN1253(lbs) | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 193 |
Minimum Height (mm) | 183 |
Number of Inlets | 3 (Ø50mm) |
Number of inlets (Inch) | 3 (Ø2") |
Number of Screw Holes | 3 |
Outlet dia. (Inch) | 3 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Horizontal |
Shape | Round |
Size (Inch) | Ø6⅛ |
Size (mm) | Ø155 |
Weight (kg) | 1,96 |
Weight (lbs) | 4,32 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
