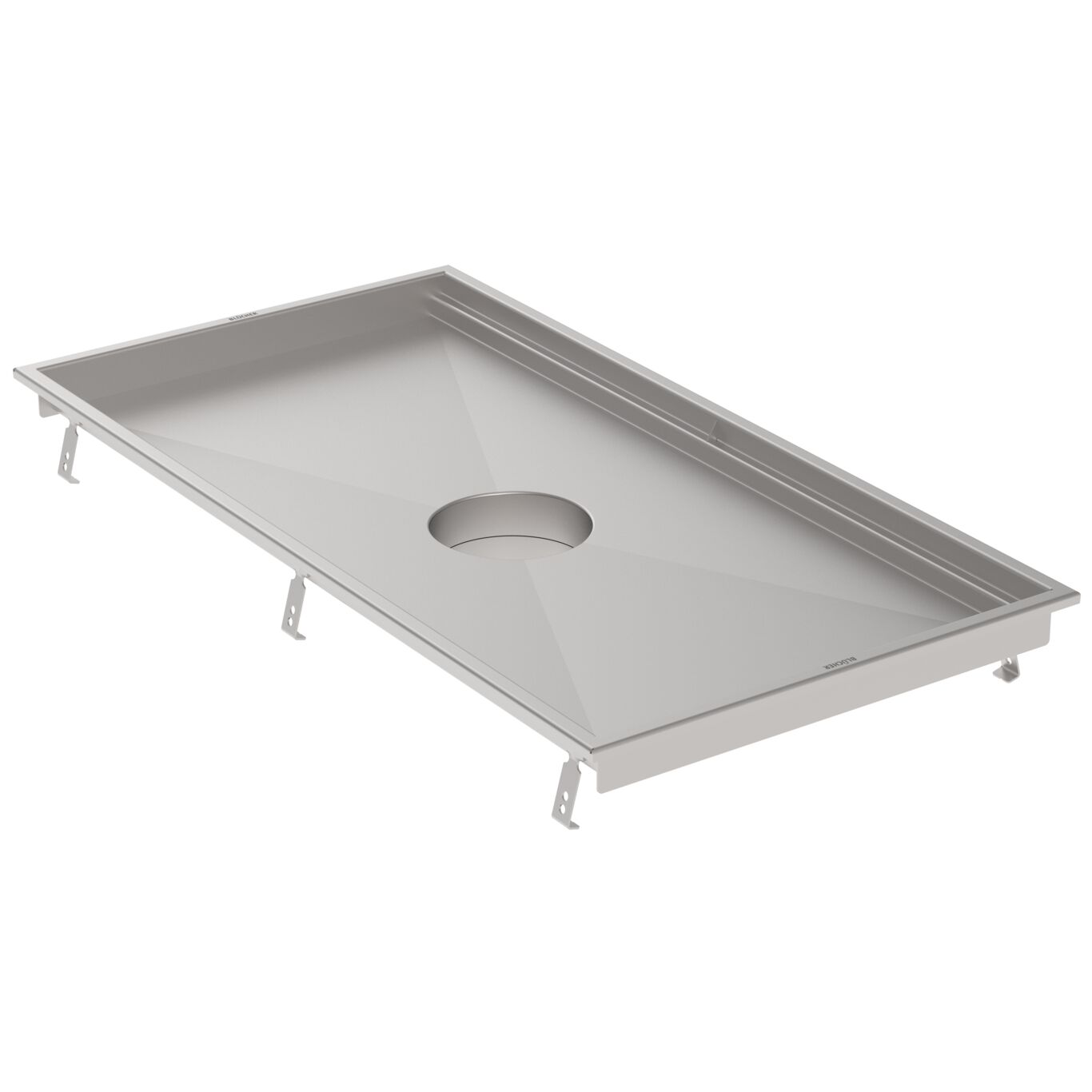

KITCHEN CHANNEL 500x1000 - (660GK010-06)
×
![]()
Part Of the Series: Kitchen channel-No membrane
Type no.: 660GK010-06
EAN no.: 5705499126372
Size: 500x1000
KITCHEN CHANNEL 500x1000
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø160mm, vertical
-Stainless steel: AISI304/EN1.4301

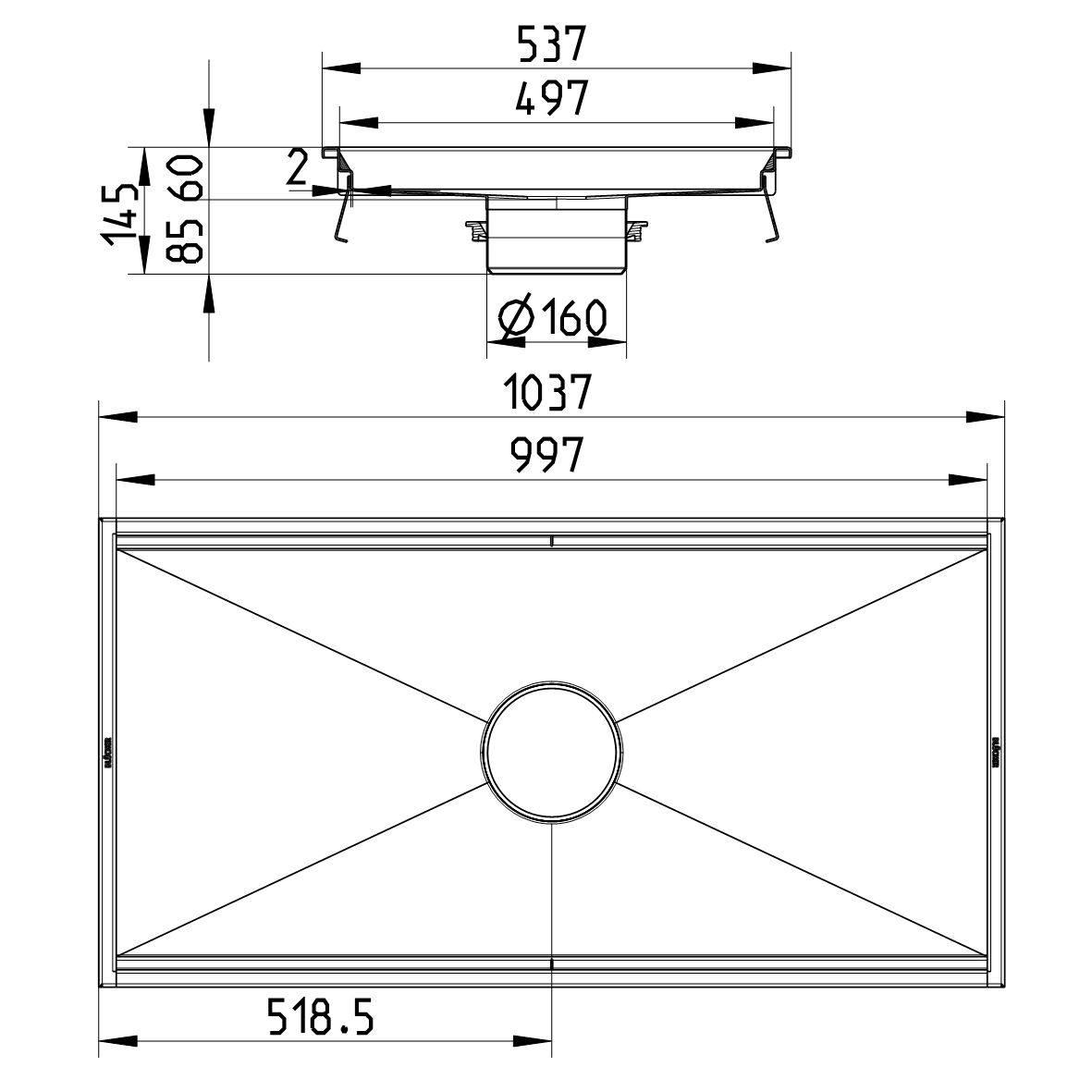

| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 145 |
| Outlet dia. (Inch) | 6 |
| Outlet Diameter (mm) | 160 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (Inch) | 19⅝x39⅜ |
| Size (mm) | 500x1000 |
| Weight (kg) | 12,03 |
| Weight (lbs) | 26,52 |
-
Downloads
-
Approvals and standards
For approvals and standards information, please refer to the below certificates.
TÜRK LOYDU - 25041616077231247
BLÜCHER® Channels EPD
NO - PS3079
HACCP Food Safety Programme - Australasia
AUS - WMKT00204 - 24 PL - Hygienic Certificate - All Products Declaration of Conformity - EN1253-001 Declaration of Conformity - BSEN1253-002 RINA -MAC320524XG EuroPipe KR - Type Approval CPH42135-PE001
